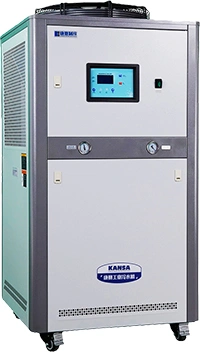

3.0-72.0kW Air-Cooled Water Chiller, Low-Temperature Process Chiller (Low Temperature -5°C)

3.0-72.0kW Air-Cooled Water Chiller (Low Temperature -5°C)
    1. Cooling Capacity

      Cooling Capacity: 3.0–72.0 kW

    1. Chilled Water Temperature Range

      Chilled Water Temperature Range: -5°C~25°C

    1. Temperature precision

      Temperature precision: ±0.1/±0.5/±1.5°C

    1. Compressor Brands

      Compressor Brands: Copeland, Panasonic, BITZER, Danfoss

    1. Refrigerants

      Refrigerants: R410A / R407C / R404A / R454 / R32, etc.

    1. Ambient Operating Temperature

      Ambient Operating Temperature: -10°C~50°C

The low-temperature air-cooled chiller is designed for industrial applications requiring coolant temperatures from −5°C to 25°C. Utilizing a refrigerant and a compressor, it delivers stable output of glycol–water solutions or other coolant media within this temperature range, meeting the demands of industrial cooling processes.

The low-temperature air-cooled chiller is widely used in chemical and pharmaceutical production, food freezing, low-temperature laser testing, and reactor cooling, serving as a core component in ensuring stable and reliable process performance.

Request a Quote
System Diagram
3.0-72.0kW Air-Cooled Water Chiller (Low Temperature -5°C)
  • Water filter
  • Chilled water inlet
  • Flow switch
  • Evaporator
  • Pressure gauge
  • Compressor
  • Cooling fan
  • Condenser
  • Pressure gauge
  • Dry filter
  • Expansion valve
  • Water supply
  • Water level sensor
  • Tank
  • Chilled water outlet
  • Pump
Features
  • Low-Temperature Coolant Supply at -5°C
    Designed for low-temperature industrial cooling, the chiller uses a glycol-water solution as the circulating coolant. It operates with a standard coolant outlet temperature of -5°C and a return temperature of 0°C, with a specified temperature control range of -25°C to 25°C. Standard temperature precision is ±1.5°C, with a customized ±0.1°C version available for applications requiring tighter control.
  • Low-Temperature Refrigeration System
    The refrigeration system incorporates low-temperature compressors, shell-and-tube evaporators, V-shaped finned condensers, and condenser fans, with scroll compressors used on applicable models. Piping and sealing components are selected according to the operating temperature and glycol concentration to suit specific cooling requirements.
    Multi-compressor models also support staged capacity control, allowing cooling output to be adjusted according to process demand.
  • Closed-Loop Cooling & Freeze Protection
    An insulated stainless steel tank supports closed-loop circulation of the glycol-based coolant. The system includes liquid-level monitoring and low-temperature safety interlocks to protect the cooling circuit. If low coolant levels, insufficient flow, or abnormal temperatures are detected, the controller automatically triggers an alarm or shuts down the unit.
  • PLC Control System
    The PLC control system features a color touchscreen for temperature trend monitoring and fault history recording. Modbus RS485 communication and equipment interlock interfaces support integration with external control systems.
    Built-in safety functions include high- and low-pressure protection, overcurrent protection, phase-loss protection, water-flow and liquid-level monitoring, freeze protection, and overtemperature protection.
  • Integrated Air-Cooled Design
    The integrated air-cooled system eliminates the need for a cooling tower or separate condenser-water circuit. Once the coolant piping and electrical connections are completed, the unit can be commissioned for operation.
    For installations with specific space or heat dissipation requirements, a customized split-system configuration is available, allowing the outdoor section to be installed outside the workshop.
Specifications
Model ICA-2M ICA-3M ICA-5M ICA-8M ICA-10M ICA-12M
Cooling capacity kW 3 4.5 7 11 15 18
10³ kcal/h 2.6 3.9 6 9.5 12.9 15.5
Power supply V/Ph/Hz 220/1/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50
Total power input kW 2 2.9 5 7.8 9.6 11.2
Rated current A 11 7.2 10.8 15 18 25
Compressor Type Rotor type Rotor type Scroll type Scroll type Scroll type Scroll type
Power kW 1.5 2.3 3.9 6.2 8 9
Water pump Power kW 0.37 0.37 0.55 0.75 0.75 1.2
Pump head m 26 25 30 25 22 29
Water flow rate m³/h 0.52 0.78 1.2 1.9 2.6 3.1
L/min 8.7 13 20 31.7 43.3 51.7
Water tank capacity L 40 60 70 100 135 135
Pipe connection size DN 20 25 25 25 40 40
Noise level dB(A) 58 60 61 64 65 66
Weight kg 108 140 185 260 310 320
Dimensions Length mm 600 680 750 1350 1510 1510
Width mm 600 680 750 680 750 750
Height mm 1160 1360 1480 1360 1480 1480
Model ICA-15M ICA-20M ICA-25M ICA-30M ICA-40M ICA-50M
Cooling capacity kW 23 30 36 46 60 72
10³ kcal/h 19.8 25.8 30.1 39.6 51.6 61.9
Power supply V/Ph/Hz 380/3/50
Total power input kW 14 19.8 21.8 27.5 36.5 42.5
Rated current A 30.5 45 49 62 79 91
Compressor Type Scroll type
Power kW 11.5 16 18 23 32 36
Water pump Power kW 1.2 2.2 2.2 2.2 3 3
Pump head m 27 27 26 25 34 29
Water flow rate m³/h 4 5.2 6.2 7.9 10.3 12.5
L/min 66.7 86.7 103.3 131.7 171.7 208.3
Water tank capacity L 155 230 230 230 300 300
Pipe connection size DN 40 50 50 50 50 65
Noise level dB(A) 66 68 68 69 69 69
Weight kg 415 620 670 780 1100 1300
Dimensions Length mm 1785 2080 2080 2080 2200 3000
Width mm 915 1050 1050 1050 1200 1200
Height mm 1630 1720 1720 1910 2135 2120

Customized specifications are available upon request. Please Contact Us for details.

Components and Processing
    1. Branded compressors
      Branded compressors
    1. Automated vacuum and refrigerant charging system
      Automated vacuum and refrigerant charging system
    1. 3D CNC pipe bending machine
      3D CNC pipe bending machine
    1. Automated welding system
      Automated welding system

With over 20 years of experience in the industrial cooling industry, KANSA designs and manufactures a variety of industrial chillers and process temperature control equipment in-house to ensure consistent quality, reliable operation and exceptional temperature stability of ±0.05°C. The company holds CE, ISO9001-2016, ISO45001 and other international certifications, serving more than 70,000 customers worldwide.
