1.6-168kW Air-Cooled Water Chiller

1.6-168kW Air-Cooled Water Chiller
    1. Cooling Capacity

      Cooling Capacity: 1.6~168.0kW

    1. Chilled Water Temperature Range

      Chilled Water Temperature Range: 7–25°C

    1. Temperature precision

      Temperature precision: ±0.1/±0.5/±1.5°C

    1. Compressor Brands

      Compressor Brands: Copeland, Panasonic, BITZER, Danfoss

    1. Refrigerants

      Refrigerants: R410A / R407C / R404A / R454 / R32, etc

    1. Ambient Operating Temperature

      Ambient Operating Temperature: -10°C~50°C

The Air-Cooled Water Chiller uses ambient air as its cooling source, eliminating the need for a cooling tower or dedicated machine room. It features simple installation, compact structure, and efficient use of space and water resources. The chiller operates with stable performance and precise temperature control, making it widely applicable in temperature regulation for injection molding, chemical processing, laser manufacturing, and food processing industries.

Request a Quote
System Diagram
1.6-168kW Air-Cooled Water Chiller
  • Water filter
  • Chilled water inlet
  • Flow switch
  • Evaporator
  • Pressure gauge
  • Compressor
  • Cooling fan
  • Condenser
  • Pressure gauge
  • Dry filter
  • Expansion valve
  • Water supply
  • Water level sensor
  • Tank
  • Chilled water outlet
  • Pump
Working Principle

The air-cooled water chiller operates through a continuous vapor-compression refrigeration cycle. The compressor draws low-temperature, low-pressure refrigerant vapor from the evaporator and compresses it into a high-temperature, high-pressure gas. The refrigerant then enters the air-cooled condenser, where it releases heat to the surrounding air and condenses into a high-pressure liquid.
After passing through the expansion valve, the refrigerant's pressure and temperature drop before it enters the evaporator. There, it absorbs heat from the circulating water and evaporates, cooling the water to the required process temperature. A pump delivers the chilled water to the connected equipment, while the refrigerant vapor returns to the compressor to repeat the cycle.

Component Configuration
Compressor
Compressor

KANSA uses compressors from established manufacturers such as Copeland, Panasonic, and BITZER to support reliable refrigeration performance.

Air-Cooled Condenser
Air-Cooled Condenser

KANSA manufactures its own finned-tube air-cooled condensers, featuring internally grooved copper tubes and hydrophilic aluminum fins for efficient heat transfer and stable operation. The internal grooves increase the refrigerant-side heat transfer surface area.

Evaporator
Evaporator

KANSA's in-house 304 stainless steel evaporator offers corrosion resistance for compatible industrial operating conditions, including applications involving certain acidic or alkaline media. Its construction helps resist scaling and leakage while providing stable heat transfer and reliable sealing under pressure
The stainless steel design also facilitates cleaning and maintenance, supporting longer service life across a range of industrial applications.

Expansion Valve
Expansion Valve

The chiller uses an Emerson expansion valve for precise refrigerant flow control across varying operating conditions. This helps maintain stable system operation, protect the compressor, and improve overall heat exchange efficiency.

Filter Drier
Filter Drier

An Emerson filter drier removes moisture and contaminants from the refrigerant circuit, helping prevent ice formation and blockages while maintaining clean, reliable refrigeration system operation

Electrical Control Components
Electrical Control Components

The chiller's electrical control system incorporates key components including a controller, circuit breakers, AC contactors, thermal overload relays, and phase-sequence protection devices.

Specifications Model
Model ICA-0.6 ICA-1 ICA-2 ICA-3 ICA-5 ICA-6 ICA-8 ICA-10
Cooling capacity kW 1.6 2.7 5.2 9.1 15 18 23 29.5
10³ kcal/h 1.4 2.3 4.5 7.8 12.9 15.5 19.8 25.4
Power supply V/Ph/Hz 220/1/50 380/3/50
Total power input kW 0.9 1.2 2.2 2.9 5.3 6.5 8.4 10.5
Rated current A 4.6 5.9 11.3 8.2 11.7 12.2 20 23.4
Compressor Type Rotor type Scroll type
Power kW 0.5 0.8 1.6 2.3 4.2 5.1 6.9 8.7
Water pump Power kW 0.25 0.25 0.37 0.37 0.55 0.75 0.75 0.75
Pump head m 36 34 26 24 28 33 30 27
Water flow rate m³/h 0.28 0.46 0.89 1.6 2.6 3.1 4 5.1
L/min 4.6 7.7 14.8 26.7 43.3 51.7 66 85
Water tank capacity L 12 20 35 60 70 70 100 135
Pipe connection size DN 15 20 25 40
Safety protection High/low pressure, overload, anti-freeze, delay, over-temperature and flow protection
Noise level dB(A) 56 58 58 60 61 62 64 65
Weight kg 50 68 108 140 185 210 260 310

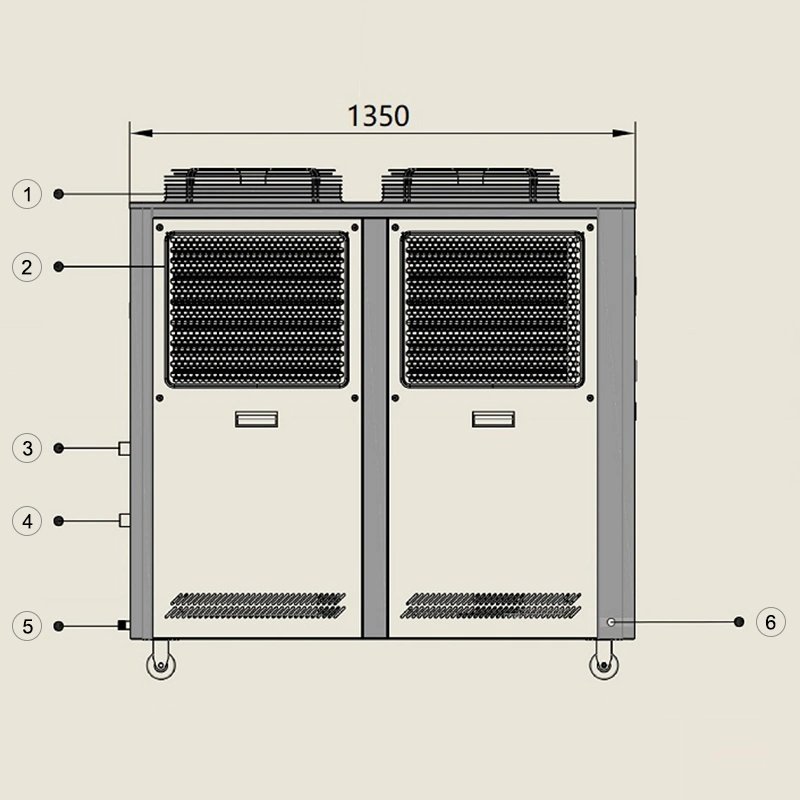

Dimensions Length mm 420 500 600 680 750 750 1350 1510
Width mm 420 500 600 680 750 750 680 750
Height mm 815 950 1160 1360 1480 1480 1360 1480
Model ICA-12 ICA-15 ICA-20 ICA-25 ICA-30 ICA-40 ICA-50 ICA-60
Cooling capacity kW 35 44 58.5 69 86 116 140 168
10³ kcal/h 30.1 37.8 50.3 59.3 74.1 100 120 145
Power supply V/Ph/Hz 380/3/50
Total power input kW 12.5 15 21.1 24 30 41.3 48 58.5
Rated current A 24 27.7 41.7 46.7 57 76 88 110
Compressor Type Scroll type
Power kW 10.1 12.5 17.4 20.2 25 34.8 40.6 50
Water pump Power kW 1.2 1.2 2.2 2.2 2.2 3.5 3.5 4
Pump head m 29 27 27 26 25 34 29 25
Water flow rate m³/h 6 7.6 10 11.8 14.8 20 24 28.9
L/min 100 127 167 197 247 333 400 480
Water tank capacity L 135 155 230 230 230 300 300 300
Pipe connection size DN 40 50 65
Safety protection High/low pressure, overload, anti-freeze, delay, over-temperature and flow protection
Noise level dB(A) 65 66 67 68 68 69 69 69
Weight kg 340 415 620 670 780 1100 1300 1500
Dimensions Length mm 1510 1785 2080 2080 2080 2200 3000 3400
Width mm 750 915 1050 1050 1050 1200 1200 1200
Height mm 1480 1630 1820 1820 1910 2135 2120 2135

Customized specifications are available upon request. Please Contact Us for details.

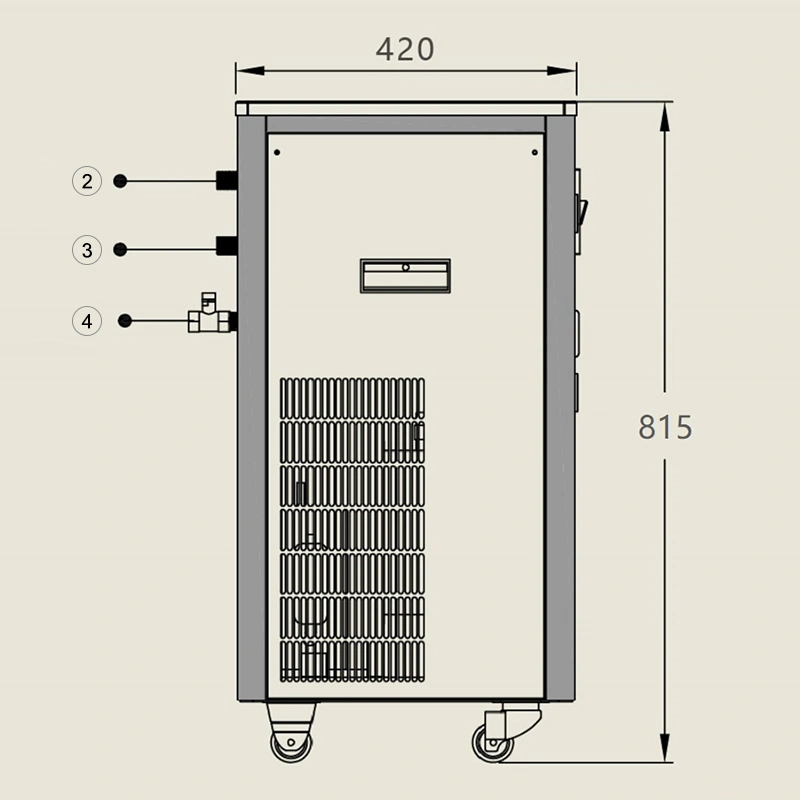

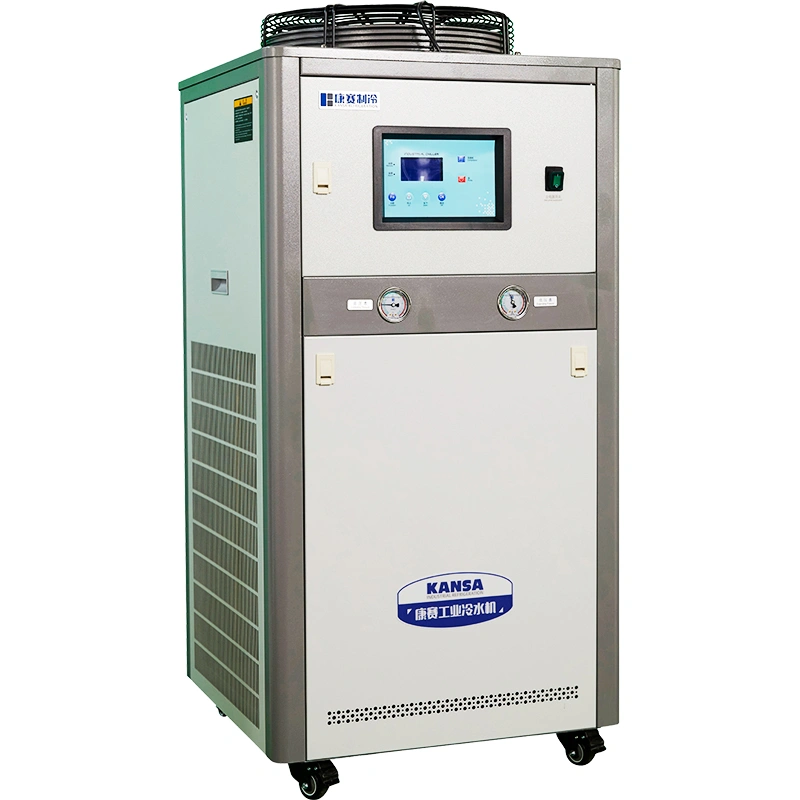

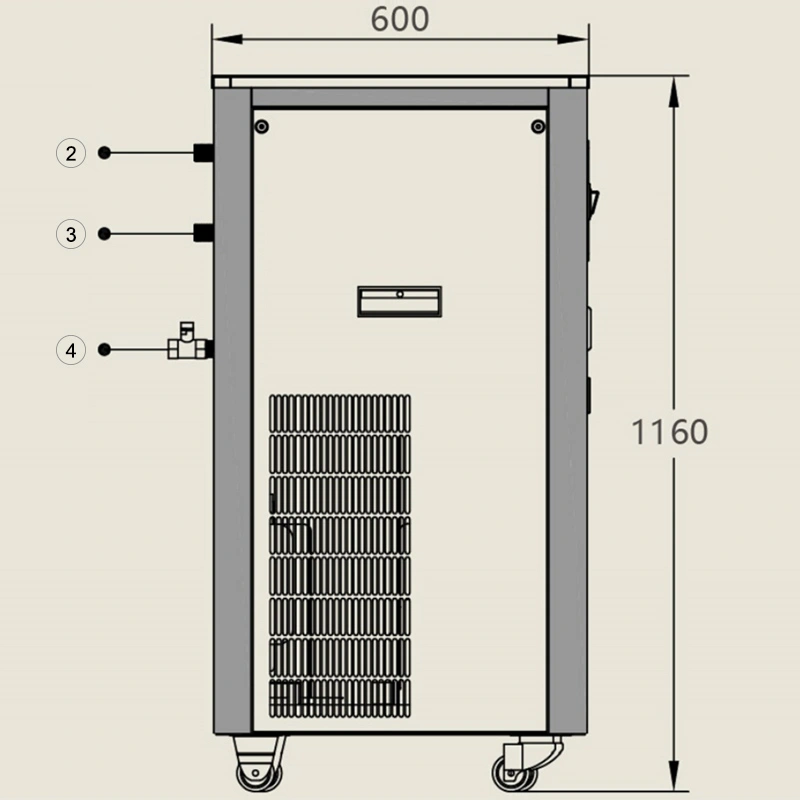

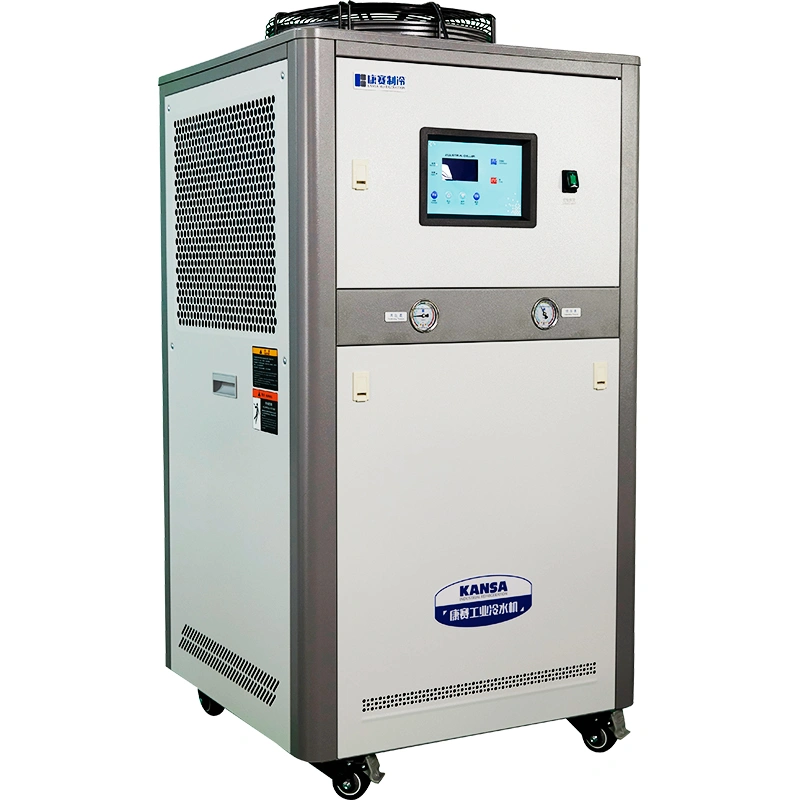

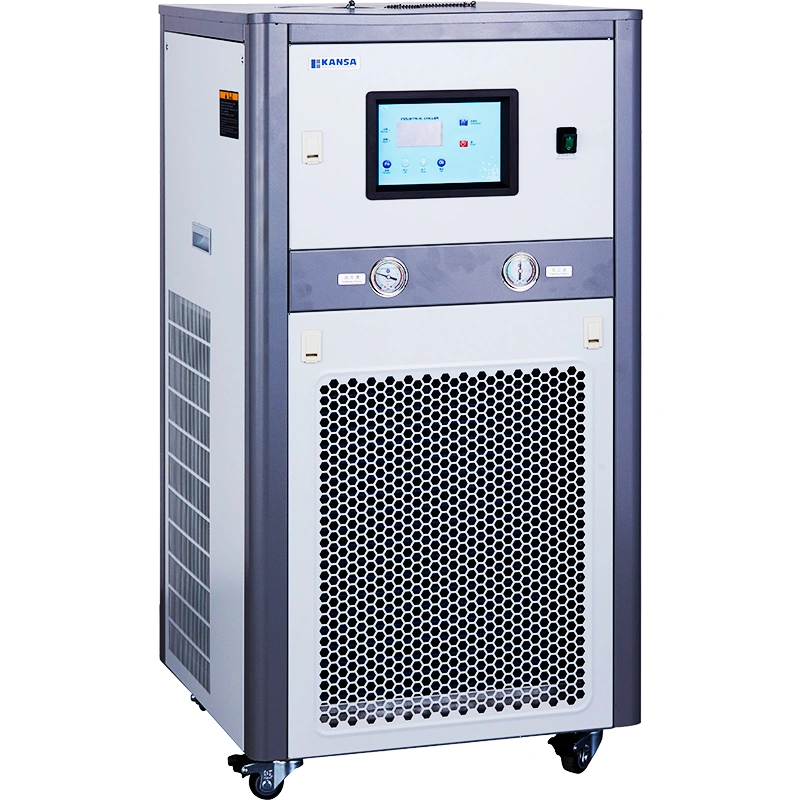

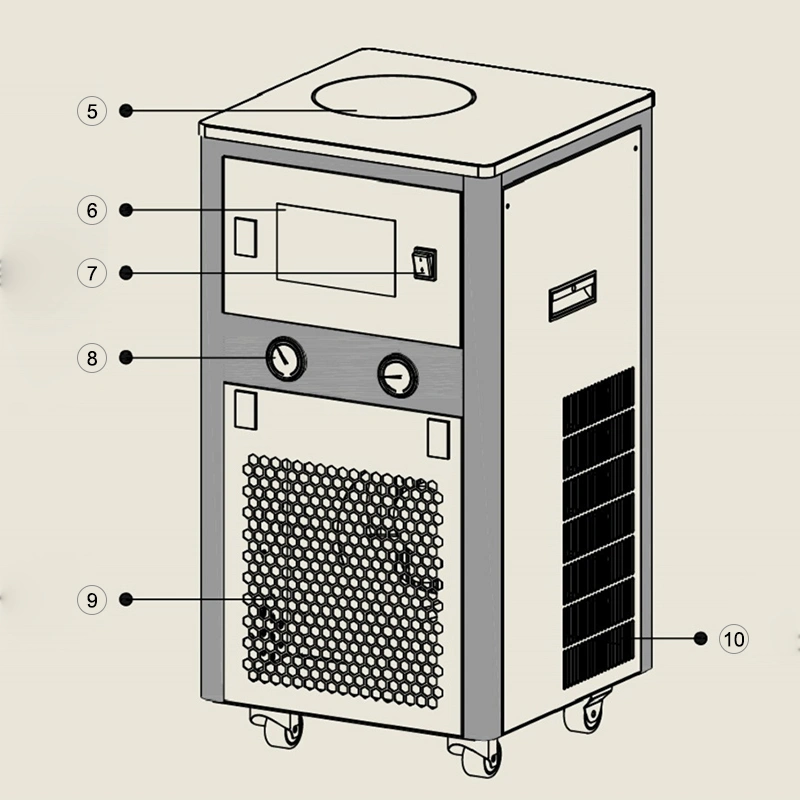

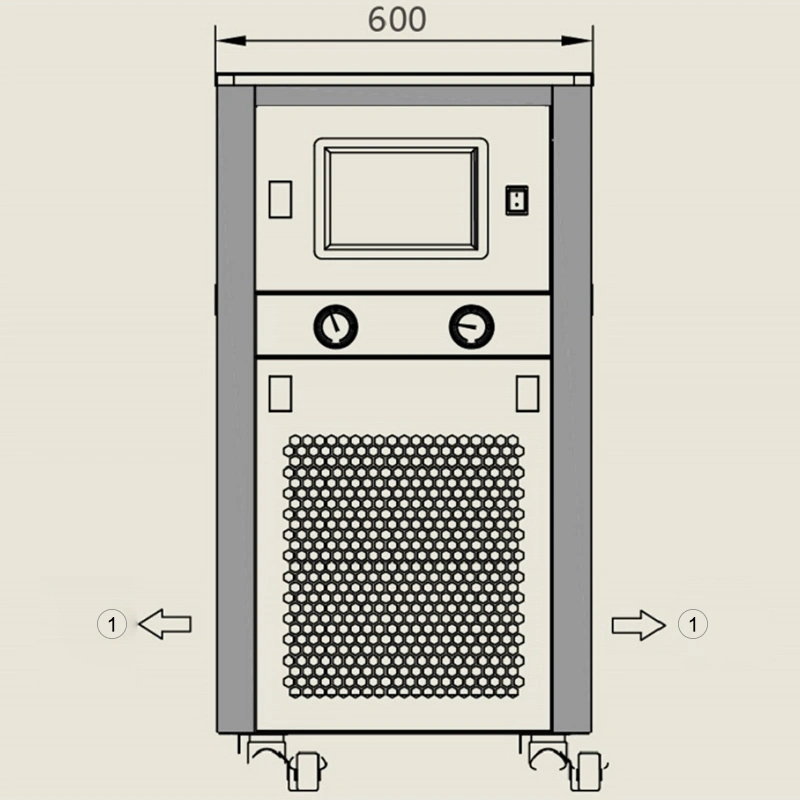

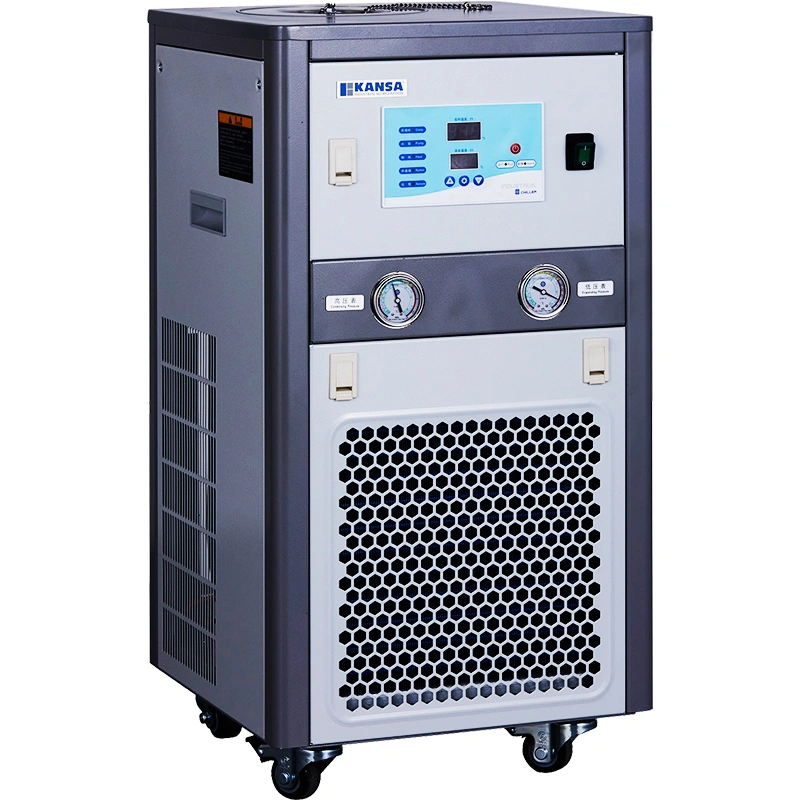

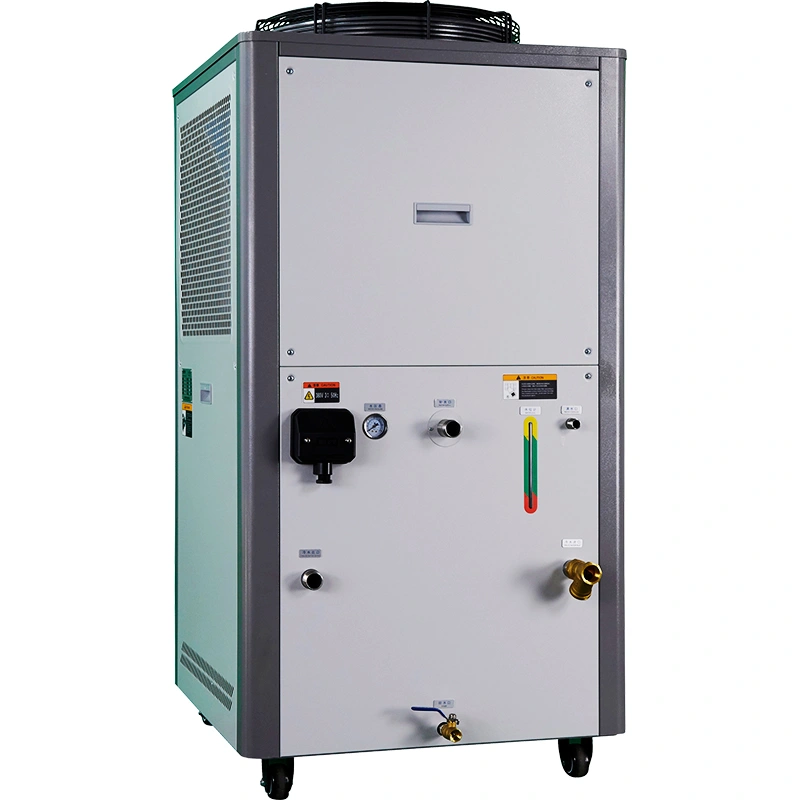

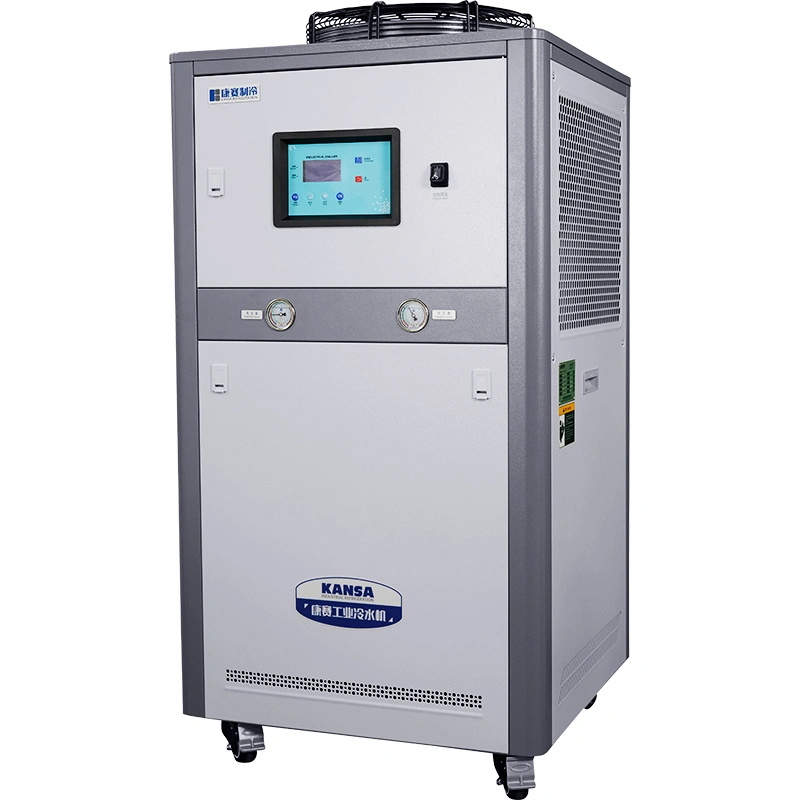

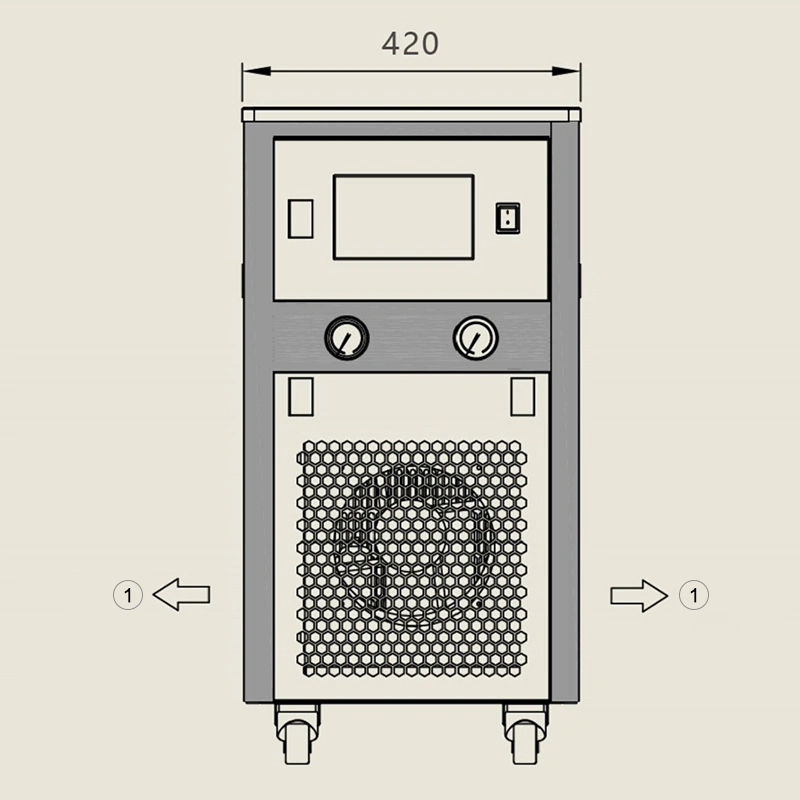

1.6kW Air-Cooled Water Chiller, ICA-0.6
  • 1.6kW Air-Cooled Water Chiller, ICA-0.6
  • 1.6kW Air-Cooled Water Chiller, ICA-0.6
  • 1.6kW Air-Cooled Water Chiller, ICA-0.6
  • 1.6kW Air-Cooled Water Chiller, ICA-0.6
1.6kW Air-Cooled Water Chiller, ICA-0.6
  • Cooling capacity: 1.6kW
  • Total power input: 0.8kW
  • Evaporator: stainless steel coil type
  • Pump head: 36m
  • Water flow rate: 0.28m³/h
  • Water tank capacity: 12L
  • Pipe connection size: 15DN

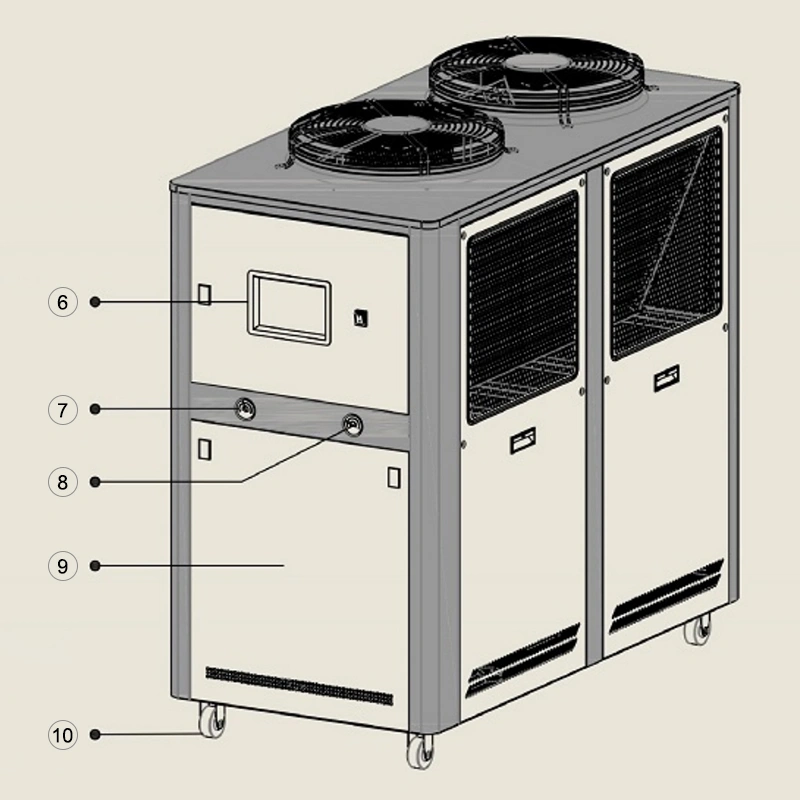

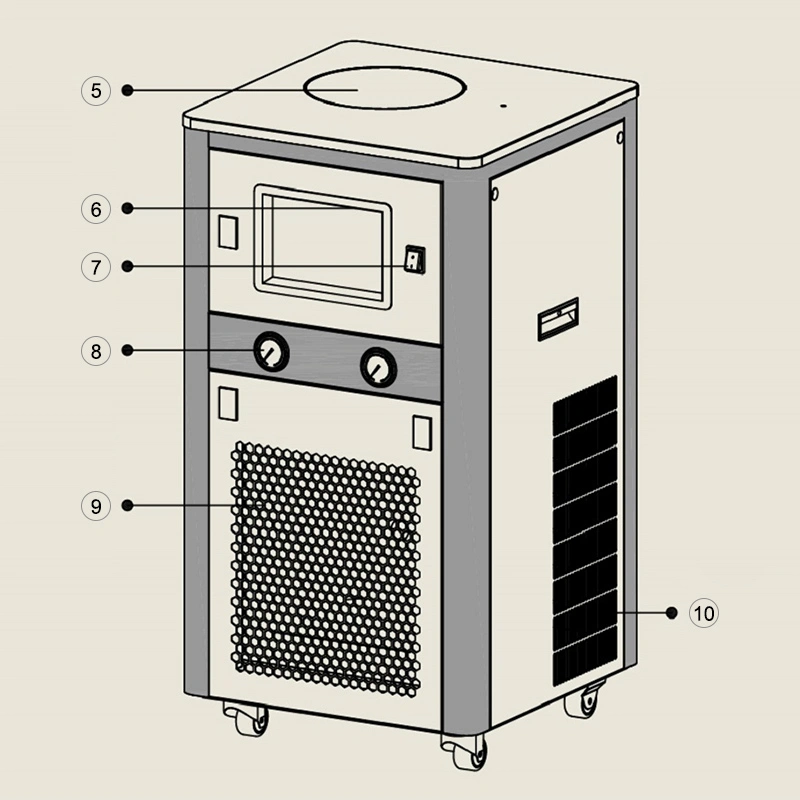

  • Air outlet
  • Chilled water inlet
  • Chilled water outlet
  • Drain port
  • Water filling port
  • Control panel
  • Power switch
  • Pressure gauge
  • Condenser air inlet
  • Condenser air outlet
Inquiry

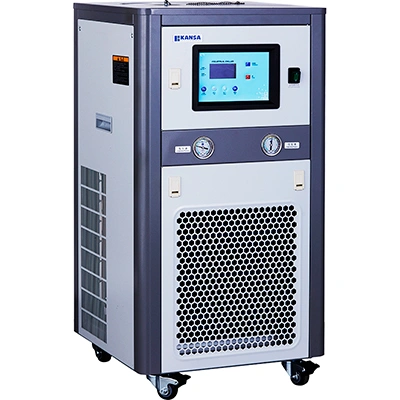

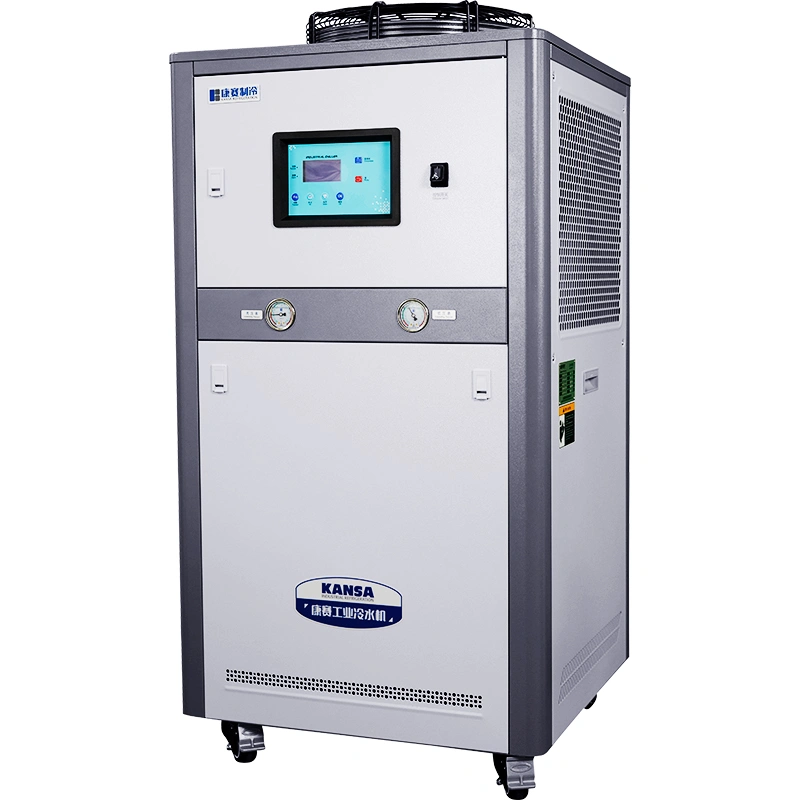

2.7kW Air-Cooled Water Chiller, ICA-1
2.7kW Air-Cooled Water Chiller, ICA-1
  • Cooling capacity: 2.7kW
  • Total power input: 1.1kW
  • Evaporator: stainless steel coil type
  • Pump head: 34m
  • Water flow rate: 0.46m³/h
  • Water tank capacity: 20L
  • Pipe connection size: 15DN
Inquiry

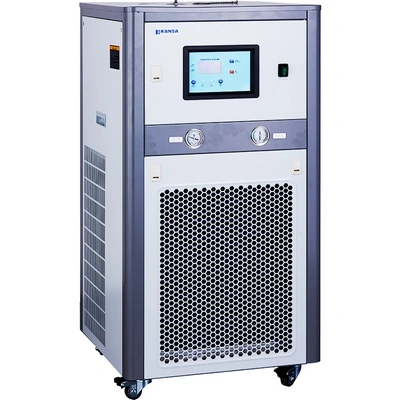

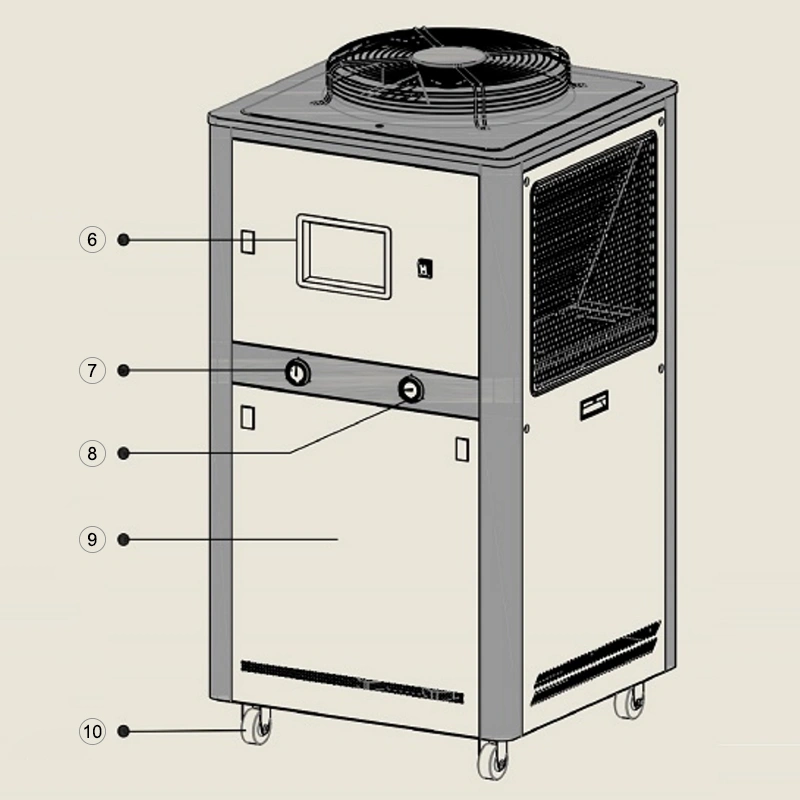

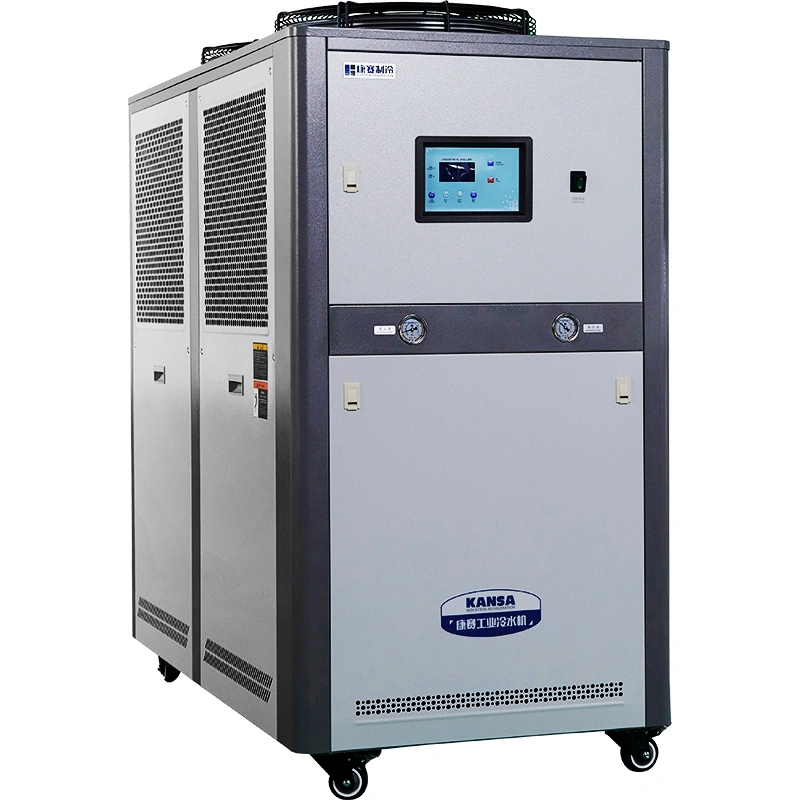

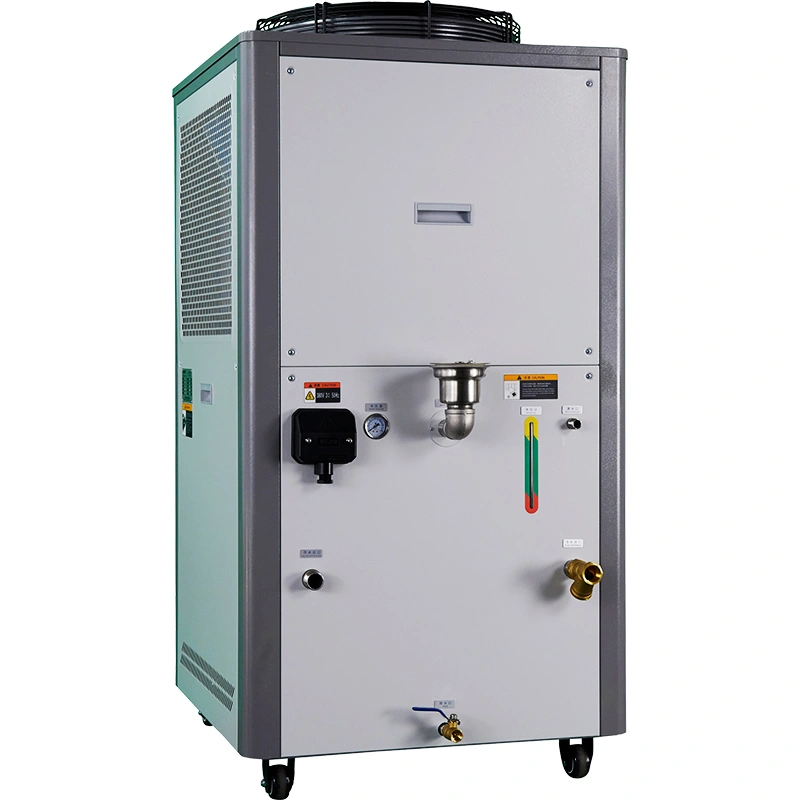

5.2kW Air-Cooled Water Chiller, ICA-2
  • 5.2kW Air-Cooled Water Chiller, ICA-2
  • 5.2kW Air-Cooled Water Chiller, ICA-2
  • 5.2kW Air-Cooled Water Chiller, ICA-2
  • 5.2kW Air-Cooled Water Chiller, ICA-2
  • 5.2kW Air-Cooled Water Chiller, ICA-2
5.2kW Air-Cooled Water Chiller, ICA-2
  • Cooling capacity: 5.2kW
  • Total power input: 2.2kW
  • Evaporator: stainless steel coil type
  • Pump head: 26m
  • Water flow rate: 0.89m³/h
  • Water tank capacity: 35L
  • Pipe connection size: 20DN

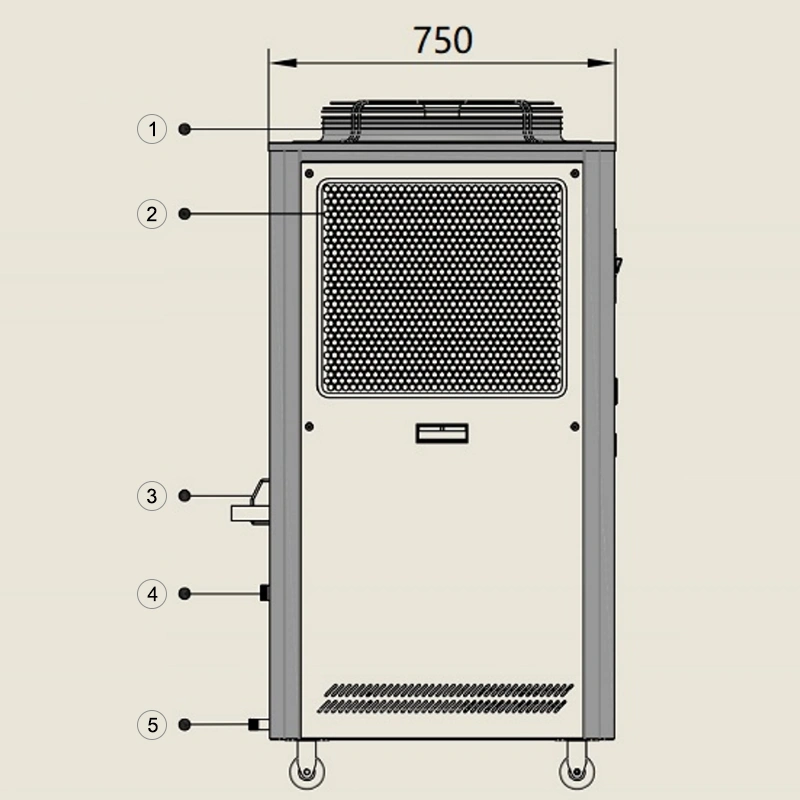

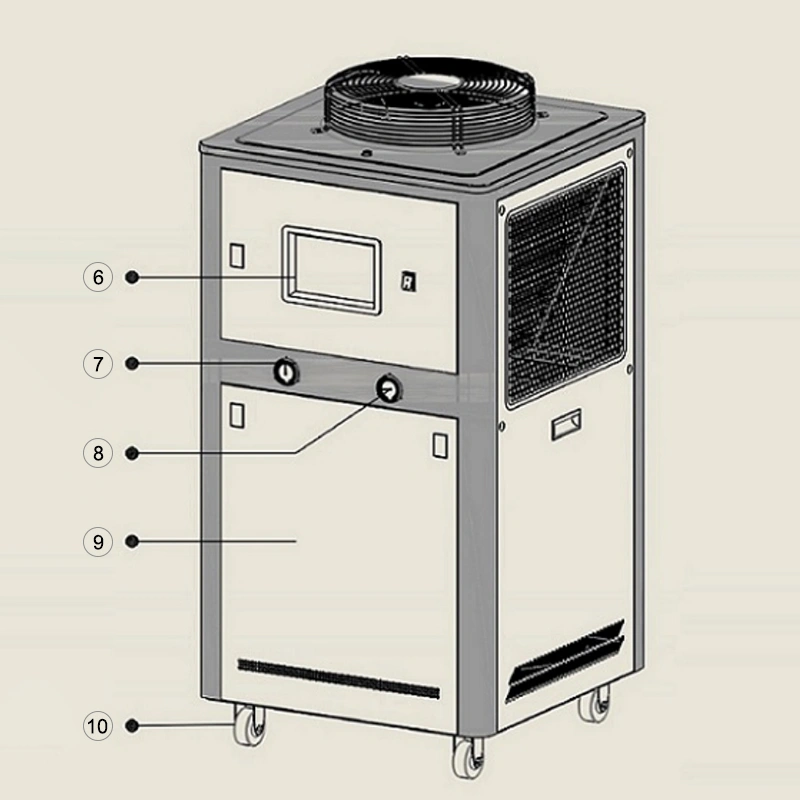

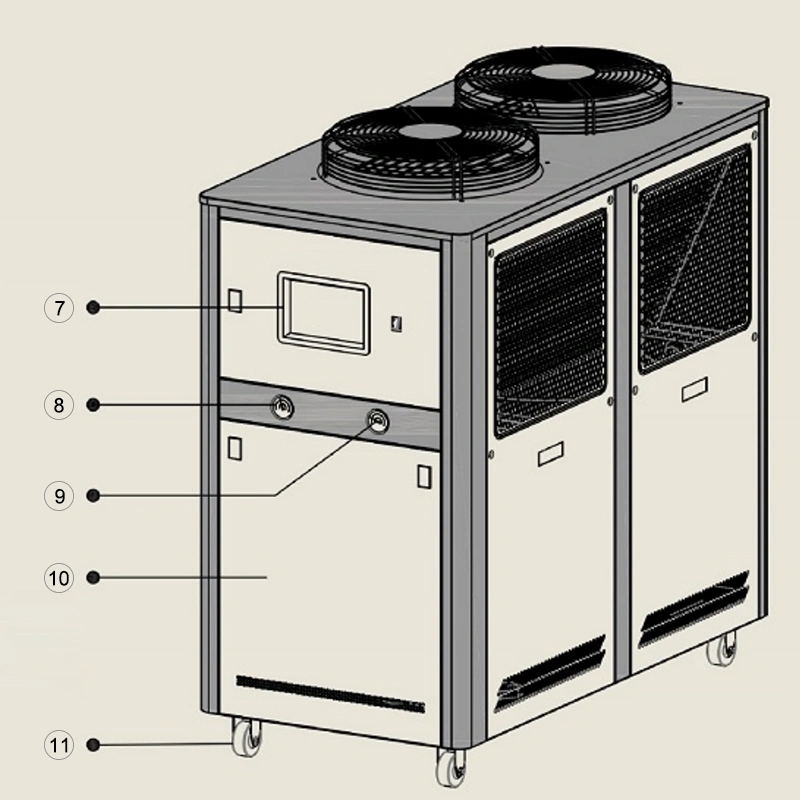

  • Air outlet
  • Chilled water inlet
  • Chilled water outlet
  • Drain port
  • Water filling port
  • Control panel
  • Power switch
  • Pressure gauge
  • Condenser air inlet
  • Condenser air outlet
Inquiry

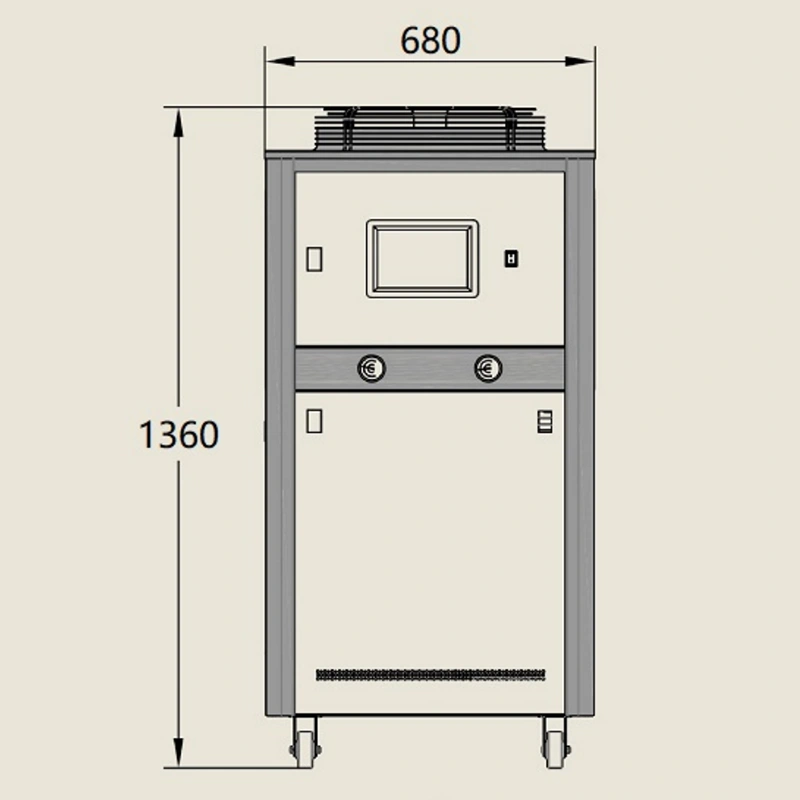

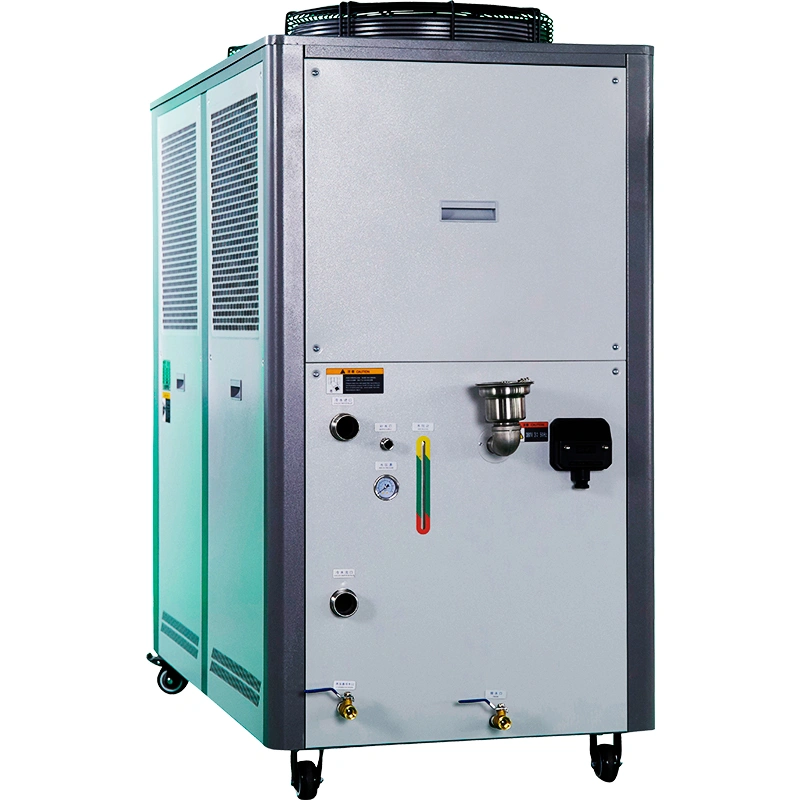

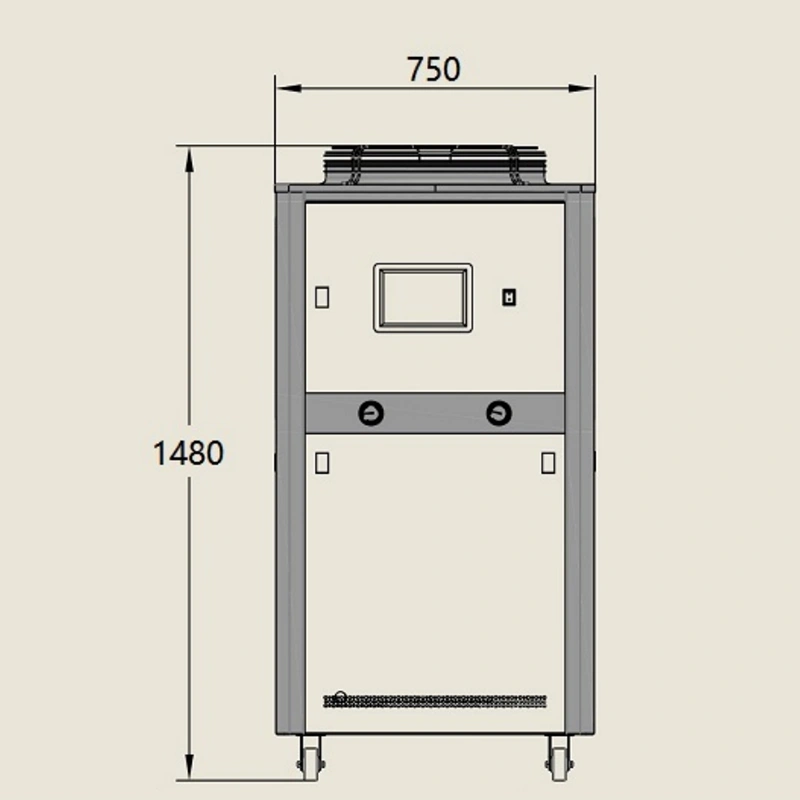

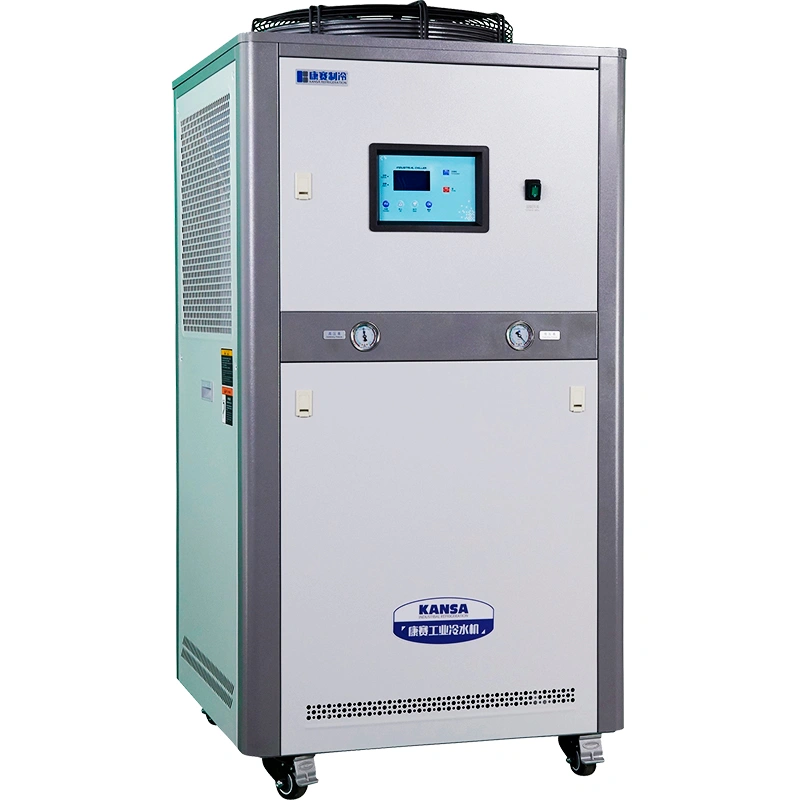

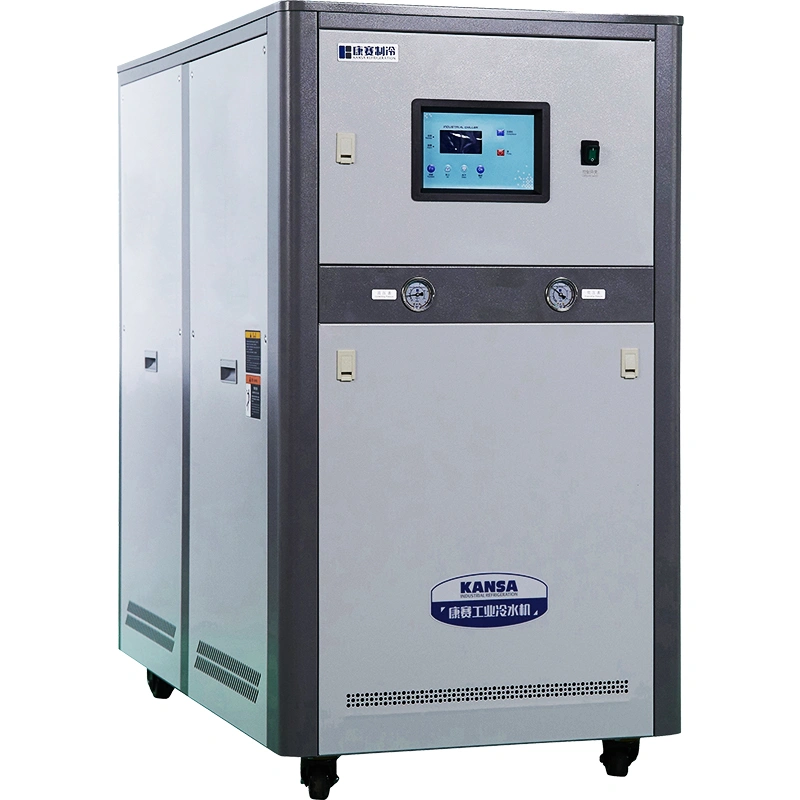

9.1kW Air-Cooled Water Chiller, ICA-3
  • 9.1kW Air-Cooled Water Chiller, ICA-3
  • 9.1kW Air-Cooled Water Chiller, ICA-3
  • 9.1kW Air-Cooled Water Chiller, ICA-3
  • 9.1kW Air-Cooled Water Chiller, ICA-3
  • 9.1kW Air-Cooled Water Chiller, ICA-3
9.1kW Air-Cooled Water Chiller, ICA-3
  • Cooling capacity: 9.1kW
  • Total power input: 2.9kW
  • Evaporator: stainless steel coil type
  • Pump head: 24m
  • Water flow rate: 1.6m³/h
  • Water tank capacity: 60L
  • Pipe connection size: 25DN

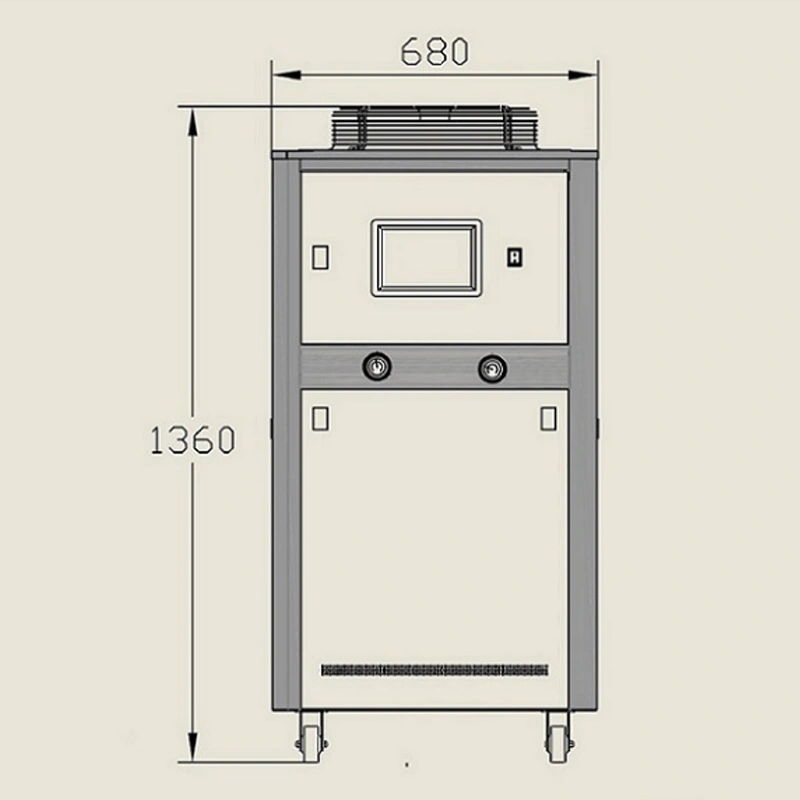

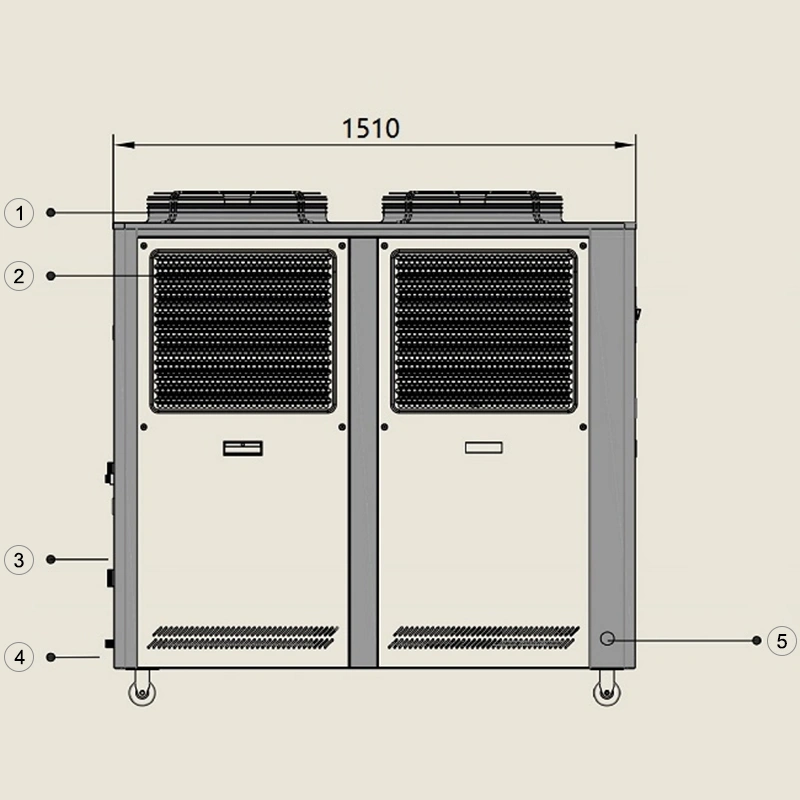

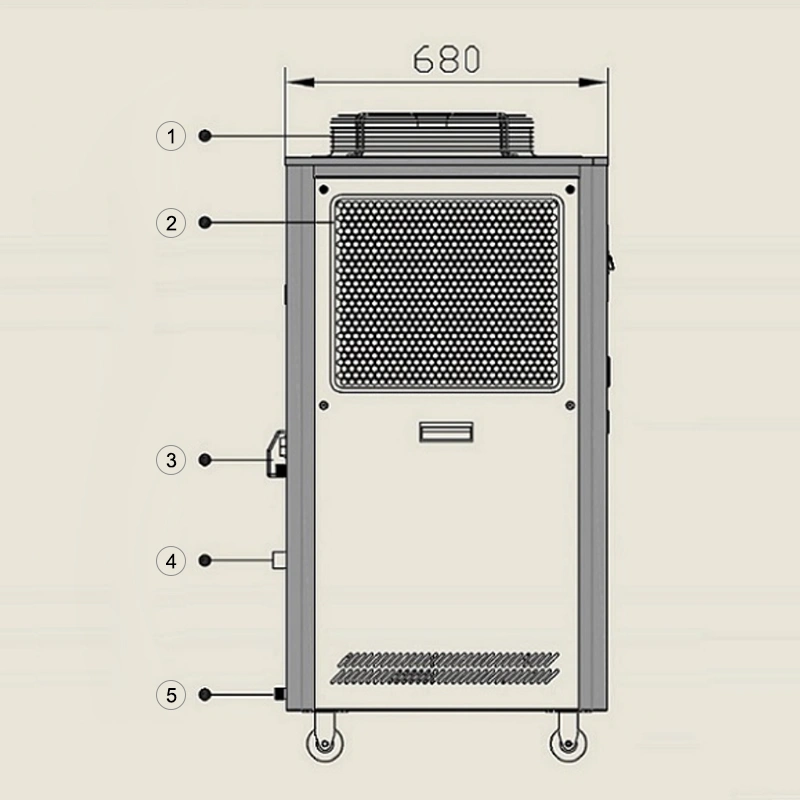

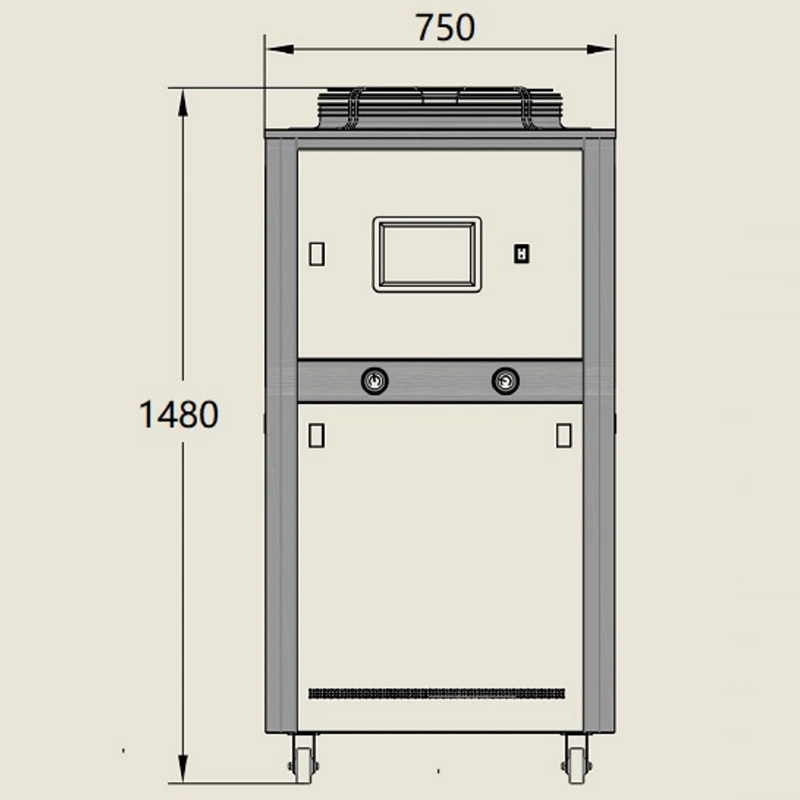

  • Cooling fan
  • Air inlet grille
  • Terminal box
  • Chilled water inlet/outlet
  • Drain port
  • Control panel
  • High-pressure gauge
  • Low-pressure gauge
  • Service access door
  • Caster wheels
Inquiry

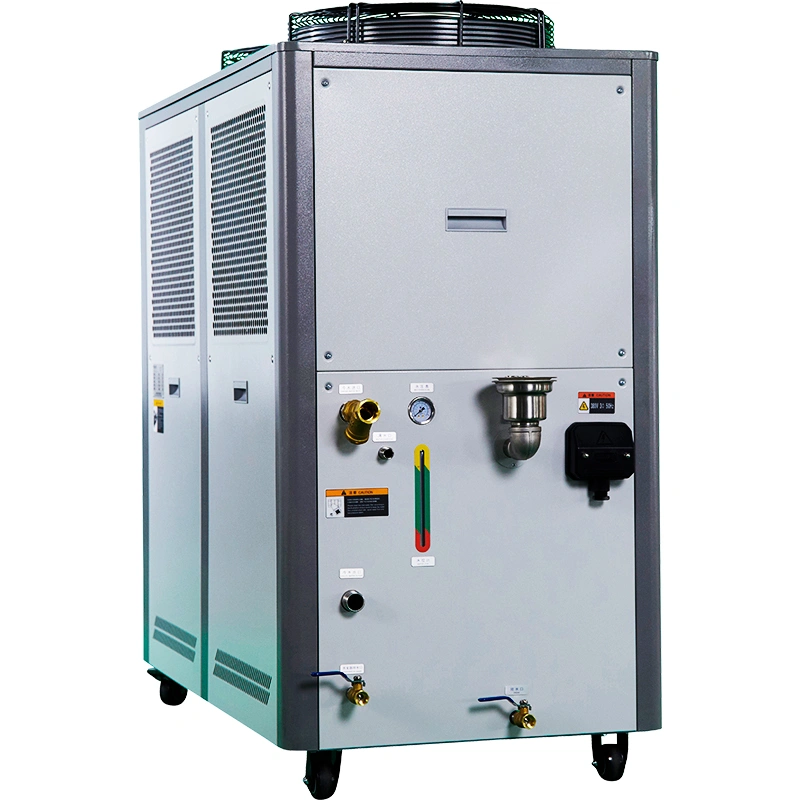

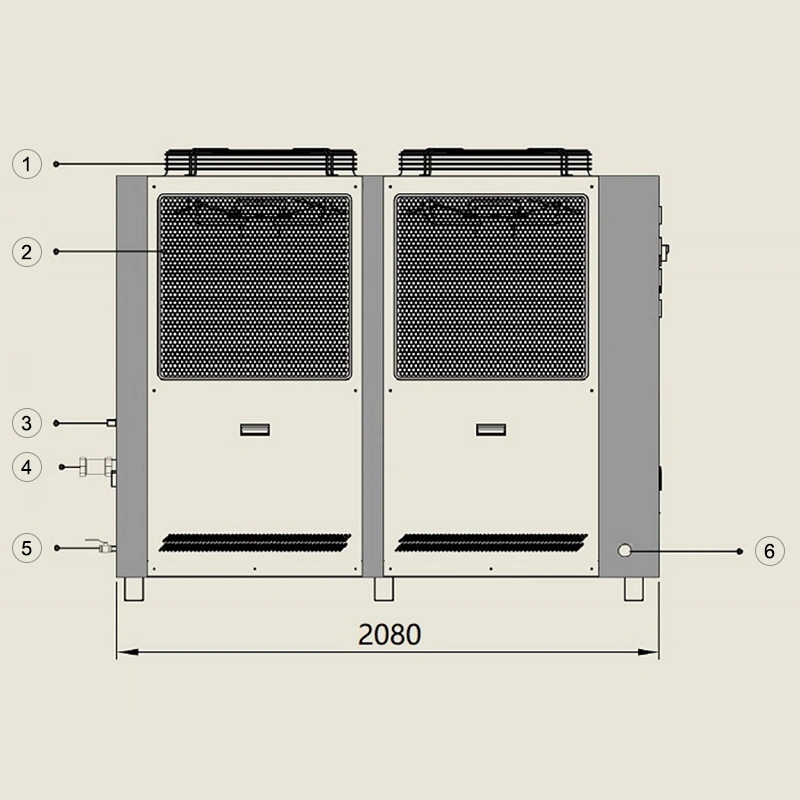

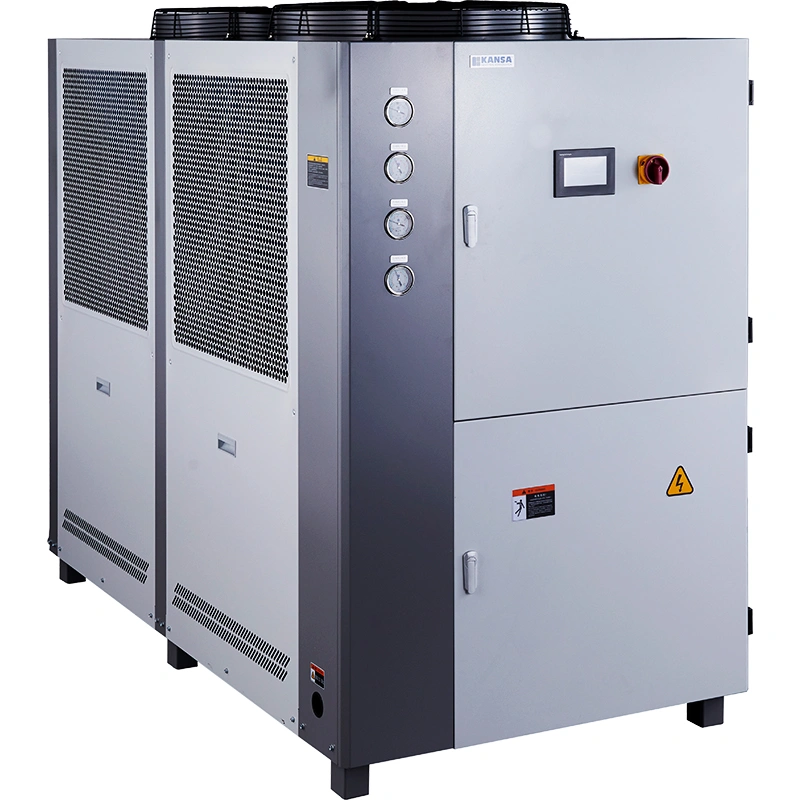

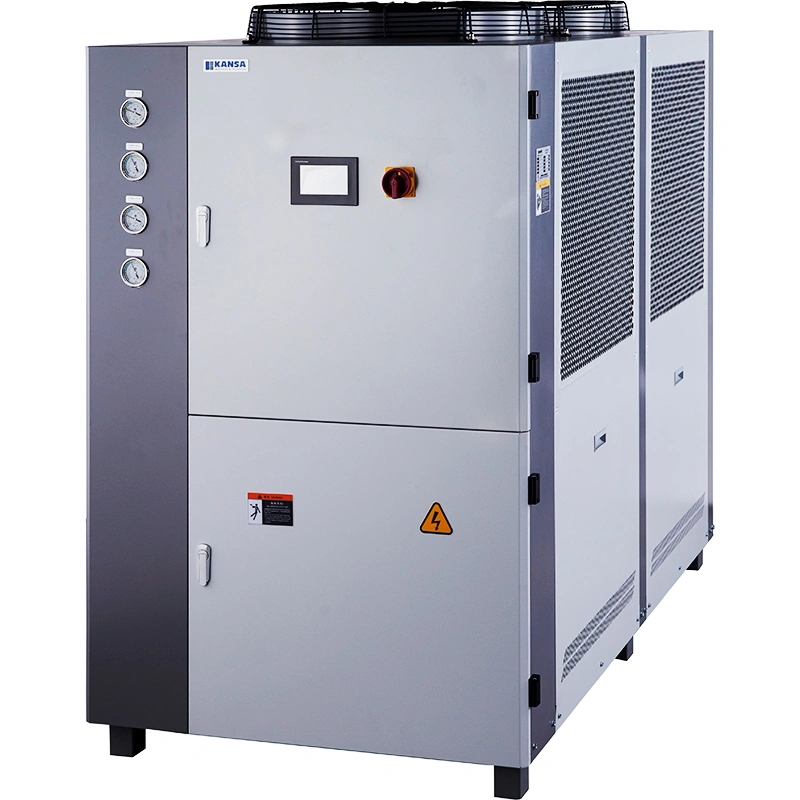

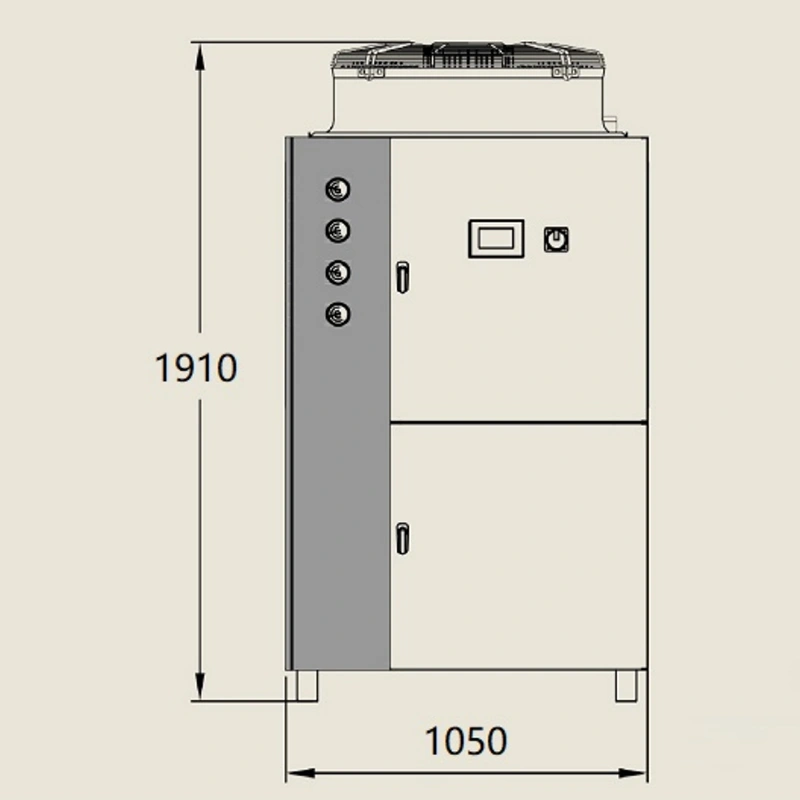

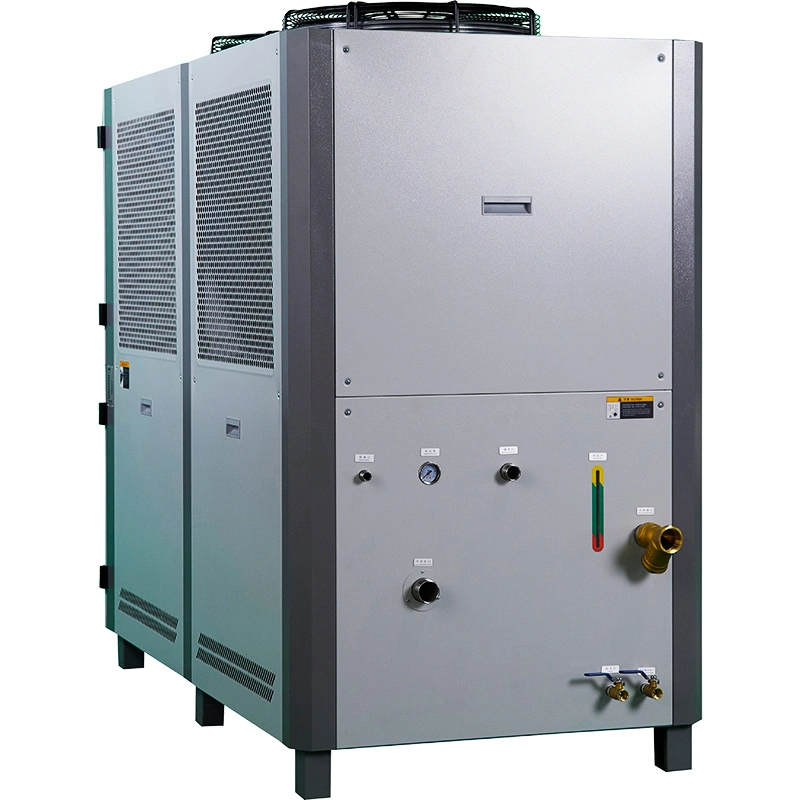

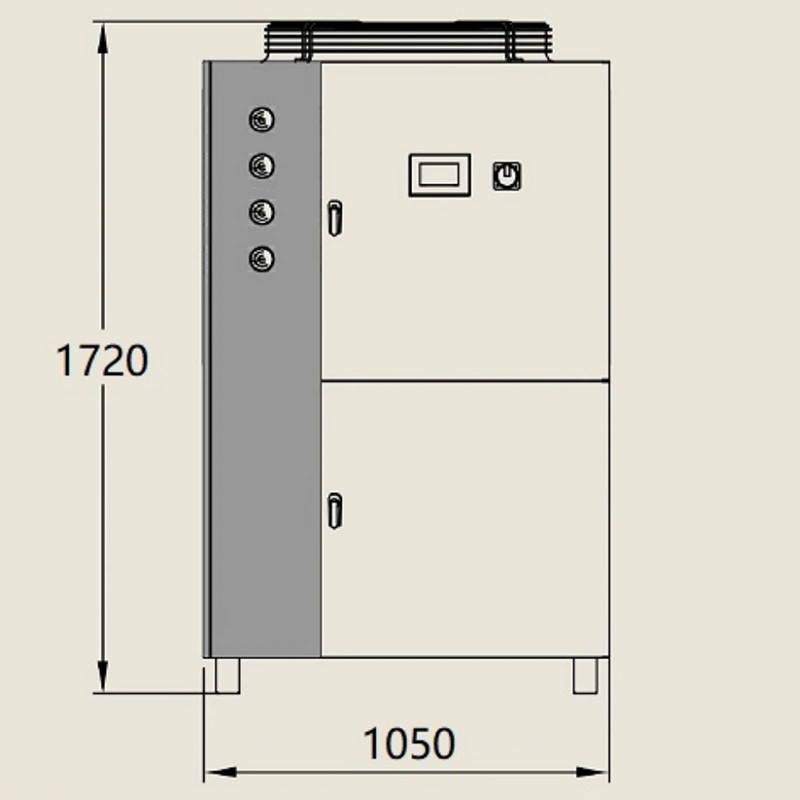

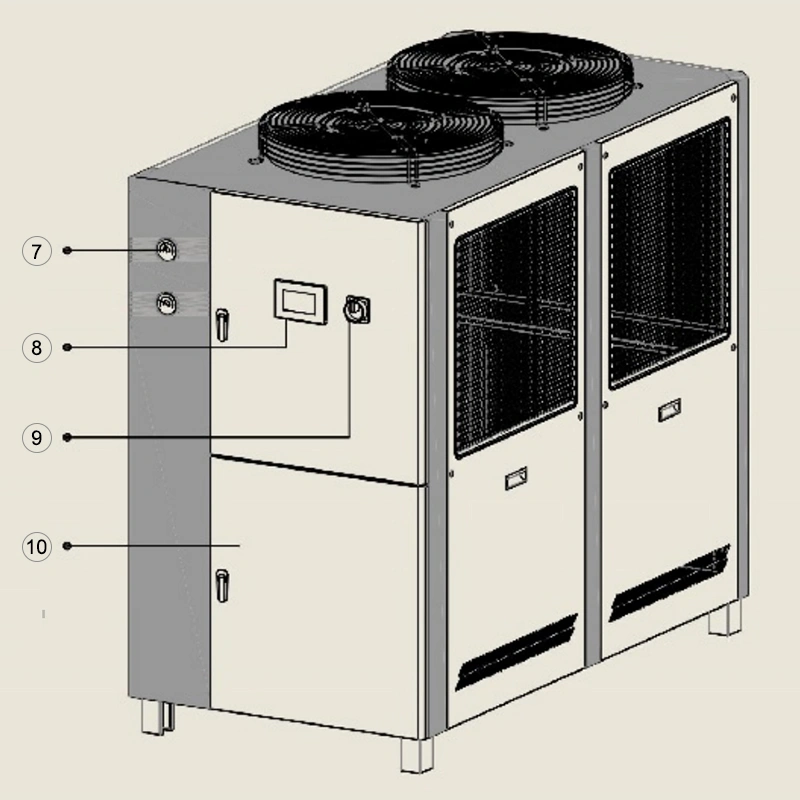

86.0kW Air-Cooled Water Chiller, ICA-30
  • 86.0kW Air-Cooled Water Chiller, ICA-30
  • 86.0kW Air-Cooled Water Chiller, ICA-30
  • 86.0kW Air-Cooled Water Chiller, ICA-30
  • 86.0kW Air-Cooled Water Chiller, ICA-30
86.0kW Air-Cooled Water Chiller, ICA-30
  • Cooling capacity: 86.0kW
  • Total power input: 30.0kW
  • Evaporator: shell-and-tube type (stainless steel shell + stainless steel tubes)
  • Pump head: 25m
  • Water flow rate: 14.8m³/h
  • Water tank capacity: 230L
  • Pipe connection size: 50DN

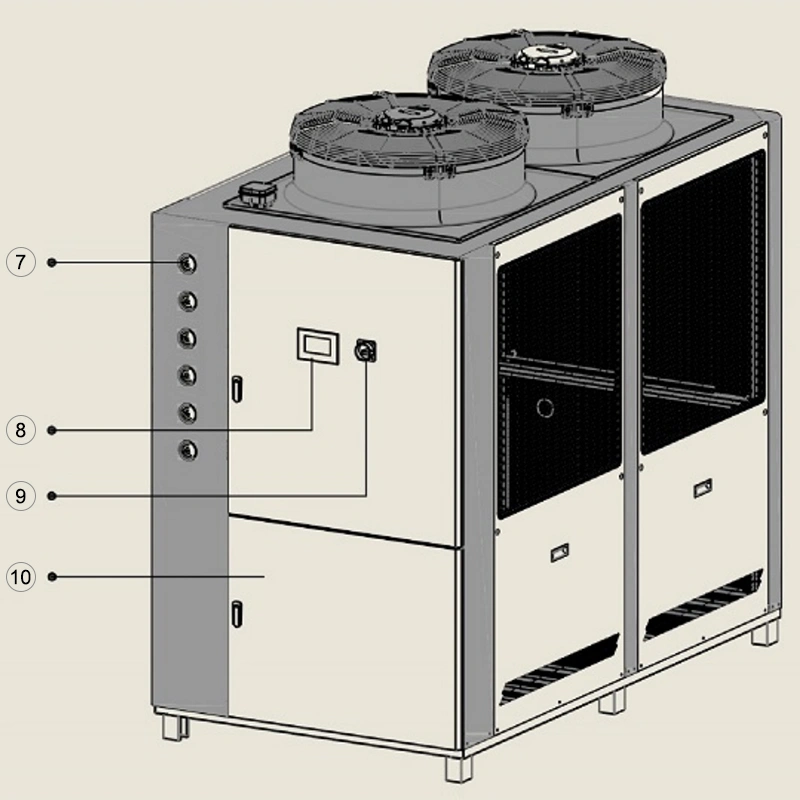

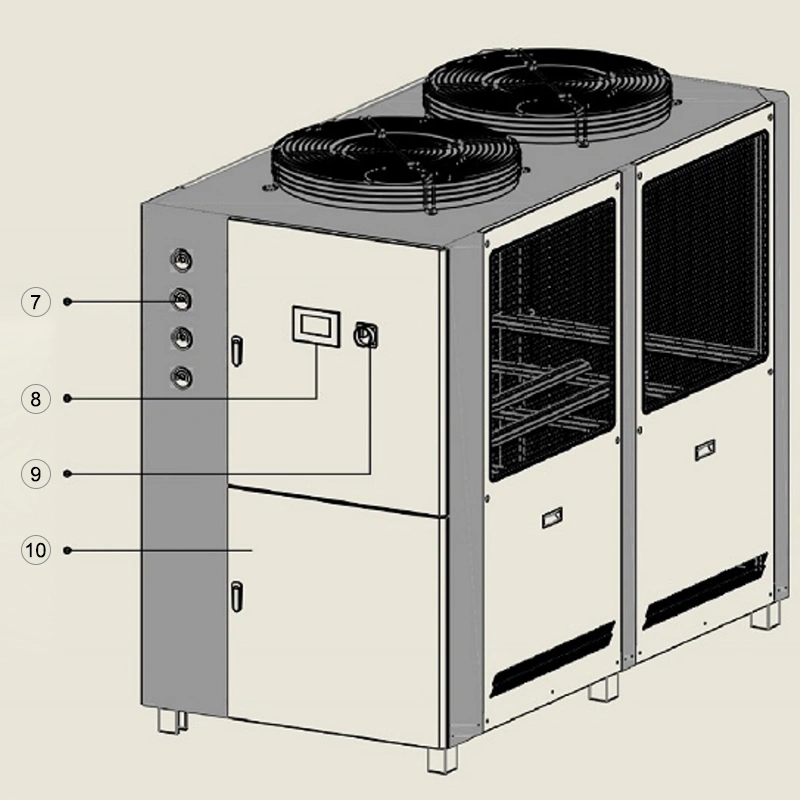

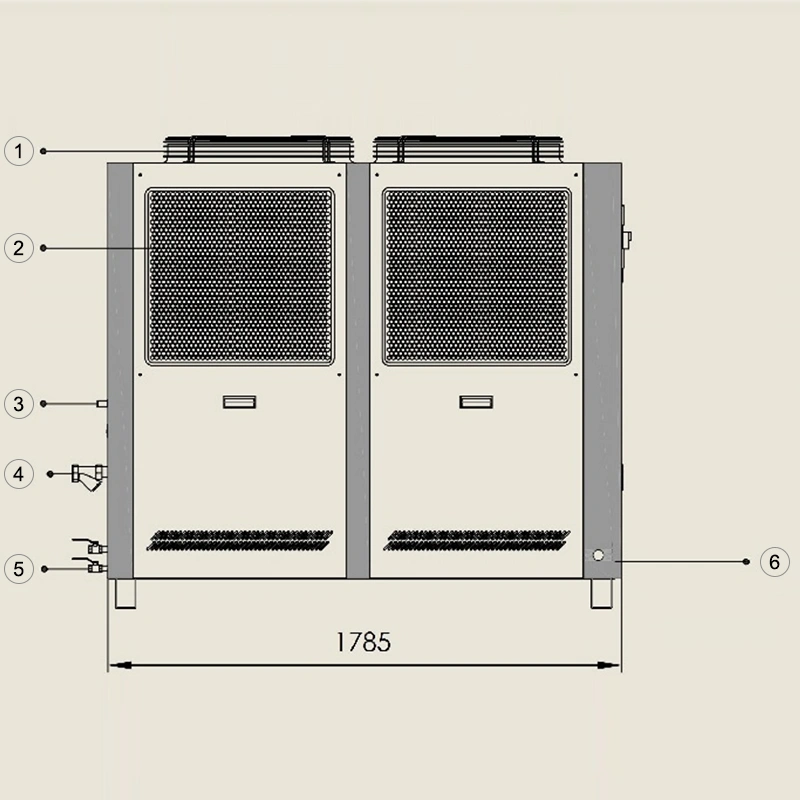

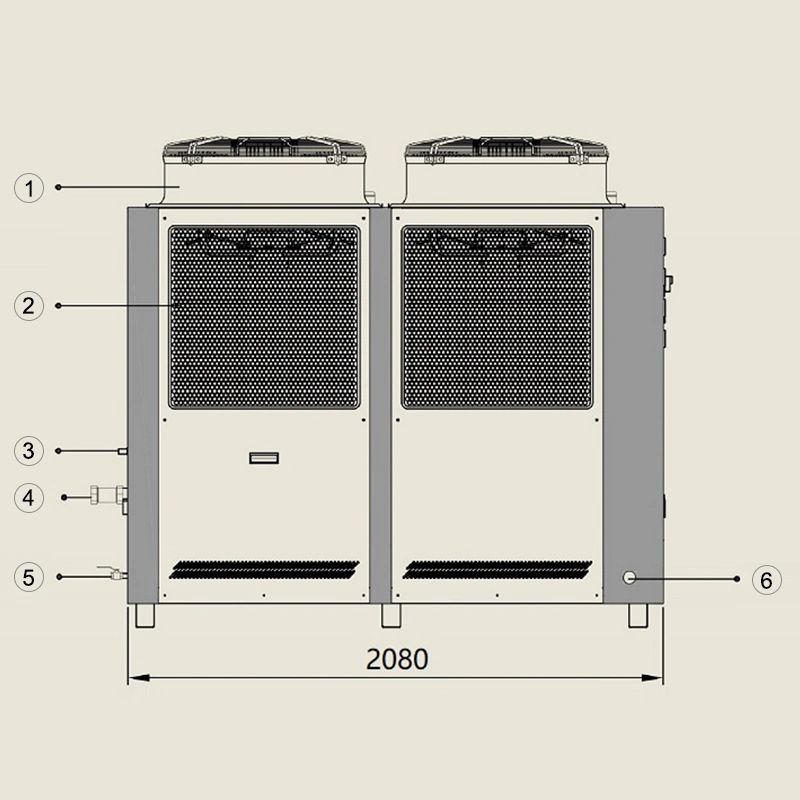

  • Cooling fan
  • Air inlet grille
  • Water filling port
  • Chilled water inlet/outlet
  • Drain port
  • Power connection port
  • Pressure gauge
  • Control panel
  • Emergency stop switch
  • Service access door
Inquiry

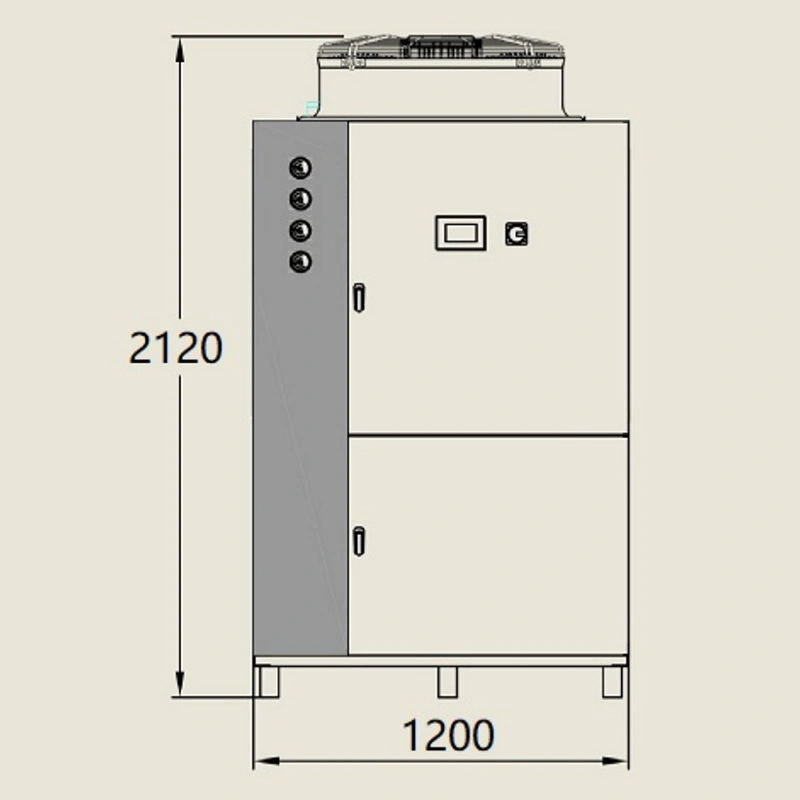

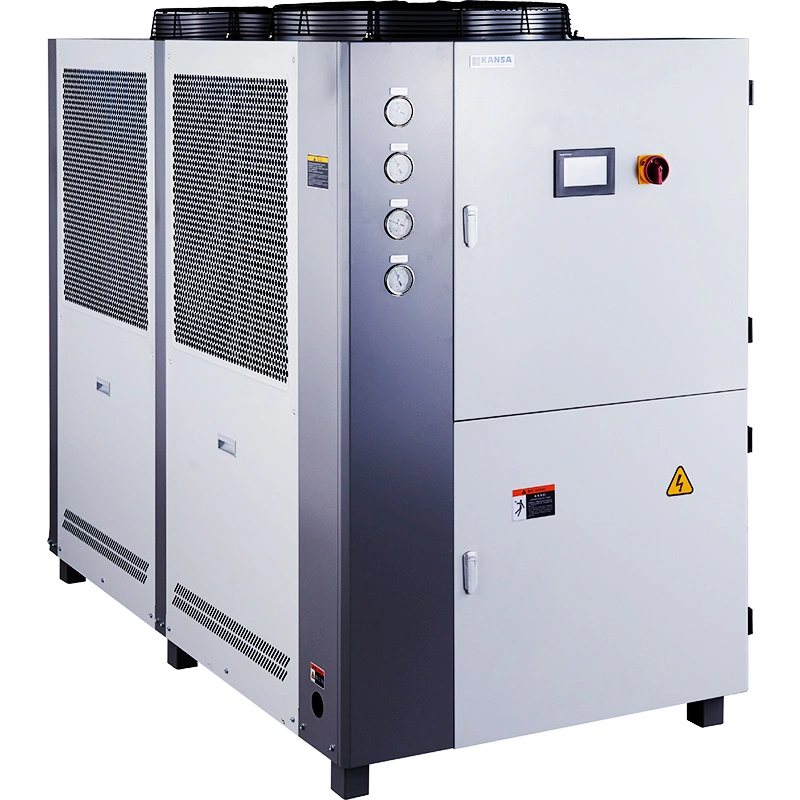

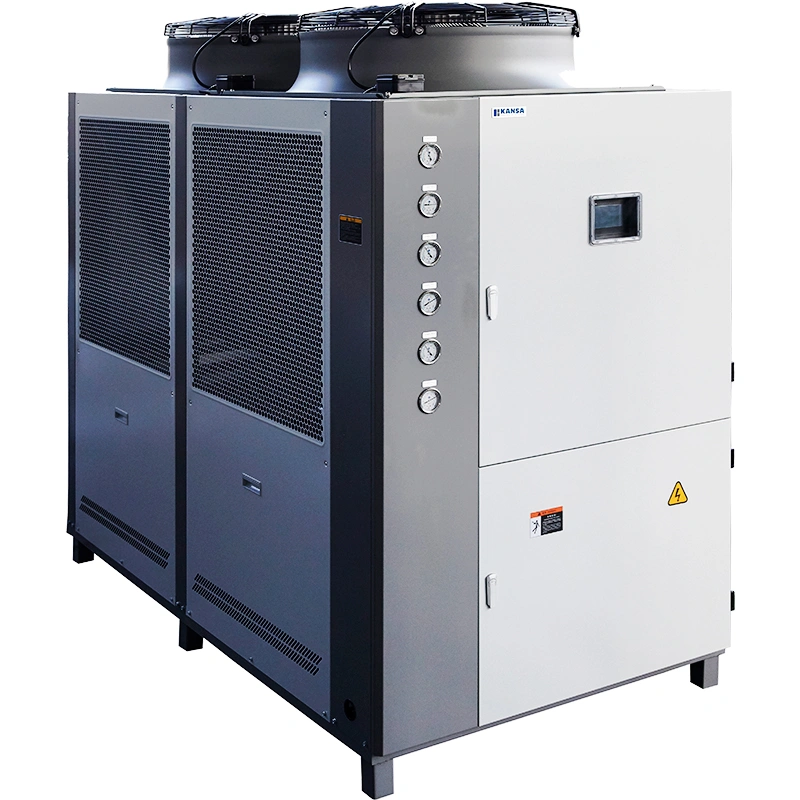

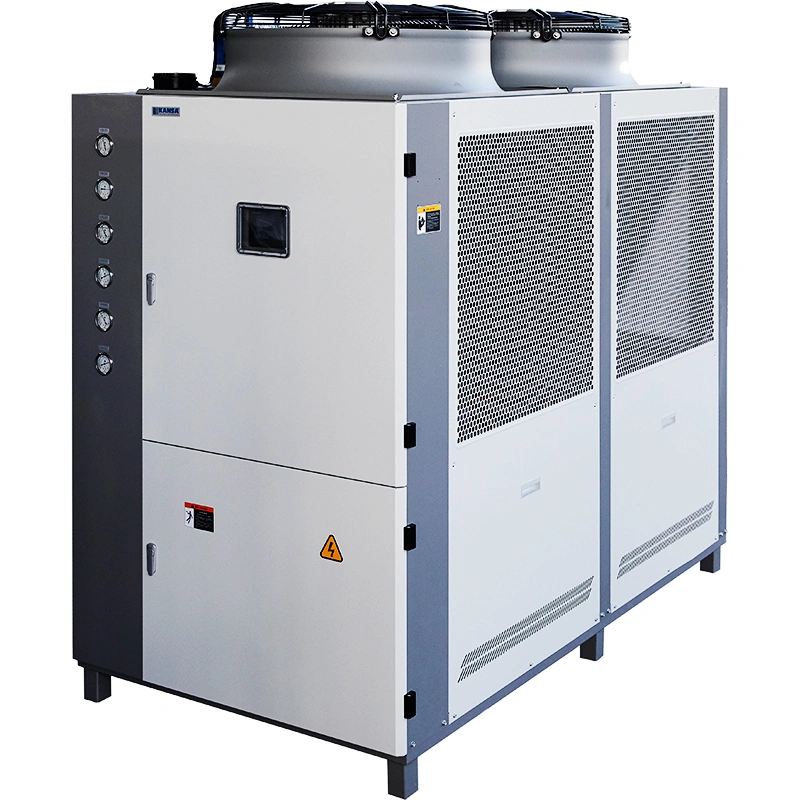

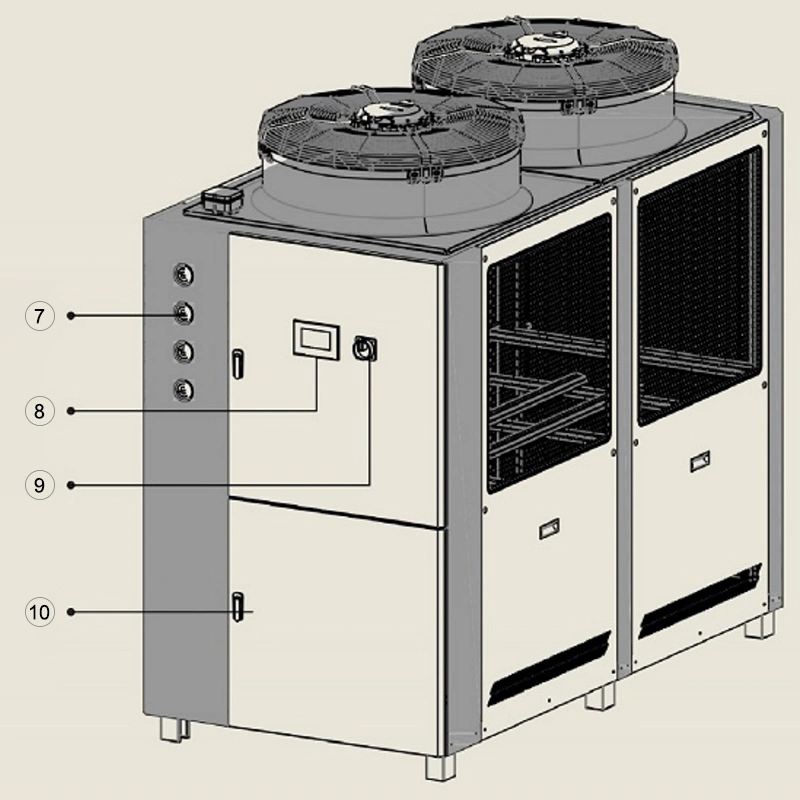

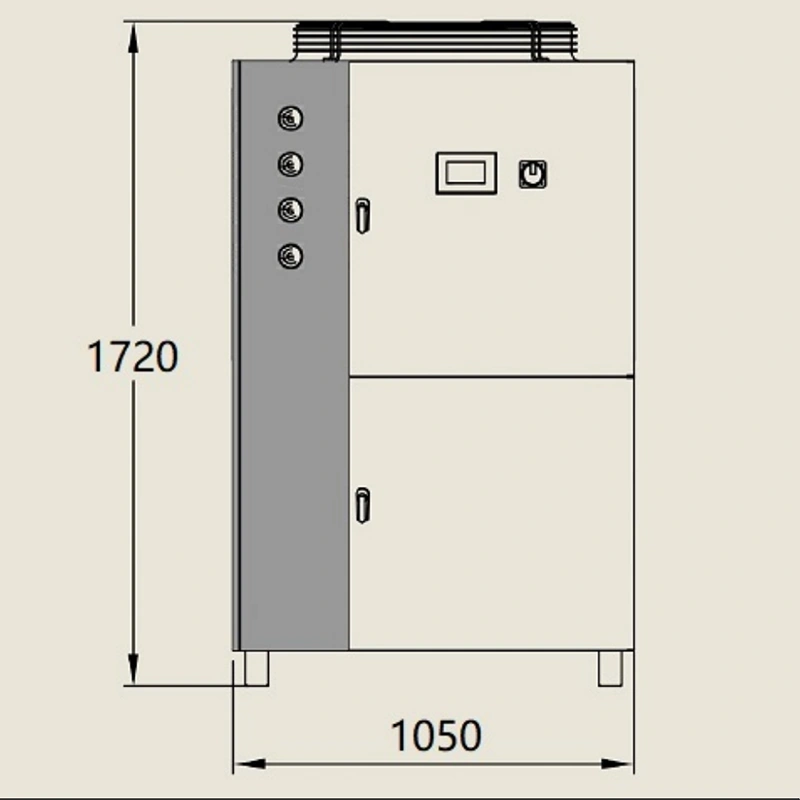

116.0kW Air-Cooled Water Chiller, ICA-40
  • 116.0kW Air-Cooled Water Chiller, ICA-40
  • 116.0kW Air-Cooled Water Chiller, ICA-40
  • 116.0kW Air-Cooled Water Chiller, ICA-40
  • 116.0kW Air-Cooled Water Chiller, ICA-40
  • 116.0kW Air-Cooled Water Chiller, ICA-40
116.0kW Air-Cooled Water Chiller, ICA-40
  • Cooling capacity: 116.0kW
  • Total power input: 41.3kW
  • Evaporator: shell-and-tube type (stainless steel shell + stainless steel tubes)
  • Pump head: 34m
  • Water flow rate: 20.0m³/h
  • Water tank capacity: 300L
  • Pipe connection size: 50DN

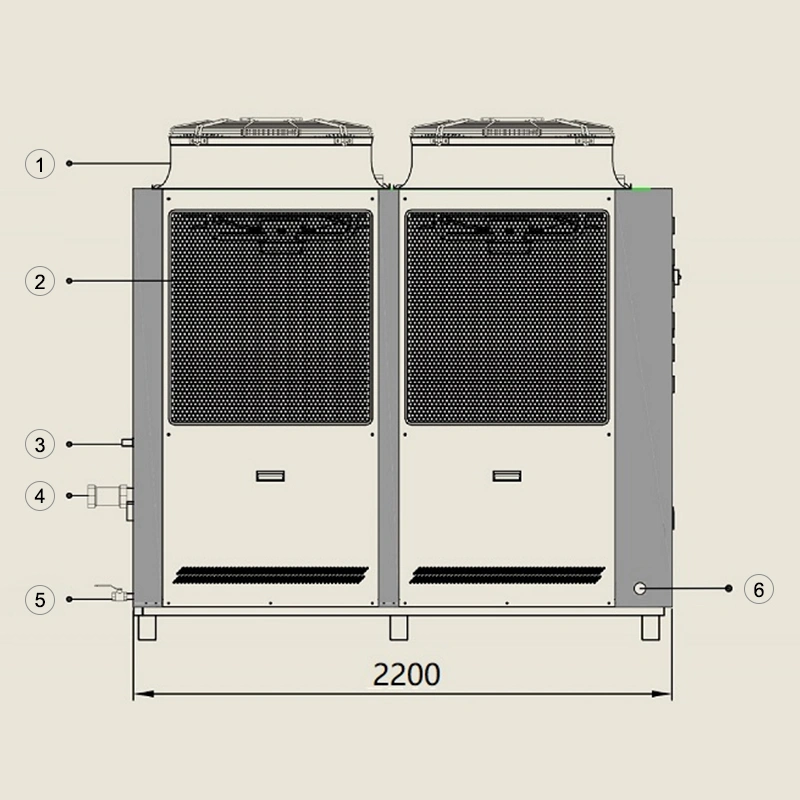

  • Cooling fan
  • Air inlet grille
  • Water filling port
  • Chilled water inlet/outlet
  • Drain port
  • Power connection port
  • Pressure gauge
  • Control panel
  • Emergency stop switch
  • Service access door
Inquiry

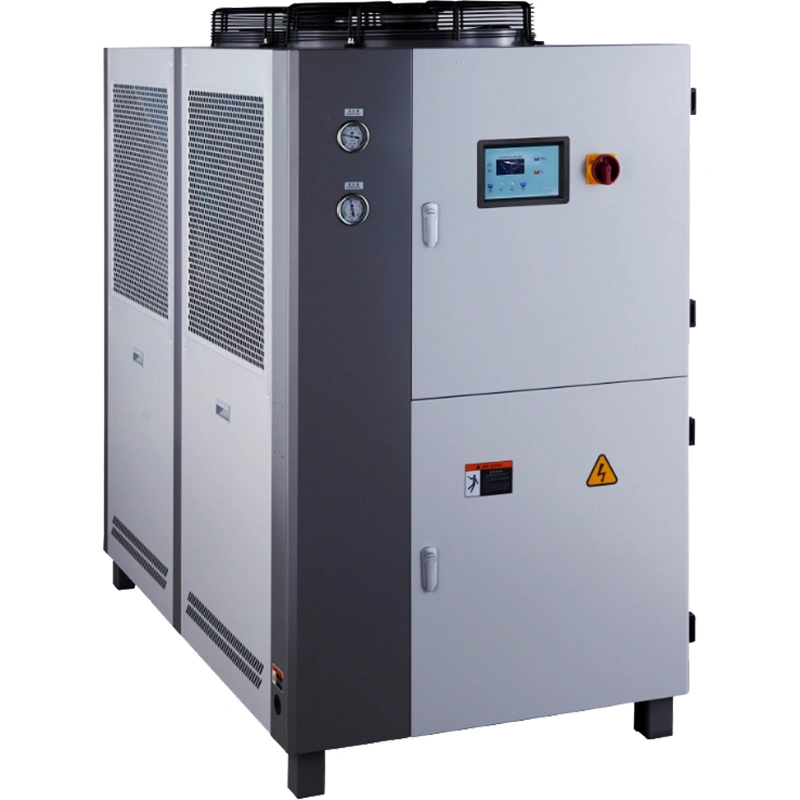

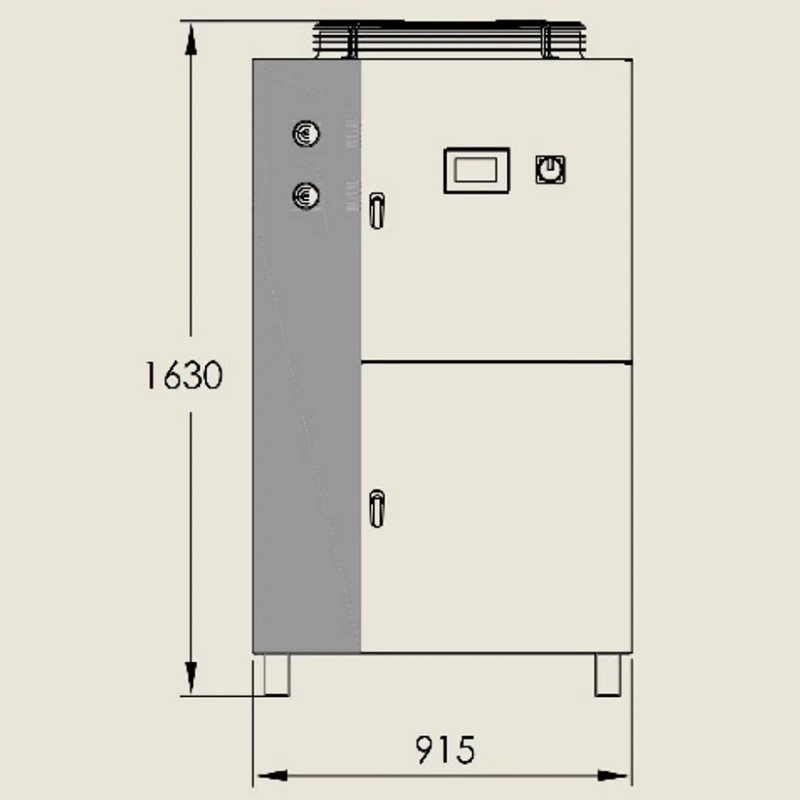

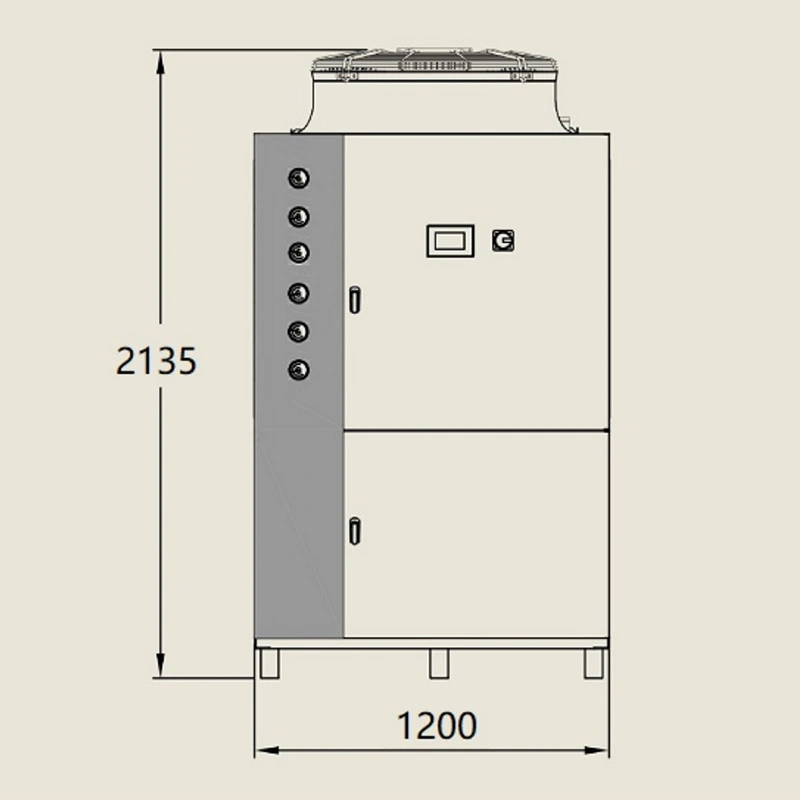

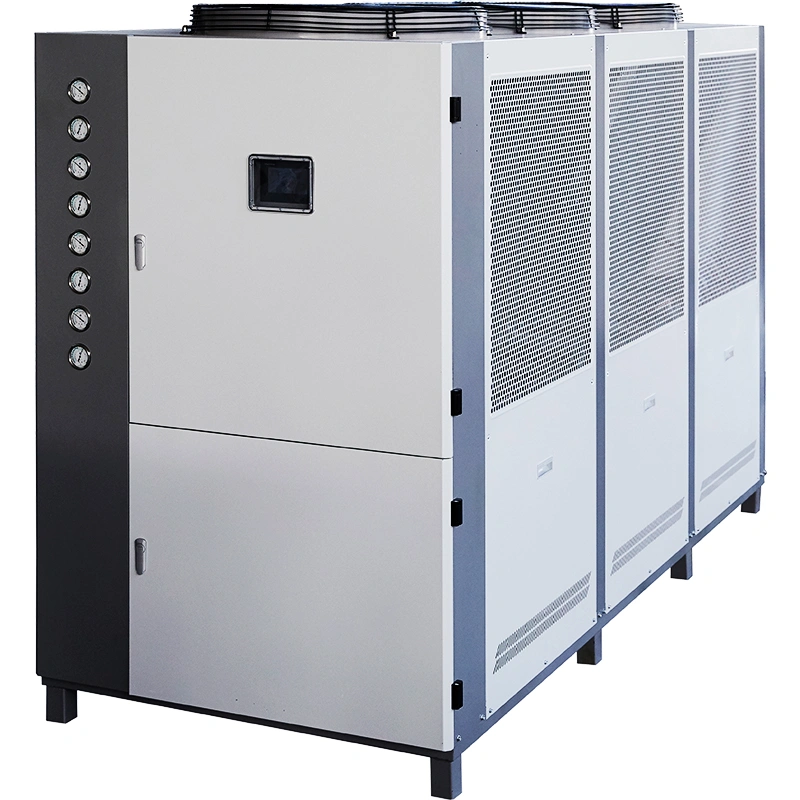

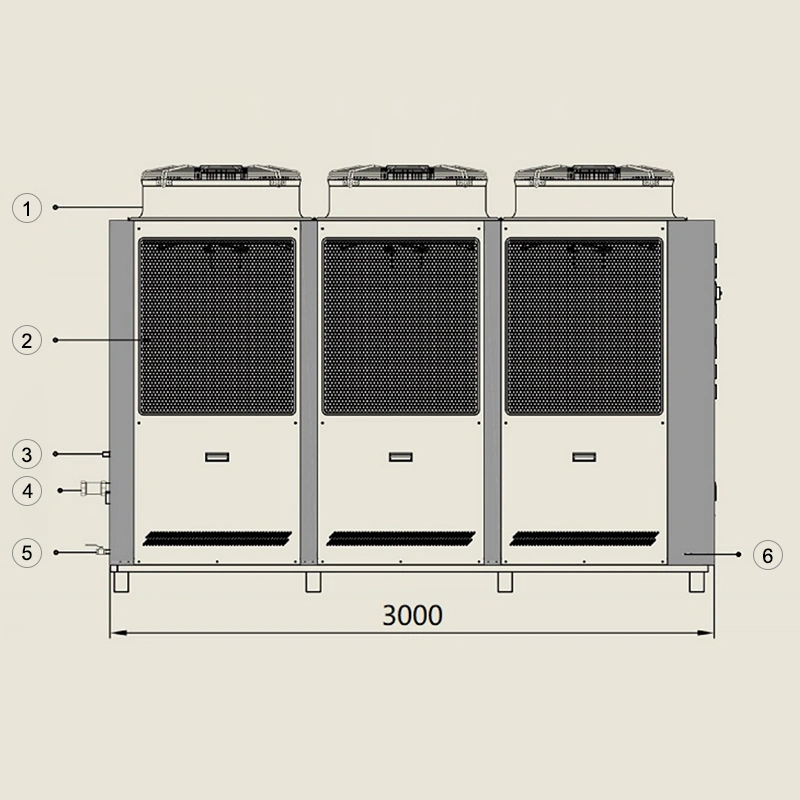

140.0kW Air-Cooled Water Chiller, ICA-50
  • 140.0kW Air-Cooled Water Chiller, ICA-50
  • 140.0kW Air-Cooled Water Chiller, ICA-50
  • 140.0kW Air-Cooled Water Chiller, ICA-50
  • 140.0kW Air-Cooled Water Chiller, ICA-50
140.0kW Air-Cooled Water Chiller, ICA-50
  • Cooling capacity: 140.0kW
  • Total power input: 48.0kW
  • Evaporator: shell-and-tube type (stainless steel shell + stainless steel tubes)
  • Pump head: 29m
  • Water flow rate: 24.0m³/h
  • Water tank capacity: 300L
  • Pipe connection size: 65DN
  • Cooling fan
  • Air inlet grille
  • Water filling port
  • Chilled water inlet/outlet
  • Drain port
  • Power connection port
  • Pressure gauge
  • Control panel
  • Emergency stop switch
  • Service access door
Inquiry

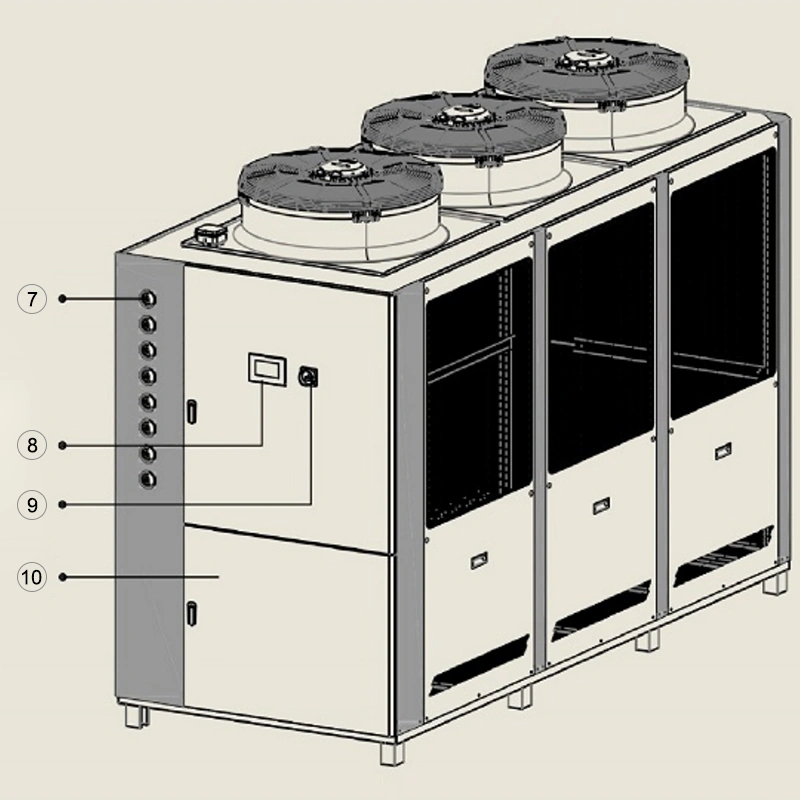

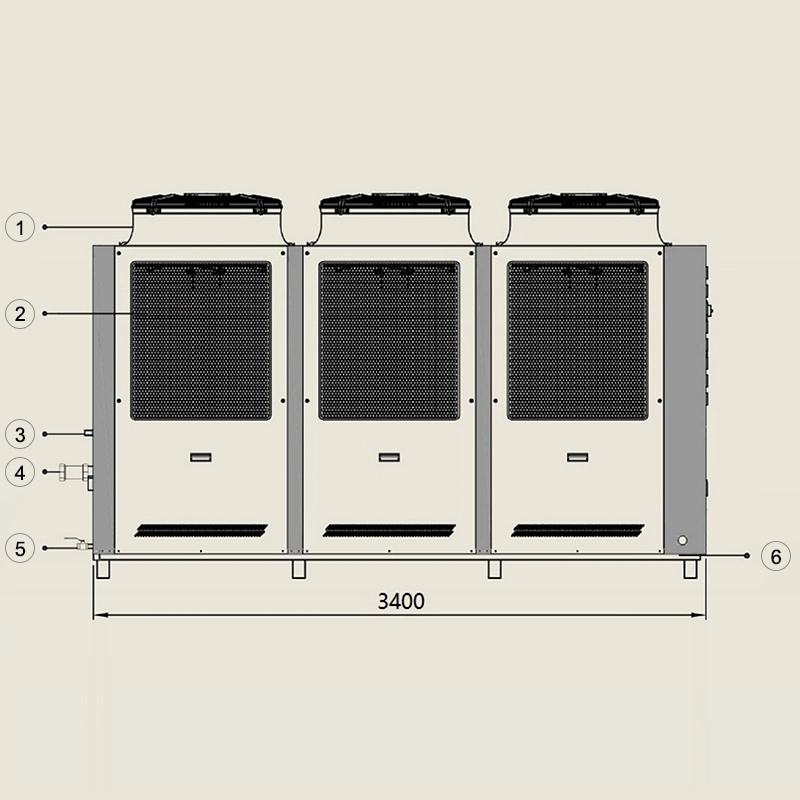

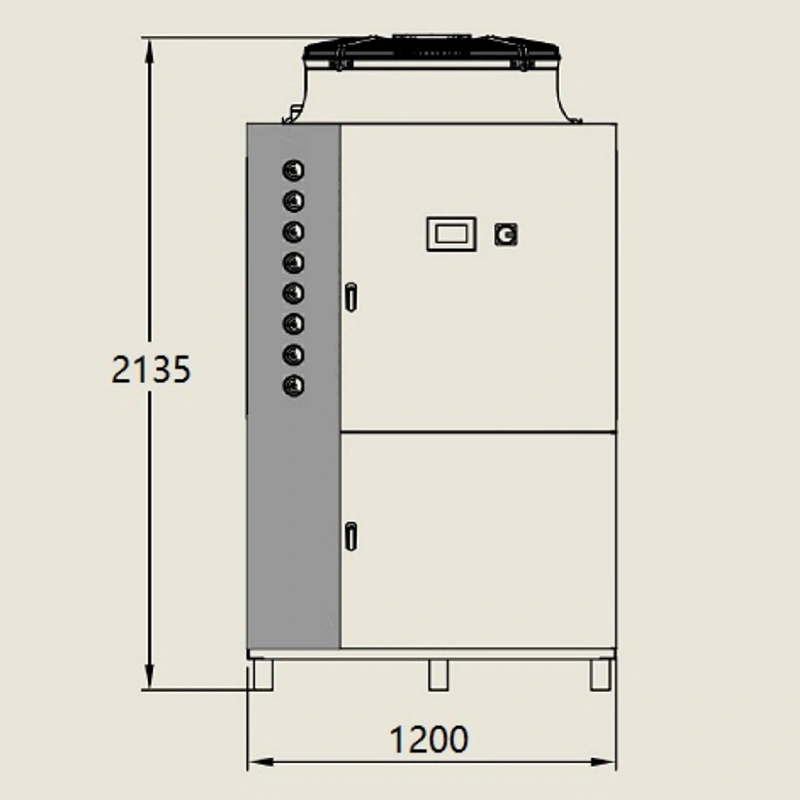

168.0kW Air-Cooled Water Chiller, ICA-60
  • 168.0kW Air-Cooled Water Chiller, ICA-60
  • 168.0kW Air-Cooled Water Chiller, ICA-60
  • 168.0kW Air-Cooled Water Chiller, ICA-60
  • 168.0kW Air-Cooled Water Chiller, ICA-60
168.0kW Air-Cooled Water Chiller, ICA-60
  • Cooling capacity: 168.0kW
  • Total power input: 58.5kW
  • Evaporator: shell-and-tube type (stainless steel shell + stainless steel tubes)
  • Pump head: 25m
  • Water flow rate: 28.9m³/h
  • Water tank capacity: 300L
  • Pipe connection size: 65DN

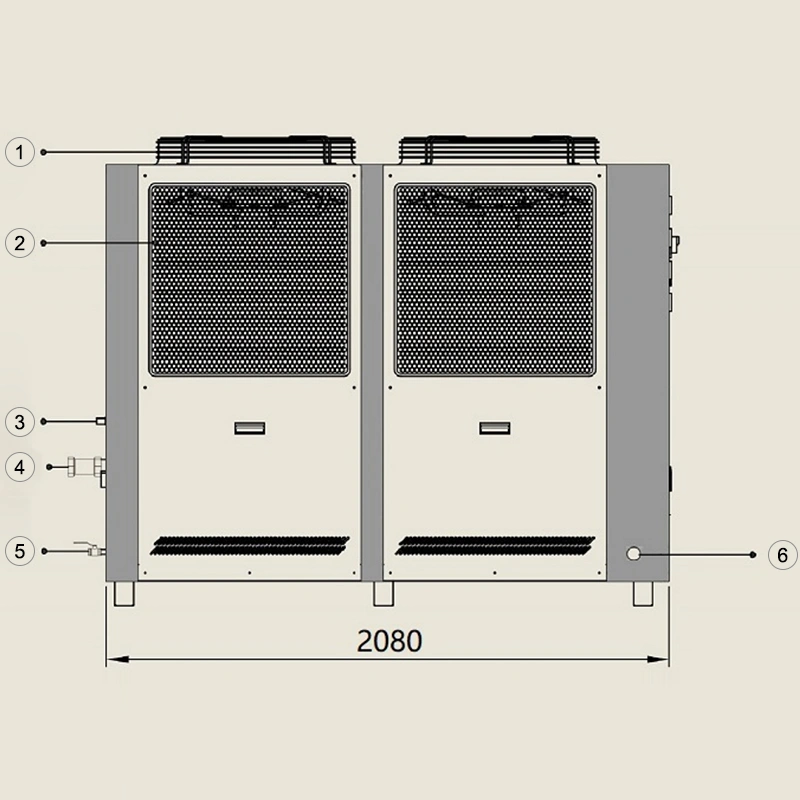

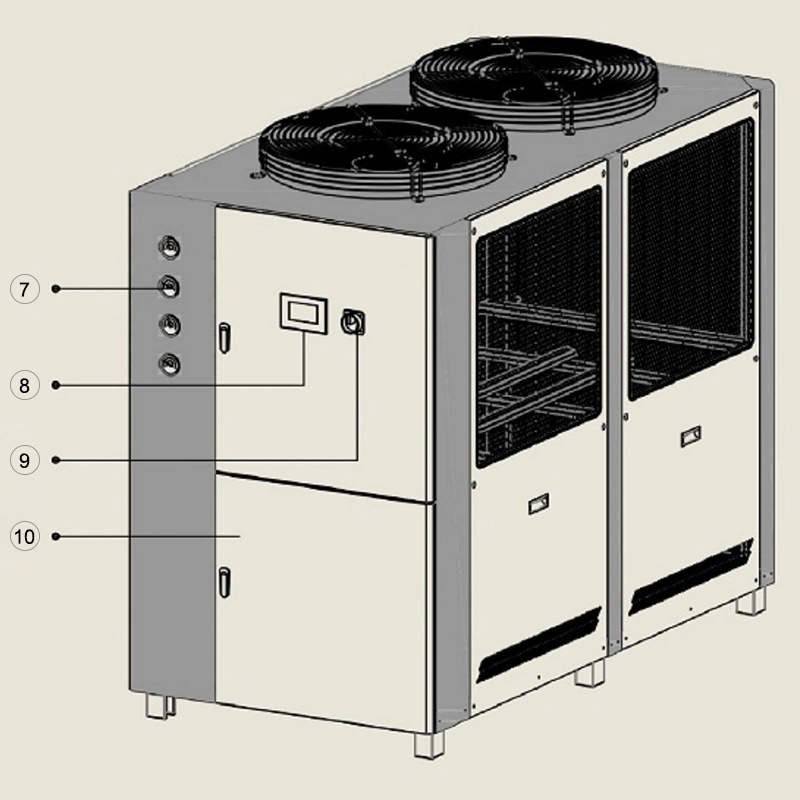

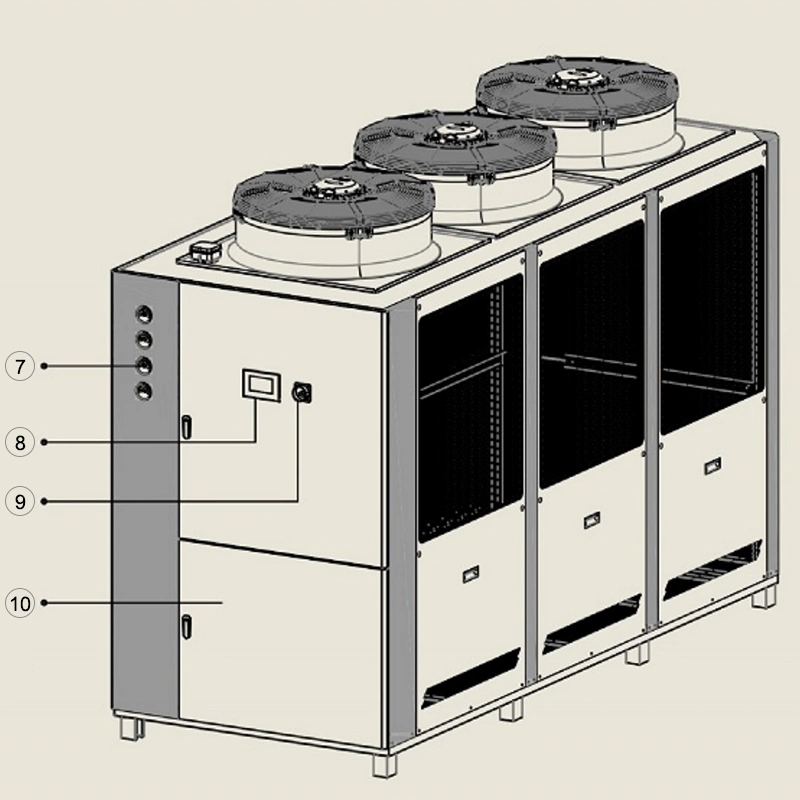

  • Cooling fan
  • Air inlet grille
  • Water filling port
  • Chilled water inlet/outlet
  • Drain port
  • Power connection port
  • Pressure gauge
  • Control panel
  • Emergency stop switch
  • Service access door
Inquiry
Recommended Applications
  • Plastic & Rubber Processing
    Cooling for injection molds, extrusion equipment, bottle blow-molding machines, thermoforming systems, and calendering machinery.
  • CNC Machining & Metalworking
    Process cooling for CNC machine tools, machining centers, grinding machines, milling machines, and die-casting molds, including temperature control for cutting fluids, spindles, and hydraulic power units.
  • Laser Equipment
    Cooling for laser sources and optical systems in fiber laser cutting machines, laser welding equipment, laser marking systems, and laser cladding equipment.
  • Chemical & Pharmaceutical Processing
    Cooling for jacketed reactors, chemical synthesis and crystallization processes, distillation condensers, fermentation tanks, pharmaceutical intermediate production, and process water systems in GMP production facilities.
  • Electronics, PCB & Semiconductor Manufacturing
    Cooling for magnetron sputtering systems, vacuum coating equipment, semiconductor packaging and testing equipment, and plasma processing systems.
  • Food & Beverage Processing
    Temperature control for beer fermentation tanks, beverage filling operations, dairy processing, sauce mixing equipment, and cooling rollers in food processing machinery.
Customer Cases
CNC Machining
CNC Machining

A customer purchased a 5 HP air-cooled water chiller for cooling cutting fluids, tooling, and molds used in CNC machining operations.

Automotive Aluminum Die Casting
Automotive Aluminum Die Casting

An automotive aluminum alloy die-casting manufacturer purchased multiple 3 HP air-cooled water chillers for localized die cooling and cutting-fluid cooling at CNC machining stations.

Offset Printing
Offset Printing

A printing company purchased a 10 HP air-cooled water chiller to cool fountain solution, ink-distribution rollers, and UV curing equipment on an offset printing line.

Precision Gear Manufacturing
Precision Gear Manufacturing

A precision gear manufacturer purchased a 10 HP air-cooled water chiller for cooling gear grinding machines, induction hardening power supplies, and cutting fluids.

Vacuum Glass Manufacturing
Vacuum Glass Manufacturing

A vacuum glass manufacturer purchased a 50 HP air-cooled industrial chiller for a fully tempered vacuum insulated glass production line. The chiller provides process cooling for vacuum sealing furnaces, turbomolecular vacuum pump systems, and high-frequency heating power supplies.

Food Processing
Food Processing

A food manufacturer purchased a 20 HP air-cooled water chiller for rapid cooling of filling materials during food production.

Components and Processing
    1. Branded compressors
      Branded compressors
    1. Automated vacuum and refrigerant charging system
      Automated vacuum and refrigerant charging system
    1. 3D CNC pipe bending machine
      3D CNC pipe bending machine
    1. Automated welding system
      Automated welding system
Customer Application Sites
  • Customer Application Sites
  • Customer Application Sites
  • Customer Application Sites
  • Customer Application Sites
  • Customer Application Sites
  • Customer Application Sites
  • Customer Application Sites
  • Customer Application Sites
  • Customer Application Sites
  • Customer Application Sites

With over 20 years of experience in the industrial cooling industry, KANSA designs and manufactures a variety of industrial chillers and process temperature control equipment in-house to ensure consistent quality, reliable operation and exceptional temperature stability of ±0.05°C. The company holds CE, ISO9001-2016, ISO45001 and other international certifications, serving more than 70,000 customers worldwide.

Related Products
1.6-168kW Air-Cooled Water Chiller
2.7-29.5kW Air-Cooled Water Chiller
9.1-140kW Air-Cooled Water Chiller
3.0-72.0kW Air-Cooled Water Chiller
1.9-54.0kW Air-Cooled Water Chiller
1.2-35.6kW Air-Cooled Water Chiller
58.5-420.0kW Air-Cooled Scroll Chiller
Get in Touch
Other Products
Discover Our Products
  • 9.9-240kW Water-Cooled Water Chiller
    9.9-240kW Water-Cooled Water Chiller
  • 176-1145kW Water-Cooled Screw Chiller
    176-1145kW Water-Cooled Screw Chiller
  • Cutting Fluid Cooler (Coolant Chiller)
    Cutting Fluid Cooler (Coolant Chiller)
  • Hydraulic Oil Chiller
    Hydraulic Oil Chiller
About Us
  • Company Profile
  • Certification
  • Innovation
  • Manufacturing
  • Customers
  • Exhibitions
  • FAQs
  • News
Products
  • Air-Cooled Water Chiller
  • Water-Cooled Water Chiller
  • Scroll Chillers
  • Temperature Control Units for New Energy
  • Industrial Oil Chiller, Fluid Chiller
  • Enclosure Air Conditioners
  • Shell & Tube Evaporators
Case Studies
  • Industrial Chiller for Bakery Production
  • Industrial Chiller for Printing Process Cooling
  • Injection Molding Chiller for Auto Parts Manufacturing
  • Water-Cooled Chiller for Textile Dyeing & Finishing
Shanghai KANSA Refrigeration Equipment Co., Ltd.
  • Manager Pan
  • kansa@kansa-chillers.com
  • +86-21-58540871
  • +86-13585991002
  •  Inquiry
  •  +86-13585991002
  • +86-21-58540871
  • kansa@kansa-chillers.com
