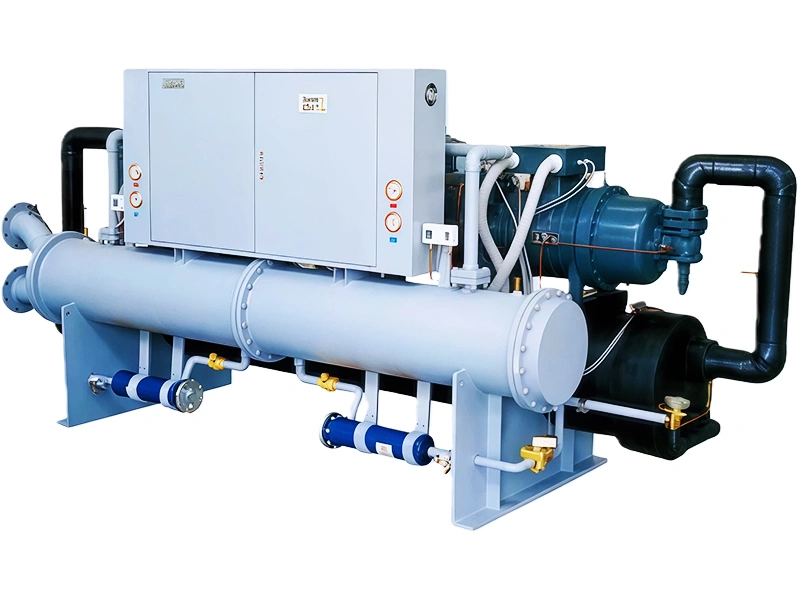

176-1145kW Water-Cooled Screw Chiller

176-1145kW Water-Cooled Screw Chiller
    1. Cooling Capacity

      Cooling Capacity: 176–1145 kW

    1. Chilled Water Temperature Range

      Chilled Water Temperature Range: 7°C~25°C

    1. Temperature precision

      Temperature precision: ±1.5°C

    1. Compressor Brands

      Compressor Brands: Copeland, Panasonic, BITZER, Danfoss

    1. Refrigerants

      Refrigerants: R410A / R407C / R404A / R454 / R32, etc.

    1. Ambient Operating Temperature

      Ambient Operating Temperature: -10°C~50°C

The water-cooled screw chiller features an efficient screw compressor combined with advanced water-cooled condensation technology, providing cooling capacities from 176 to 1145 kW, a chilled water temperature range of 7°C to 25°C, and temperature control accuracy of ±1.5°C, with stable and reliable performance. Compact in structure and suitable for medium to large-scale cooling demands, it is an ideal choice for central air-conditioning systems and large industrial processes such as chemical, pharmaceutical, and electronics manufacturing. This chiller significantly reduces operating costs for large-scale cooling applications.

Request a Quote

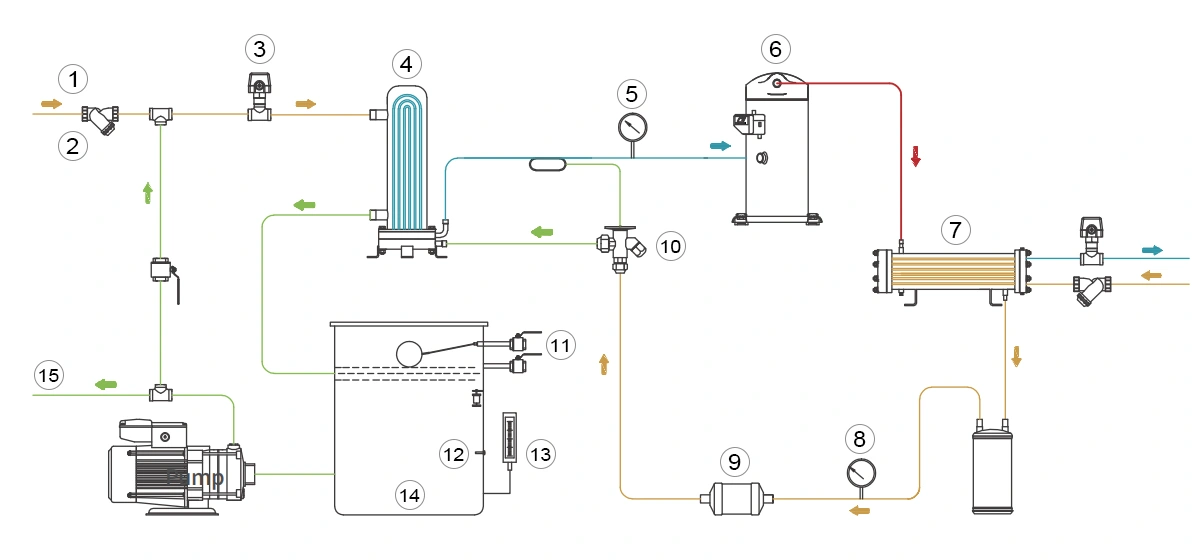

System Diagram
9.9-240kW Water-Cooled Water Chiller
  • Water filter
  • Chilled water inlet
  • Flow switch
  • Evaporator
  • Pressure gauge
  • Compressor
  • Condenser
  • Pressure gauge
  • Dry filter
  • Expansion valve
  • Water supply
  • Water level sensor
  • Tank
  • Chilled water outlet
Features
  • Semi-Hermetic Twin-Screw Compressor
    The chiller uses semi-hermetic twin-screw compressors with asymmetric rotors, offering five-stage capacity control at 0%, 25%, 50%, 75%, and 100%. This allows cooling output to be adjusted according to changes in the process cooling load.
    For multi-circuit configurations, unaffected refrigeration circuits can continue operating while an individual circuit undergoes maintenance.
  • In-House Manufactured Shell-and-Tube Heat Exchangers
    KANSA manufactures horizontal shell-and-tube condensers and evaporators, with optional 304 stainless steel tube bundles. The removable design facilitates tube cleaning and descaling, simplifying routine maintenance. Heat exchanger configurations are selected according to the circulating fluid and water quality requirements.
  • Intelligent PLC Control System
    The PLC control system features a color touchscreen with Chinese and English interfaces, fault diagnostics, and operating data recording. Standard temperature precision is specified at ±0.5°C, with a customized ±0.1°C version available.
    The system also supports remote communication, supervisory control system integration, and coordinated control of multiple chillers.
  • Comprehensive Safety Protection
    The chiller incorporates high- and low-pressure protection, water-flow monitoring, freeze protection, compressor overload protection, phase-loss and phase-reversal protection, oil-level protection, and safety valves.
    An optional reduced-voltage starting system helps limit the electrical impact of starting high-power equipment.
  • Factory-Assembled Design & Flexible Configuration
    With cooling capacities ranging from 176 to 1145 kW and a standard chilled-water outlet temperature range of 7–25°C, the chiller can be configured with different refrigerants or multiple units operating in parallel to meet specific project requirements.
    Each unit is assembled, pressure-tested, and charged with refrigerant before leaving the factory.
Specifications
Water-Cooled Screw Chiller (7℃ outlet water, single compressor)
Model ICW-176S ICW-192S ICW-234S ICW-256S ICW-302S ICW-350S
Cooling capacity kW 176 192 234 256 302 350
10³ kcal/h 151.4 165.1 201 221 260 301
Power supply V/Ph/Hz 380/3/50
Total power input kW 39.5 43.3 52.7 57.4 64.7 74.9
Compressor Type Asymmetric semi-hermetic twin screw type
Capacity control 0-25-50-75-100%
Evaporator Type Horizontal shell-and-tube type
Flow rate m³/h 30.3 33 40.2 44.2 52 60.2
Pipe connection size DN DN80 DN100 DN100 DN100 DN100 DN125
Condenser Type Horizontal shell-and-tube type
Flow rate m³/h 36.4 39.6 48.2 53 62.4 72.2
Pipe connection size DN DN80 DN100 DN100 DN100 DN100 DN125
Safety protection High/low pressure, anti-freeze, discharge overheat, overload, phase loss, reverse phase, under/over voltage, water flow protection, and safety valve
Dimensions Length mm 3080 3150 3150 3150 3165 3150
Width mm 1000 1000 1000 1000 1100 1000
Height mm 1500 1540 1540 1540 1570 1540
Weight kg 1265 1360 14156 1525 1590 2350
Model ICW-378S ICW-416S ICW-495S ICW-573S ICW-645S ICW-750S
Cooling capacity kW 378 416 495 573 645 750
10³ kcal/h 325 358 426 492 554 645
Power supply V/Ph/Hz 380/3/50
Total power input kW 81.7 90.8 105.5 120.7 134 154.4
Compressor Type Asymmetric semi-hermetic twin screw type
Capacity control 0-25-50-75-100%
Evaporator Type Horizontal shell-and-tube type
Flow rate m³/h 65 72 85 98 111 125
Pipe connection size DN DN125 DN125 DN125 DN125 DN150 DN150
Condenser Type Horizontal shell-and-tube type
Flow rate m³/h 78 86.4 102 119 134 156
Pipe connection size DN DN125 DN125 DN125 DN125 DN150 DN150
Safety protection High/low pressure, anti-freeze, discharge overheat, overload, phase loss, reverse phase, under/over voltage, water flow protection, and safety valve
Dimensions Length mm 3400 3400 3400 3650 4000 4000
Width mm 1150 1150 1150 1350 1400 1400
Height mm 1670 1670 1670 1900 2000 2000
Weight kg 1940 2040 2205 2442 2770 2970

Customized specifications are available upon request. Please Contact Us for details.

Water-Cooled Screw Chiller (7℃ outlet water, dual compressor)
Model ICW-352D ICW-383D ICW-467D ICW-513D ICW-604D ICW-658D
Cooling capacity kW 352 383 467 513 604 658
10³ kcal/h 303 330 402 441 520 566
Power supply V/Ph/Hz 380/3/50
Total power input kW 79 86.6 105.4 114.8 129.4 137.4
Compressor Type   Asymmetric semi-hermetic twin screw type
Capacity control   0-25-50-75-100%
Evaporator Type   Horizontal shell-and-tube type
Flow rate m³/h 60.5 65.9 80.3 88.2 103.9 113.2
Pipe connection size DN DN125 DN125 DN125 DN125 DN150 DN150
Condenser Type   Horizontal shell-and-tube type
Flow rate m³/h 75.7 82.4 100.4 110.3 130 141.5
Pipe connection size DN DN125 DN125 DN125 DN125 DN150 DN150
Safety protection   High/low pressure, anti-freeze, discharge overheat, overload, phase loss, reverse phase, under/over voltage, water flow protection, and safety valve
Dimensions Length mm 3980 3980 3980 4060 4060 4060
Width mm 1170 1170 1170 1320 1320 1320
Height mm 1660 1660 1660 1700 1700 1700
Weight kg 1265 2405 2580 2690 2900 3020
Model ICW-700D ICW-756D ICW-832D ICW-991D ICW-1046D ICW-1145D
Cooling capacity kW 700 756 832 991 1046 1145
10³ kcal/h 602 650 716 852 900 985
Power supply V/Ph/Hz 380/3/50
Total power input kW 149.8 163.4 181.6 211 222.8 241.4
Compressor Type   Asymmetric semi-hermetic twin screw type
Capacity control   0-25-50-75-100%
Evaporator Type   Horizontal shell-and-tube type
Flow rate m³/h 120.4 130 143.1 170.5 180 197
Pipe connection size DN DN150 DN150 DN200 DN200 DN200 DN200
Condenser Type   Horizontal shell-and-tube type
Flow rate m³/h 150.5 162.5 179 213 225 246.2
Pipe connection size DN DN150 DN150 DN200 DN200 DN200 DN200
Safety protection   High/low pressure, anti-freeze, discharge overheat, overload, phase loss, reverse phase, under/over voltage, water flow protection, and safety valve
Dimensions Length mm 4270 4270 4270 4290 4290 4700
Width mm 1320 1340 1340 1450 1450 1450
Height mm 1700 1950 1950 2035 2035 2035
Weight kg 3435 3680 3875 4190 4400 4640

Customized specifications are available upon request. Please Contact Us for details.

With over 20 years of experience in the industrial cooling industry, KANSA designs and manufactures a variety of industrial chillers and process temperature control equipment in-house to ensure consistent quality, reliable operation and exceptional temperature stability of ±0.05°C. The company holds CE, ISO9001-2016, ISO45001 and other international certifications, serving more than 70,000 customers worldwide.
