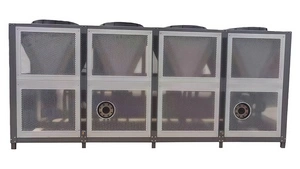

58.5-420.0kW Air-Cooled Scroll Chiller

58.5-420.0kW Air-Cooled Scroll Chiller
58.5-420.0kW Air-Cooled Scroll Chiller
    1. Cooling Capacity

      Cooling Capacity: 58.5–420.0 kW

    1. Chilled Water Temperature Range

      Chilled Water Temperature Range: 7°C~25°C

    1. Temperature precision

      Temperature precision: ±0.1/±0.5/±1.5°C

    1. Compressor Brands

      Compressor Brands: Copeland, Panasonic, BITZER, Danfoss

    1. Refrigerants

      Refrigerants: R410A / R407C / R404A / R454 / R32, etc.

    1. Ambient Operating Temperature

      Ambient Operating Temperature: -10°C~50°C

The air-cooled scroll chiller integrates a scroll compressor with an air-cooling system, eliminating the need for a cooling tower or dedicated machine room. It features low operating noise, energy efficiency, and a compact design, making it suitable for medium-capacity cooling demands. Widely used in pharmaceutical, chemical, CNC machining, rubber and plastics, and food processing industries.

Request a Quote
Features
  • Multiple Scroll Compressors with Independent Refrigeration Circuits
    The chiller uses hermetic scroll compressors arranged in multiple independent refrigeration circuits for stable operation with low vibration and noise levels.
    Staged compressor on/off control allows cooling capacity to be adjusted according to fluctuating process loads.
  • Air-Cooled Design for Flexible Installation
    The chiller uses forced-air cooling to dissipate heat, eliminating the need for a cooling tower, cooling-water pumps, or a separate condenser-water circuit.
    Delivered as a factory-assembled unit, the chiller requires only on-site water and electrical connections before commissioning. It can be installed on rooftops or outdoor platforms without occupying dedicated indoor equipment room space, making it suitable for water-scarce locations, facility upgrades, and installations with limited space.
  • Efficient Heat Exchange System
    The V-shaped finned-tube condenser provides ample heat transfer surface area for effective heat rejection, including operation in high ambient temperatures. The shell-and-tube evaporator is available with optional 304 stainless steel tube bundles. Its wide flow passages help reduce the risk of blockages, while the removable construction facilitates cleaning and maintenance, making it suitable for circulating water systems with varying water quality.
    An electronic expansion valve adjusts refrigerant flow in response to changing cooling loads, helping improve energy efficiency across different operating conditions.
  • Intelligent PLC Control System
    The PLC control system features a color touchscreen with Chinese and English interfaces, fault self-diagnostics, and operating data recording.
    RS485 communication enables integration with supervisory control systems and coordinated management of multiple chiller units.

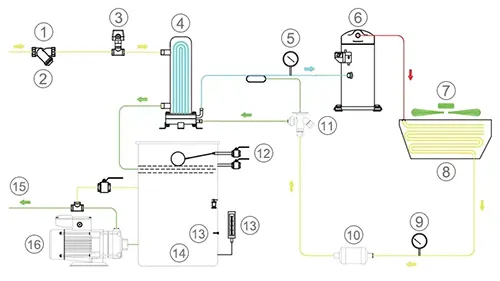

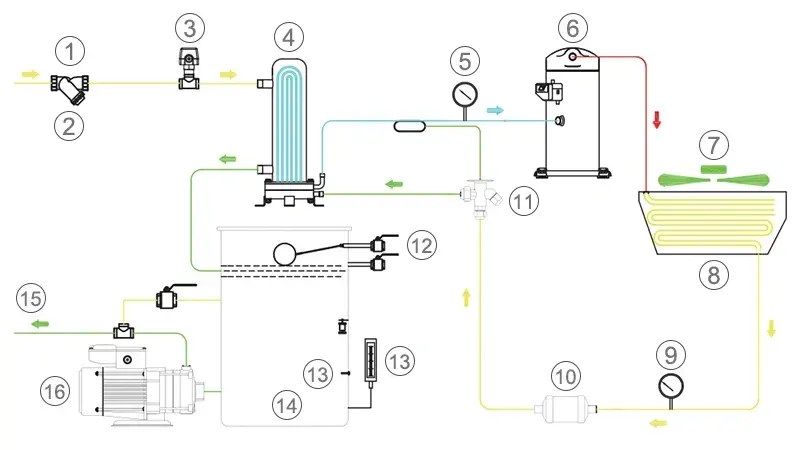

System Diagram
58.5-420.0kW Air-Cooled Scroll Chiller
  • Water filter
  • Chilled water inlet
  • Flow switch
  • Evaporator
  • Pressure gauge
  • Compressor
  • Cooling fan
  • Condenser
  • Pressure gauge
  • Dry filter
  • Expansion valve
  • Water supply
  • Water level sensor
  • Tank
  • Chilled water outlet
  • Pump
Specifications
Model ICS-20A ICS-25A ICS-40A ICS-50A
Cooling capacity kW 58.5 69 116 140
10³ kcal/h 50.3 59.3 100 120
Power supply V/Ph/Hz 380/3/50
Total power input kW 18.9 21.8 37.8 44.5
Rated current A 37 42 69 81
Compressor Type Scroll type
Power kW 17.4 20.2 35 40.6
Evaporator Type Shell-and-tube type
Water side pressure 16 bar
Water flow rate m³/h 10 11.8 20 24
L/min 167 197 333 400
Pipe connection size DN 50 50 50 65
Noise level dB(A) 69 70 72 72
Weight kg 600 750 1100 1300
Dimensions Length mm 2080 2080 2200 2100
Width mm 1050 1050 1200 1905
Height mm 1820 1820 2135 2120
Model ICS-75A ICS-100A ICS-125A ICS-150A
Cooling capacity kW 210 280 350 420
10³ kcal/h 180.6 240.8 301 361.2
Power supply V/Ph/Hz 380/3/50
Total power input kW 65.5 87 109 131
Rated current A 120 160 200 240
Compressor Type Scroll type
Power kW 60.9 81.2 101.5 121.8
Evaporator Type Shell-and-tube type
Water side pressure 16 bar
Water flow rate m³/h 36.1 48.2 60.2 72.3
L/min 600 803 1003 1204
Pipe connection size DN 80 80 100 100
Noise level dB(A) 73 74 75 76
Weight kg 1850 2450 2950 3450
Dimensions Length mm 3155 4205 5255 6305
Width mm 1905
Height mm 1920

Customized specifications are available upon request. Please Contact Us for details.

Components and Processing
    1. Branded compressors
      Branded compressors
    1. Automated vacuum and refrigerant charging system
      Automated vacuum and refrigerant charging system
    1. 3D CNC pipe bending machine
      3D CNC pipe bending machine
    1. Automated welding system
      Automated welding system

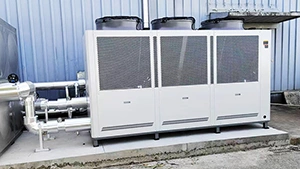

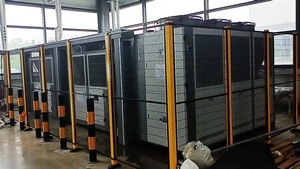

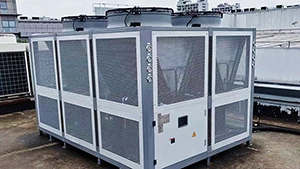

Customer Application Site
  • Customer Application Site
  • Customer Application Site
  • Customer Application Site

With over 20 years of experience in the industrial cooling industry, KANSA designs and manufactures a variety of industrial chillers and process temperature control equipment in-house to ensure consistent quality, reliable operation and exceptional temperature stability of ±0.05°C. The company holds CE, ISO9001-2016, ISO45001 and other international certifications, serving more than 70,000 customers worldwide.
