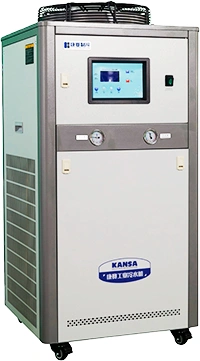

Hydraulic Oil Chiller

Hydraulic Oil Chiller
    • Model

      Model: COA-1.6~COA-116

    • Cooling Capacity

      Cooling Capacity: 1.6-116.0kW

    • Temperature precision

      Temperature precision: ±0.5/±1.5°C

    • High Efficiency & Energy Saving
      High Efficiency & Energy Saving
    • Intelligent Control
      Intelligent Control
    • Multiple Safety Features
      Multiple Safety Features
    • Durable Construction
      Durable Construction
    • Easy to Operate
      Easy to Operate
    • Simple Maintenance
      Simple Maintenance
    • CE Certification
      CE Certification
    • Certified Manufacturing Facility
      Certified Manufacturing Facility

The hydraulic oil chiller is a critical device for maintaining stable operation of hydraulic systems. It uses forced refrigeration to precisely control the operating temperature of hydraulic oil, effectively preventing efficiency loss, seal aging, and component damage caused by excessive oil temperature. Widely used in injection molding machines, die-casting machines, and hydraulic power units, it significantly improves system stability, extends hydraulic oil service life, and ensures continuous production and machining precision.

Request a Quote

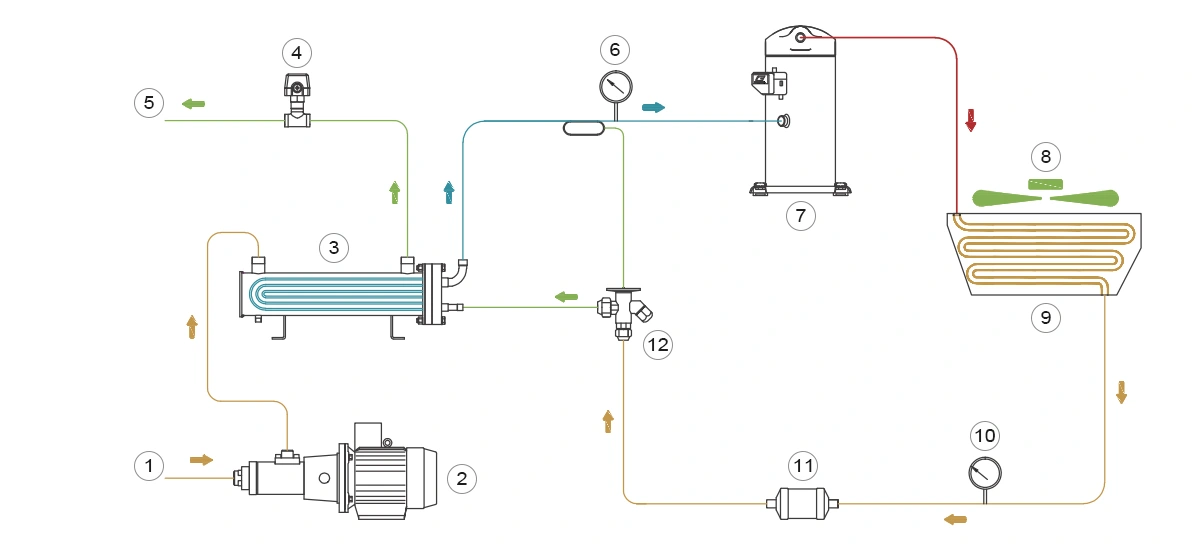

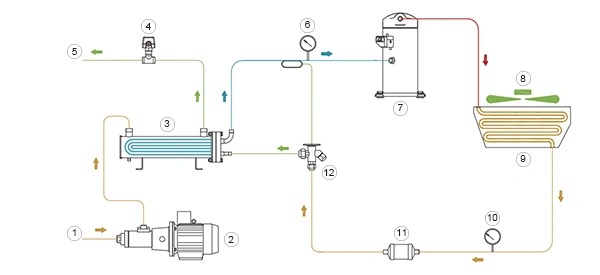

System Diagram
Hydraulic Oil Chiller
  • Chilled oil outlet
  • Pump
  • Evaporator
  • Flow switch
  • Chilled oil inlet
  • Pressure gauge
  • Compressor
  • Cooling fan
  • Condenser
  • Pressure gauge
  • Dry filter
  • Expansion valve
Specifications
Model COA-1.6 COA-2.5 COA-4.0 COA-6.0 COA-9.0 COA-15 COA-23
Cooling capacity kW 1.6 2.5 4 6 9 15 23
10³ kcal/h 1.4 2.2 3.5 5.2 7.8 12.9 18.9
Power supply V/Ph/Hz 380/3/50
Total power input kW 1.4 1.7 3.2 3.6 4 5.9 9.1
Rated current A 5.1 6.4 12 13.4 9.2 12.3 21.2
Temperature control Constant temperature type /ambient temperature homogeneous
Condenser type High efficiency internal thread fin type
Compressor Type Rotor type Scroll type
Power kW 0.5 0.8 1.5 1.9 2.3 4.2 6.9
Oil pump Power kW 0.75 0.75 1.5 1.5 1.5 1.5 1.5
Flow rate L/min 20 20 40 40 40 60 90
Safety protection High/low pressure, overload, flow, over-temperature protection
Pipe connection size DN 15 15 20 20 20 25 32
Noise level dB(A) 60 60 62 62 65 65 66
Weight kg 50 68 105 130 150 180 265
Dimensions Length mm 420 500 600 600 680 750 1350
Width mm 420 500 600 600 680 750 680
Height mm 815 950 1160 1160 1360 1480 1360
Model COA-29 COA-35 COA-45 COA-58 COA-69 COA-86 COA-116
Cooling capacity kW 29 35 45 58 69 86 116
10³ kcal/h 25 30.1 37.8 50.3 59.3 74.1 100
Power supply V/Ph/Hz 380/3/50
Total power input kW 12.8 14.3 17 23 26 35 45
Rated current A 27.5 27.4 31 45 50 66 83
Temperature control Constant temperature type /ambient temperature homogeneous
Condenser type High efficiency internal thread fin type
Compressor Type Scroll type
Power kW 8.7 10.1 12.5 17.4 20.2 25 34.8
Oil pump Power kW 3 3 3 4 4 7.5 7.5
Flow rate L/min 170 170 170 250 250 390 390
Safety protection High/low pressure, overload, flow, over-temperature protection
Pipe connection size DN 40 40 40 50 50 65 65
Noise level dB(A) 67 68 69 69 69 69 70
Weight kg 310 330 420 620 670 780 1100
Dimensions Length mm 1510 1510 1785 2080 2080 2080 2200
Width mm 750 750 915 1050 1050 1050 1200
Height mm 1480 1480 1630 1720 1720 1720 2135

Customized specifications are available upon request. Please Contact Us for details.
  • Energy Efficiency
  • Innovation
  • Safety Features
  • Precision Manufacturing
Energy Performance
    • Internally Threaded Copper Tubes
      25% Improve heat exchange efficiency by approximately
      Internally Threaded Copper Tubes
    • Wave-Shaped Fins
      20% Improve heat transfer efficiency by about
      Wave-Shaped Fins
    • PID-Controlled Electronic Expansion Valve
      6% Reduces total power consumption by about
      PID-Controlled Electronic Expansion Valve
    • Optimized Refrigerant Distribution System
      20% Improves distribution uniformity by approximately
      Optimized Refrigerant Distribution System
    • Optimized Airflow Path Design
      10% Enhances air circulation by about
      Optimized Airflow Path Design
    • Automatic Air Volume Control
      20% Lowers fan power consumption by approximately
      Automatic Air Volume Control
Innovation
    • Stainless Steel Evaporator
      Stainless Steel Evaporator
    • V-Shaped Condenser
      V-Shaped Condenser
    • Cylindrical Water Tank
      Cylindrical Water Tank
    • Low-Noise Fan
      Low-Noise Fan
    • Touch-Screen Controller
      Touch-Screen Controller
    • Advanced Control System
      Advanced Control System
Multiple Safety Features
    • Over-Temperature Protection
      Over-Temperature Protection
    • Current Protection
      Current Protection
    • Self-Diagnosis
      Self-Diagnosis
    • Intelligent Antifreeze
      Intelligent Antifreeze
    • Water Flow Alarm
      Water Flow Alarm
    • Water Level Alarm
      Water Level Alarm
    • Pressure Alarm
      Pressure Alarm
    • Timer On/Off
      Timer On/Off
Precision Manufacturing
    • Precision Sheet Metal Forming
      Precision Sheet Metal Forming
    • Stamped Flow Guide Rings
      Stamped Flow Guide Rings
    • Robotic Bending System (Bystronic, Switzerland)
      Robotic Bending System (Bystronic, Switzerland)
    • Laser Welding Technology
      Laser Welding Technology
    • Automated Insulation Material Cutting
      Automated Insulation Material Cutting
    • Automated Joint Welding
      Automated Joint Welding

With over 20 years of experience in the industrial cooling industry, KANSA designs and manufactures a variety of industrial chillers and process temperature control equipment in-house to ensure consistent quality, reliable operation and exceptional temperature stability of ±0.05°C. The company holds CE, ISO9001-2016, ISO45001 and other international certifications, serving more than 70,000 customers worldwide.
