Cutting Fluid Cooler (Coolant Chiller)

Cutting Fluid Cooler (Coolant Chiller)
    • Model

      Model: ICQ-0.6~ICQ-15

    • Cooling Capacity

      Cooling Capacity: 1.6-45.0kW

    • Temperature precision

      Temperature precision: ±0.5/±1.5°C

    • High Efficiency & Energy Saving
      High Efficiency & Energy Saving
    • Intelligent Control
      Intelligent Control
    • Multiple Safety Features
      Multiple Safety Features
    • Durable Construction
      Durable Construction
    • Easy to Operate
      Easy to Operate
    • Simple Maintenance
      Simple Maintenance
    • CE Certification
      CE Certification
    • Certified Manufacturing Facility
      Certified Manufacturing Facility

The cutting fluid (coolant) chiller is a dedicated support unit for CNC machine tools and machining centers. It continuously cools cutting fluid through forced refrigeration, helping maintain tool hardness, extend tool life, and ensure machining accuracy by preventing thermal deformation caused by high temperatures. Additionally, it inhibits bacterial growth, prolongs the service life of the cutting fluid, and is a key auxiliary device for improving the quality and efficiency of automated machining processes.

Request a Quote

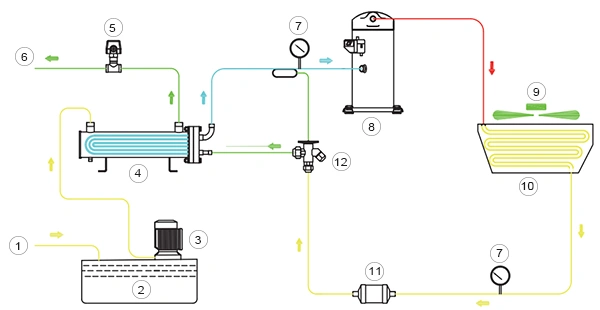

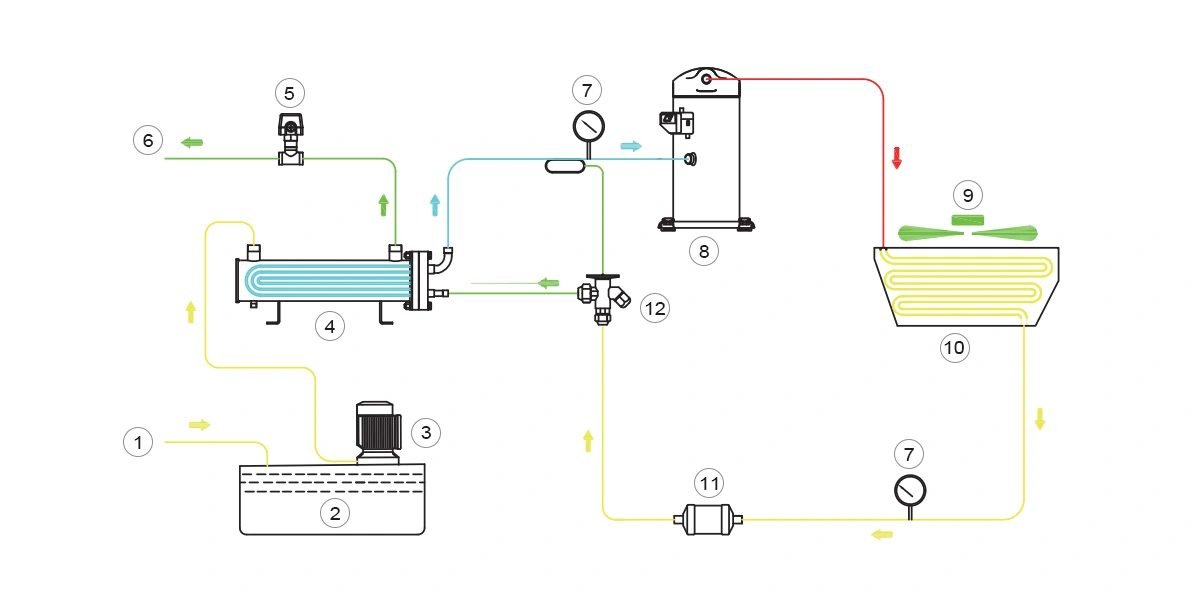

System Diagram
Cutting Fluid Cooler (Coolant Chiller)
  • Inlet
  • Tank
  • Pump
  • Evaporator
  • Flow switch
  • Outlet
  • Pressure gauge
  • Compressor
  • Cooling fan
  • Condenser
  • Dry filter
  • Expansion valve
Specifications
Model ICQ-0.6 ICQ-1 ICQ-1.5 ICQ-2 ICQ-3 ICQ-4
Cooling capacity kW 1.6 2.7 3.5 5.2 9 12
10³ kcal/h 1.4 2.3 3 4.5 7.8 10.3
Power supply V/Ph/Hz 220/1/50 380/3/50
Total power input kW 0.62 0.9 1.4 1.8 2.5 3.4
Rated current A 2.8 4.1 6.5 8.3 5.2 6.6
Compressor Type High efficiency rotor type Flexible scroll type
Power kW 0.5 0.8 1.2 1.6 2.3 3.2
Condenser type High efficiency internal thread fin type
Evaporator type Stainless steel coil type
Noise level dB(A) 56 58 62 63 63 67
Weight kg 40 70 80 90 110 140
Dimensions Length mm 420 500 600 600 680 750
Width mm 420 500 600 600 680 750
Height mm 815 950 1160 1160 1360 1480
Model ICQ-5 ICQ-6 ICQ-8 ICQ-10 ICQ-12 ICQ-15
Cooling capacity kW 15 18 24 30 35 45
10³ kcal/h 12.9
Power supply V/Ph/Hz 380/3/50
Total power input kW 4.7 5.7 7.6 9.8 11.3 13.8
Rated current A 10 10.3 18 21.5 21.4 25
Compressor Type Flexible scroll type
Power kW 4.2 5.1 7.6 8.7 10.1 12.5
Condenser type High efficiency internal thread fin type
Evaporator type Stainless steel coil type
Noise level dB(A) 67 68 69 69 70 70
Weight kg 180 200 230 260 290 320
Dimensions Length mm 750 750 1350 1510 1510 1785
Width mm 750 750 680 750 750 915
Height mm 1480 1480 1360 1480 1480 1630

Customized specifications are available upon request. Please Contact Us for details.
  • Energy Efficiency
  • Innovation
  • Safety Features
  • Precision Manufacturing
  • Various Applications
Energy Performance
    • Internally Threaded Copper Tubes
      25% Improve heat exchange efficiency by approximately
      Internally Threaded Copper Tubes
    • Wave-Shaped Fins
      20% Improve heat transfer efficiency by about
      Wave-Shaped Fins
    • PID-Controlled Electronic Expansion Valve
      6% Reduces total power consumption by about
      PID-Controlled Electronic Expansion Valve
    • Optimized Refrigerant Distribution System
      20% Improves distribution uniformity by approximately
      Optimized Refrigerant Distribution System
    • Optimized Airflow Path Design
      10% Enhances air circulation by about
      Optimized Airflow Path Design
    • Automatic Air Volume Control
      20% Lowers fan power consumption by approximately
      Automatic Air Volume Control
Innovation

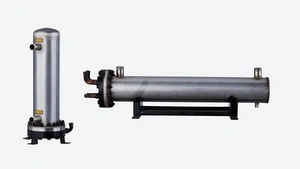

    • Stainless Steel Evaporator
      Stainless Steel Evaporator

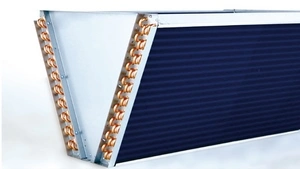

    • V-Shaped Condenser
      V-Shaped Condenser

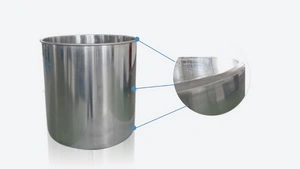

    • Cylindrical Water Tank
      Cylindrical Water Tank
    • Low-Noise Fan
      Low-Noise Fan

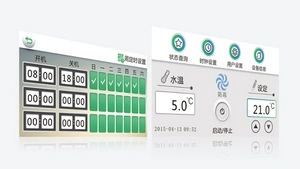

    • Touch-Screen Controller
      Touch-Screen Controller
    • Advanced Control System
      Advanced Control System
Multiple Safety Features
    • Over-Temperature Protection
      Over-Temperature Protection
    • Current Protection
      Current Protection
    • Self-Diagnosis
      Self-Diagnosis
    • Intelligent Antifreeze
      Intelligent Antifreeze
    • Water Flow Alarm
      Water Flow Alarm
    • Water Level Alarm
      Water Level Alarm
    • Pressure Alarm
      Pressure Alarm
    • Timer On/Off
      Timer On/Off
Precision Manufacturing

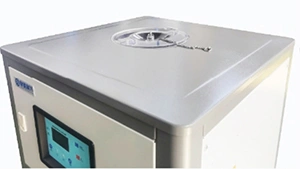

    • Precision Sheet Metal Forming
      Precision Sheet Metal Forming
    • Stamped Flow Guide Rings
      Stamped Flow Guide Rings

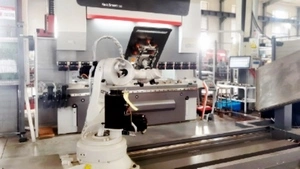

    • Robotic Bending System (Bystronic, Switzerland)
      Robotic Bending System (Bystronic, Switzerland)
    • Laser Welding Technology
      Laser Welding Technology

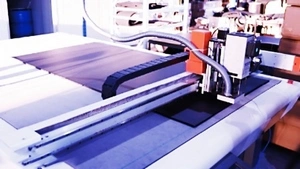

    • Automated Insulation Material Cutting
      Automated Insulation Material Cutting
    • Automated Joint Welding
      Automated Joint Welding

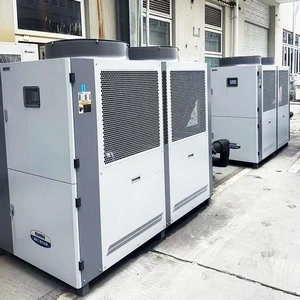

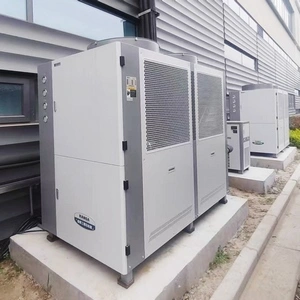

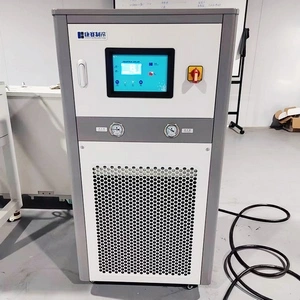

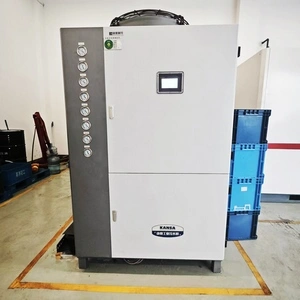

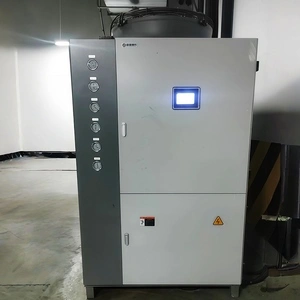

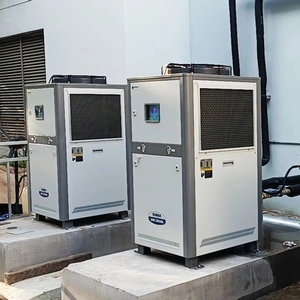

Customer Application Site
  • Customer Application Site
  • Customer Application Site
  • Customer Application Site
  • Customer Application Site
  • Customer Application Site
  • Customer Application Site

With over 20 years of experience in the industrial cooling industry, KANSA designs and manufactures a variety of industrial chillers and process temperature control equipment in-house to ensure consistent quality, reliable operation and exceptional temperature stability of ±0.05°C. The company holds CE, ISO9001-2016, ISO45001 and other international certifications, serving more than 70,000 customers worldwide.
