Cutting Fluid Cooler (Immersion Coolant Chiller)

Cutting Fluid Cooler (Immersion Coolant Chiller)
    • Model

      Model: ICQ-0.6J~ICQ-12J

    • Cooling Capacity

      Cooling Capacity: 0.6-35kW

    • Temperature precision

      Temperature precision: ±0.5/±1.5°C

    • High Efficiency & Energy Saving
      High Efficiency & Energy Saving
    • Intelligent Control
      Intelligent Control
    • Multiple Safety Features
      Multiple Safety Features
    • Durable Construction
      Durable Construction
    • Easy to Operate
      Easy to Operate
    • Simple Maintenance
      Simple Maintenance
    • CE Certification
      CE Certification
    • Certified Manufacturing Facility
      Certified Manufacturing Facility

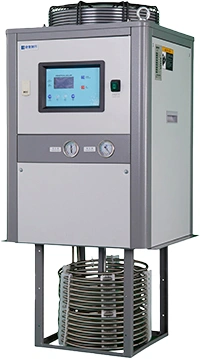

The cutting fluid cooler (immersion coolant chiller) features a compact design with an evaporator that can be directly immersed in a machine tank or a centralized fluid supply reservoir, providing efficient, direct heat transfer. By eliminating the need for external pumps and piping, it achieves a highly compact structure, flexible and convenient installation, and cooling efficiency. Optimized for space-constrained machines or small centralized cooling systems, it is an ideal solution for precision machining equipment requiring stable temperature control.

Request a Quote

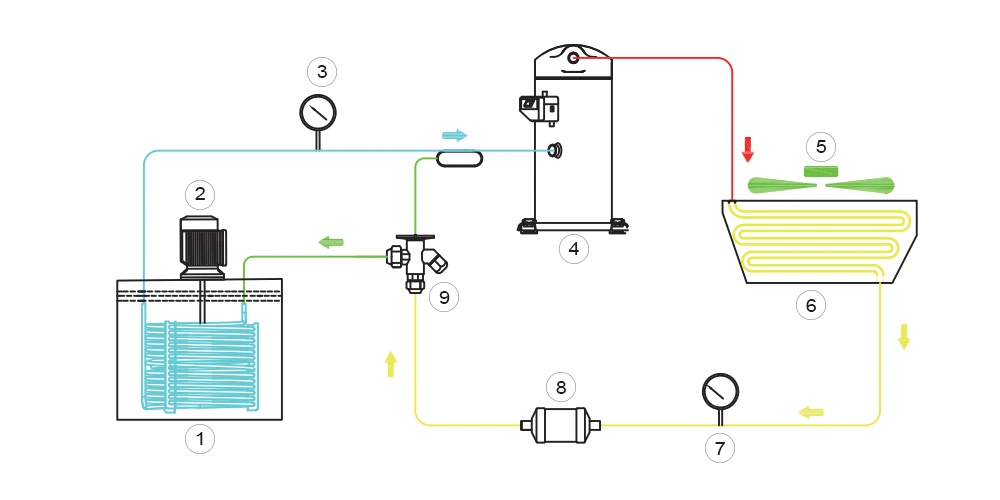

System Diagram
Cutting Fluid Cooler (Coolant Chiller)
  • Tank
  • Pump
  • Pressure gauge
  • Compressor
  • Cooling fan
  • Condenser
  • Pressure gauge
  • Dry filter
  • Expansion valve
Specifications
Model ICQ-0.6J ICQ-1J ICQ-1.5J ICQ-2J ICQ-3J
Cooling capacity kW 0.6 2.7 3.5 5.2 9
Total power input kW 0.8 1.1 1.5 2.2 3.1
Power supply V/Ph/Hz 220/1/50 380/3/50
Rated current A 3.8 6.6 8.2 10 7
Compressor Type Flexible scroll type
Power kW 0.5 0.8 1.2 1.6 2.3
Condenser type High-efficiency internal thread copper tube fin type
Evaporator type Water tank coil type
Noise level dB(A) 56 58 59 60 61
Weight kg 40 55 75 95 120
Dimensions Length mm 450 500 500 600 680
Width mm 450 500 500 600 680
Height mm 1400 1125 1125 1120 1340
Model ICQ-5J ICQ-6J ICQ-8J ICQ-10J ICQ-12J
Cooling capacity kW 15 18 23 29.5 35
Total power input kW 5.2 5.9 7.9 9.8 11
Power supply V/Ph/Hz 380/3/50
Rated current A 3.8 6.6 8.2 10 7
Compressor Type Flexible scroll type
Power kW 4.2 5.1 6.9 8.7 10.1
Condenser type High-efficiency internal thread copper tube fin type
Evaporator type Water tank coil type
Noise level dB(A) 62 63 64 66 68
Weight kg 150 170 210 260 290
Dimensions Length mm 750 750 1000 1000 1000
Width mm 750 750 1000 1000 1000
Height mm 1790 1990 1935 1935 1935

Customized specifications are available upon request. Please Contact Us for details.
  • Energy Efficiency
  • Innovation
  • Safety Features
  • Precision Manufacturing
Energy Performance
    • Internally Threaded Copper Tubes
      25% Improve heat exchange efficiency by approximately
      Internally Threaded Copper Tubes
    • Wave-Shaped Fins
      20% Improve heat transfer efficiency by about
      Wave-Shaped Fins
    • PID-Controlled Electronic Expansion Valve
      6% Reduces total power consumption by about
      PID-Controlled Electronic Expansion Valve
    • Optimized Refrigerant Distribution System
      20% Improves distribution uniformity by approximately
      Optimized Refrigerant Distribution System
    • Optimized Airflow Path Design
      10% Enhances air circulation by about
      Optimized Airflow Path Design
    • Automatic Air Volume Control
      20% Lowers fan power consumption by approximately
      Automatic Air Volume Control
Innovation
    • Stainless Steel Evaporator
      Stainless Steel Evaporator
    • V-Shaped Condenser
      V-Shaped Condenser
    • Cylindrical Water Tank
      Cylindrical Water Tank
    • Low-Noise Fan
      Low-Noise Fan
    • Touch-Screen Controller
      Touch-Screen Controller
    • Advanced Control System
      Advanced Control System
Multiple Safety Features
    • Over-Temperature Protection
      Over-Temperature Protection
    • Current Protection
      Current Protection
    • Self-Diagnosis
      Self-Diagnosis
    • Intelligent Antifreeze
      Intelligent Antifreeze
    • Water Flow Alarm
      Water Flow Alarm
    • Water Level Alarm
      Water Level Alarm
    • Pressure Alarm
      Pressure Alarm
    • Timer On/Off
      Timer On/Off
Precision Manufacturing
    • Precision Sheet Metal Forming
      Precision Sheet Metal Forming
    • Stamped Flow Guide Rings
      Stamped Flow Guide Rings
    • Robotic Bending System (Bystronic, Switzerland)
      Robotic Bending System (Bystronic, Switzerland)
    • Laser Welding Technology
      Laser Welding Technology
    • Automated Insulation Material Cutting
      Automated Insulation Material Cutting
    • Automated Joint Welding
      Automated Joint Welding

With over 20 years of experience in the industrial cooling industry, KANSA designs and manufactures a variety of industrial chillers and process temperature control equipment in-house to ensure consistent quality, reliable operation and exceptional temperature stability of ±0.05°C. The company holds CE, ISO9001-2016, ISO45001 and other international certifications, serving more than 70,000 customers worldwide.
