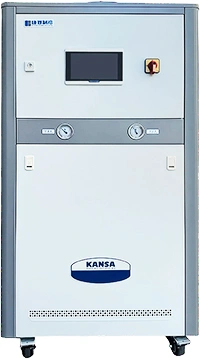

Temperature Control Unit, -25℃ to 100℃

Industrial heating/cooling units providing cooling and heating from -25°C to 100°C for battery, photovoltaic, energy storage, and semiconductor sectors
Temperature Control Unit, -25℃ to 100℃
    • Model

      Model: NEC-2AL/WL ~ NEC-15AL/WL

    • Cooling Capacity

      Cooling Capacity: 2.5-45kW

    • Temperature precision

      Temperature precision: ±0.1/±0.2°C

    • High Efficiency & Energy Saving
      High Efficiency & Energy Saving
    • Intelligent Control
      Intelligent Control
    • Multiple Safety Features
      Multiple Safety Features
    • Durable Construction
      Durable Construction
    • Easy to Operate
      Easy to Operate
    • Simple Maintenance
      Simple Maintenance
    • CE Certification
      CE Certification
    • Certified Manufacturing Facility
      Certified Manufacturing Facility
Request a Quote
Specifications
Model NEC-2AL NEC-3AL NEC-5AL NEC-6AL
NEC-2WL NEC-3WL NEC-5WL NEC-6WL
Cooling capacity -25℃ liquid temperature 2.5kW 3.7kW 6.5kW 7.5kW
20℃ liquid temperature 6kW 9kW 15kW 18kW
Flow Flow range 2-15L/min 2-20L/min 3-30L/min 4-40L/min
Flow accuracy ±0.2L/min ±0.2L/min ±0.2L/min ±0.2L/min
Outlet circuits Single/dual/triple optional
Temperature Temperature control range -25~100℃
Temperature control precision ±0.1/±0.2℃
Temperature sensor PT100
Pressure Pressure display/control Pressure display and adjustable pressure control
Pressure range 2-3bar
Communication interface Modbus RTU protocol, RS485 port, optional CAN bus, or Ethernet (TCP/IP)
Power supply 380V/3Ph/50Hz (non-standard power supply customizable)
Compressor type Imported flexible scroll compressor
Water pump type Stainless steel multistage variable-frequency water pump
Evaporator type Stainless steel coil type/stainless steel shell-and-tube type
Condenser type (air-cooled) Hydrophilic aluminum fins + internal thread copper tubes
Condenser type (water-cooled) Shell-and-tube type
Expansion device Expansion valve
Control panel 7-inch touch screen
Safety protection Pressure, current, temperature, flow, liquid level, and power protection
Pipe connection size G-3/4”
Refrigerant type R404A
Model NEC-8AL NEC-10AL NEC-12AL NEC-15AL
NEC-8WL NEC-10WL NEC-12WL NEC-15WL
Cooling capacity -25℃ liquid temperature 9.8kW 12.5kW 15kW 19kW
20℃ liquid temperature 24kW 30kW 36kW 45kW
Flow Flow range 4-40L/min 4-40L/min 5-50L/min 5-50L/min
Flow accuracy ±0.2L/min
Outlet circuits Single/dual/triple optional
Temperature Temperature control range -25~100℃
Temperature control precision ±0.1/±0.2℃
Temperature sensor PT100
Pressure Pressure display/control Pressure display and adjustable pressure control
Pressure range 2-3bar
Communication interface Modbus RTU protocol, RS485 port, optional CAN bus, or Ethernet (TCP/IP)
Power supply 380V/3Ph/50Hz (non-standard power supply customizable)
Compressor type Imported flexible scroll compressor
Water pump type Stainless steel multistage variable-frequency water pump
Evaporator type Stainless steel coil type/stainless steel shell-and-tube type
Condenser type (air-cooled) Hydrophilic aluminum fins + internal thread copper tubes
Condenser type (water-cooled) Shell-and-tube type
Expansion device Expansion valve
Control panel 7-inch touch screen
Safety protection Pressure, current, temperature, flow, liquid level, and power protection
Pipe connection size G-3/4”
Refrigerant type R404A

Customized specifications are available upon request. Please Contact Us for details.
  • Energy Efficiency
  • Innovation
  • Safety Features
  • Precision Manufacturing
Energy Performance
    • Internally Threaded Copper Tubes
      25% Improve heat exchange efficiency by approximately
      Internally Threaded Copper Tubes
    • Wave-Shaped Fins
      20% Improve heat transfer efficiency by about
      Wave-Shaped Fins
    • PID-Controlled Electronic Expansion Valve
      6% Reduces total power consumption by about
      PID-Controlled Electronic Expansion Valve
    • Optimized Refrigerant Distribution System
      20% Improves distribution uniformity by approximately
      Optimized Refrigerant Distribution System
    • Optimized Airflow Path Design
      10% Enhances air circulation by about
      Optimized Airflow Path Design
    • Automatic Air Volume Control
      20% Lowers fan power consumption by approximately
      Automatic Air Volume Control
Innovation
    • Stainless Steel Evaporator
      Stainless Steel Evaporator
    • V-Shaped Condenser
      V-Shaped Condenser
    • Cylindrical Water Tank
      Cylindrical Water Tank
    • Low-Noise Fan
      Low-Noise Fan
    • Touch-Screen Controller
      Touch-Screen Controller
    • Advanced Control System
      Advanced Control System
Multiple Safety Features
    • Over-Temperature Protection
      Over-Temperature Protection
    • Current Protection
      Current Protection
    • Self-Diagnosis
      Self-Diagnosis
    • Intelligent Antifreeze
      Intelligent Antifreeze
    • Water Flow Alarm
      Water Flow Alarm
    • Water Level Alarm
      Water Level Alarm
    • Pressure Alarm
      Pressure Alarm
    • Timer On/Off
      Timer On/Off
Precision Manufacturing
    • Precision Sheet Metal Forming
      Precision Sheet Metal Forming
    • Stamped Flow Guide Rings
      Stamped Flow Guide Rings
    • Robotic Bending System (Bystronic, Switzerland)
      Robotic Bending System (Bystronic, Switzerland)
    • Laser Welding Technology
      Laser Welding Technology
    • Automated Insulation Material Cutting
      Automated Insulation Material Cutting
    • Automated Joint Welding
      Automated Joint Welding

With over 20 years of experience in the industrial cooling industry, KANSA designs and manufactures a variety of industrial chillers and process temperature control equipment in-house to ensure consistent quality, reliable operation and exceptional temperature stability of ±0.05°C. The company holds CE, ISO9001-2016, ISO45001 and other international certifications, serving more than 70,000 customers worldwide.
