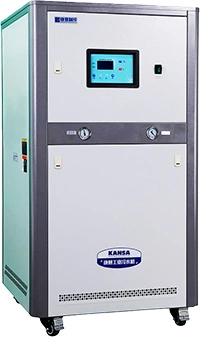

9.9-240kW Water-Cooled Industrial Chiller
-
Model: ICW-3~ICW-70
-
Cooling Capacity: 9.9-240.0kW
-
Temperature precision: ±0.1/±0.5/±1.5℃
-
High Efficiency & Energy Saving
-
Intelligent Control
-
Multiple Safety Features
-
Durable Construction
-
Easy to Operate
-
Simple Maintenance
-
CE Certification
-
Certified Manufacturing Facility
The water-cooled industrial chiller is renowned for its efficiency and stable cooling performance. By using circulating water from a cooling tower to condense the refrigerant, it achieves energy efficiency and more stable operation compared to air-cooled models, making it particularly suitable for large-scale industrial facilities and high-temperature environments. The water-cooled chiller features a compact structure but requires a supporting cooling water system for proper operation.
System Diagram
- Water filter
- Chilled water inlet
- Flow switch
- Evaporator
- Pressure gauge
- Compressor
- Condenser
- Pressure gauge
- Dry filter
- Expansion valve
- Water supply
- Water level
- Sensor
- Tank
- Chilled water outlet
Model
Specifications

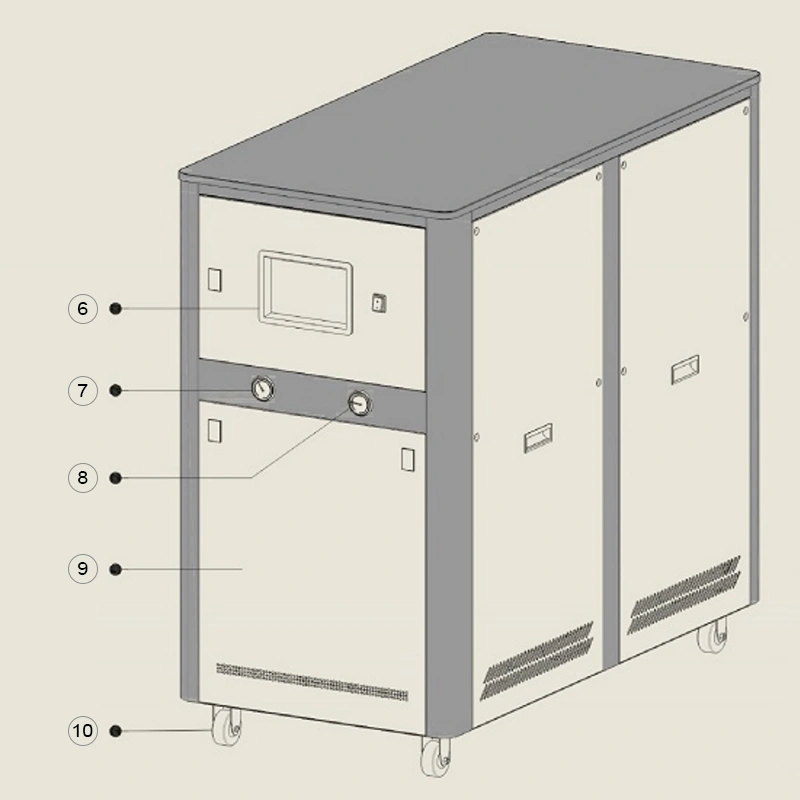

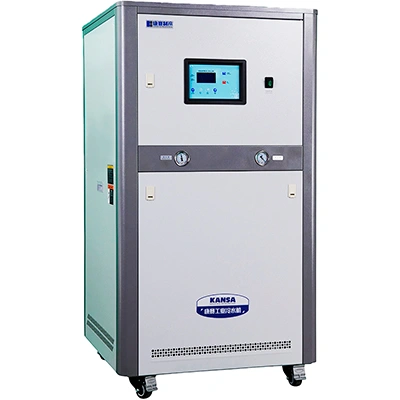

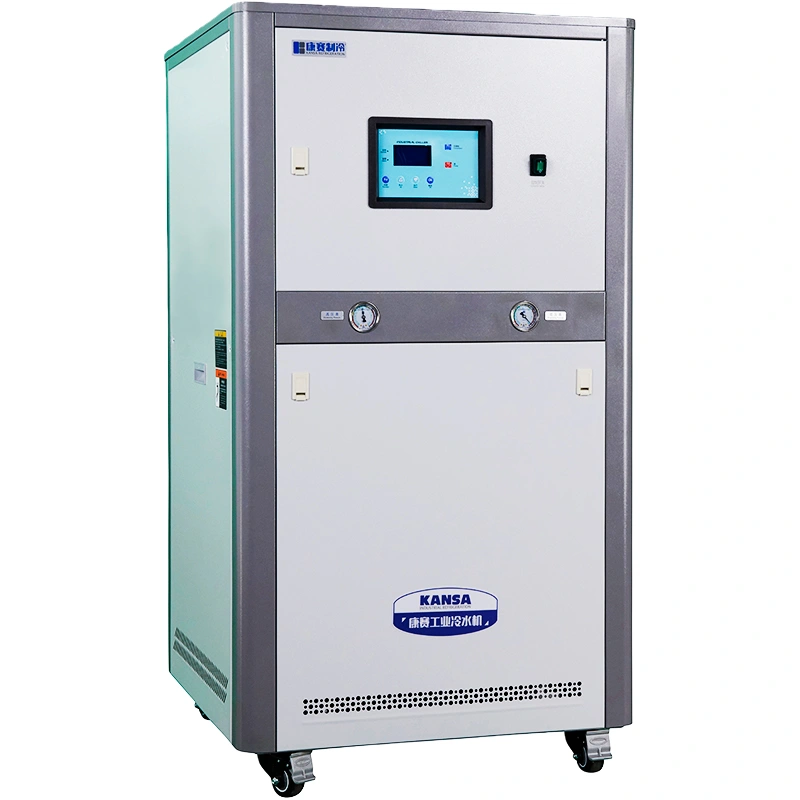

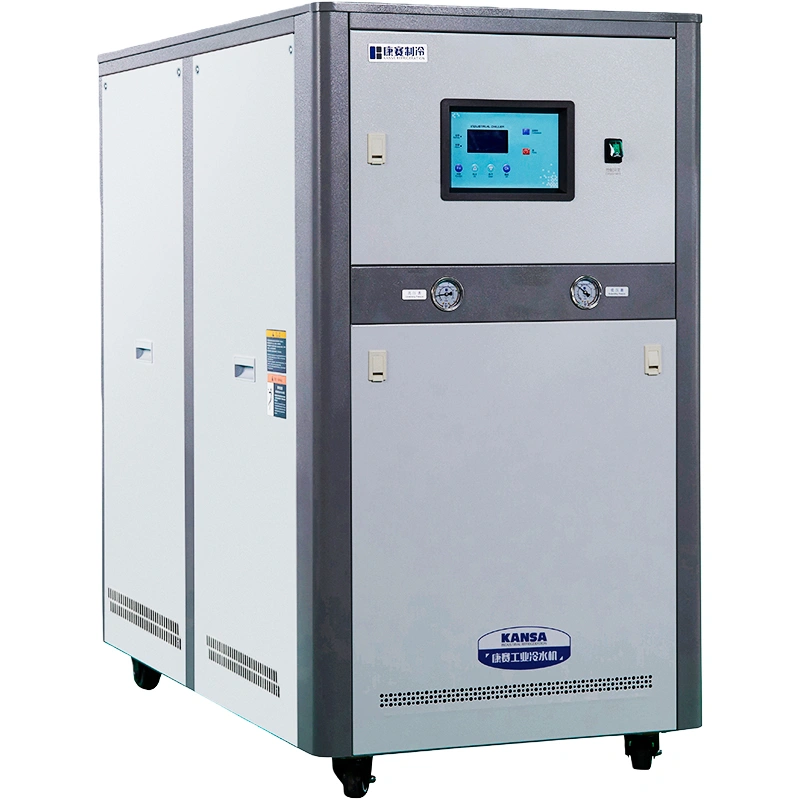

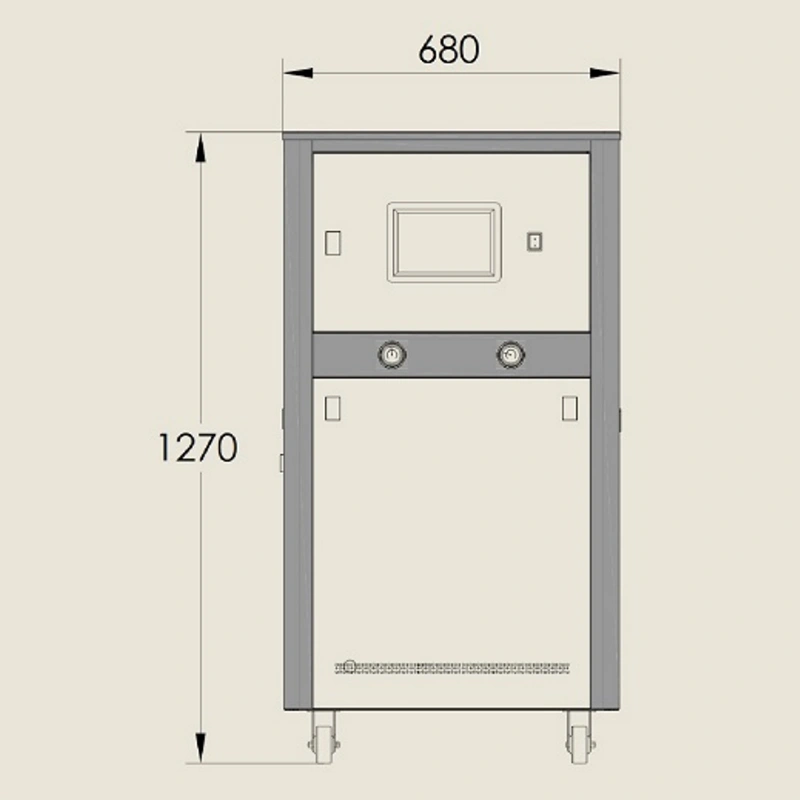

9.9kW Water-Cooled Industrial Chiller, ICW-3
- Cooling capacity: 9.9kW
- Total power input: 2.7kW
- Evaporator: stainless steel coil type
- Pump head: 24m
- Water flow rate: 2.1m³/h
- Water tank capacity: 60L
- Pipe connection size: 25DN

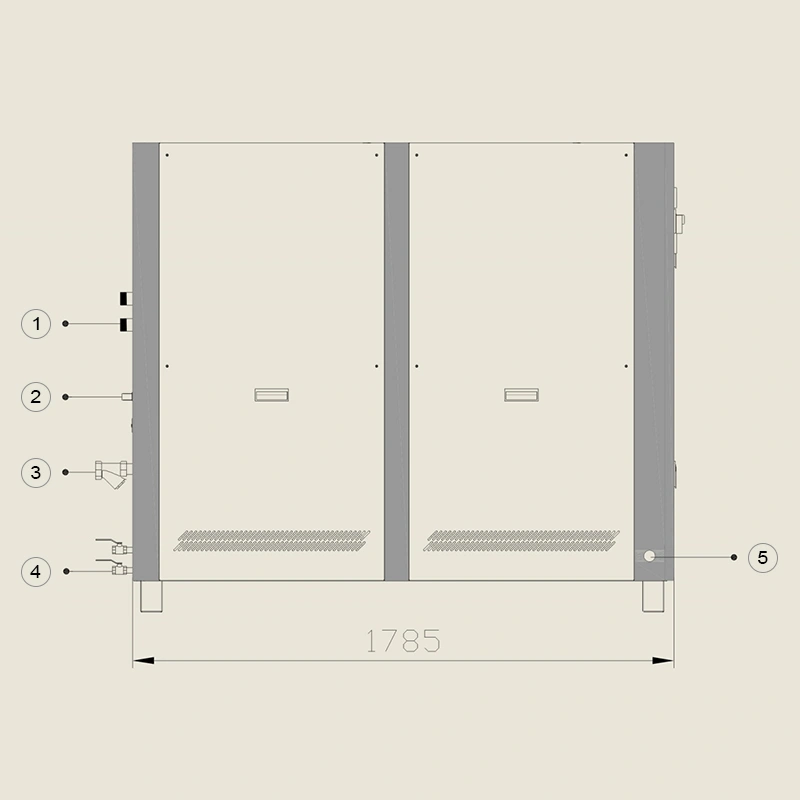

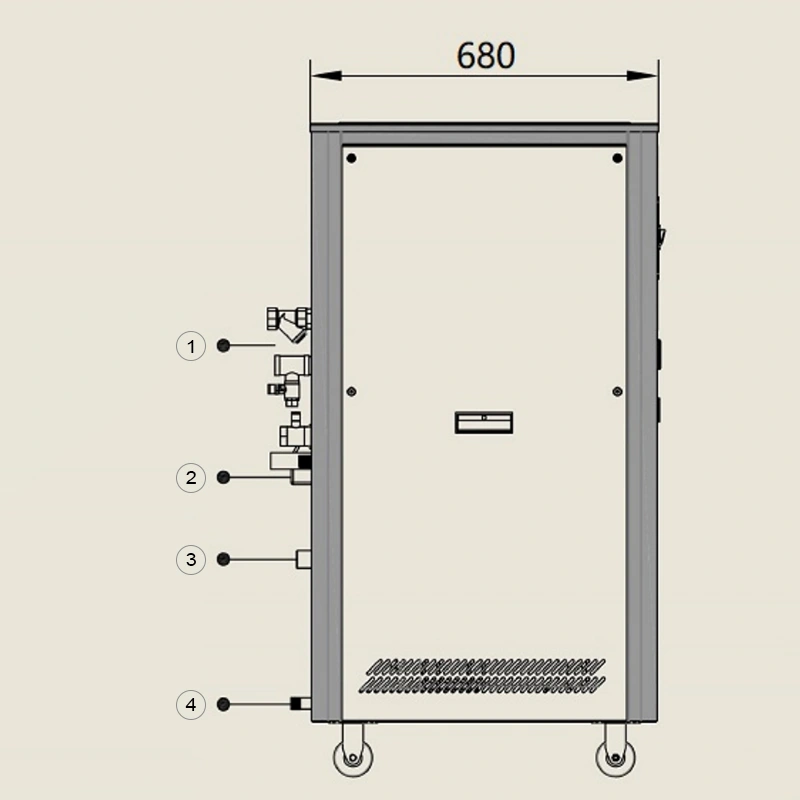

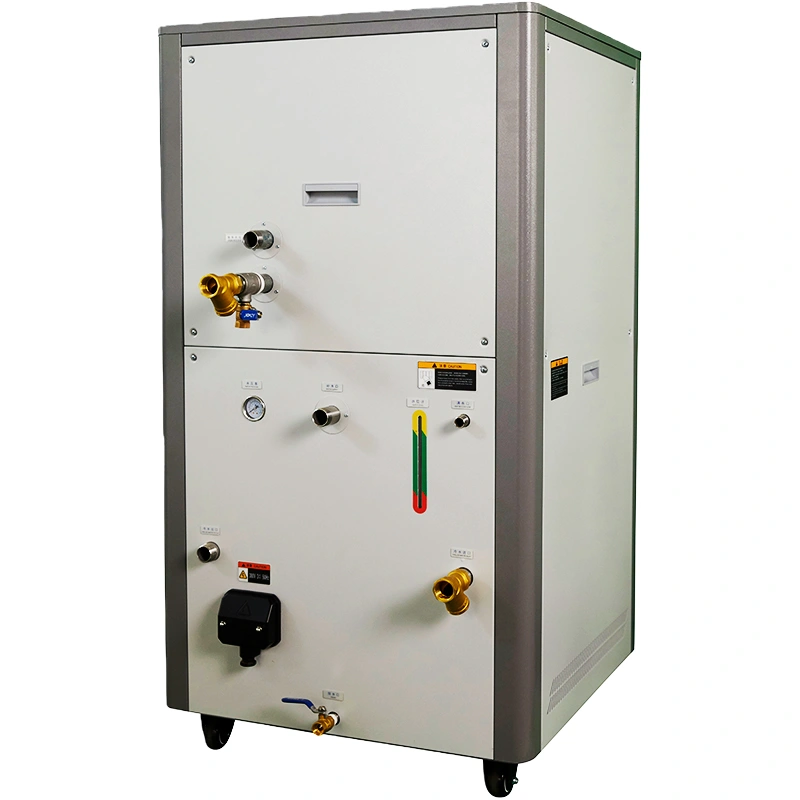

- Cooling water inlet/outlet
- Terminal box
- Chilled water inlet/outlet
- Drain port

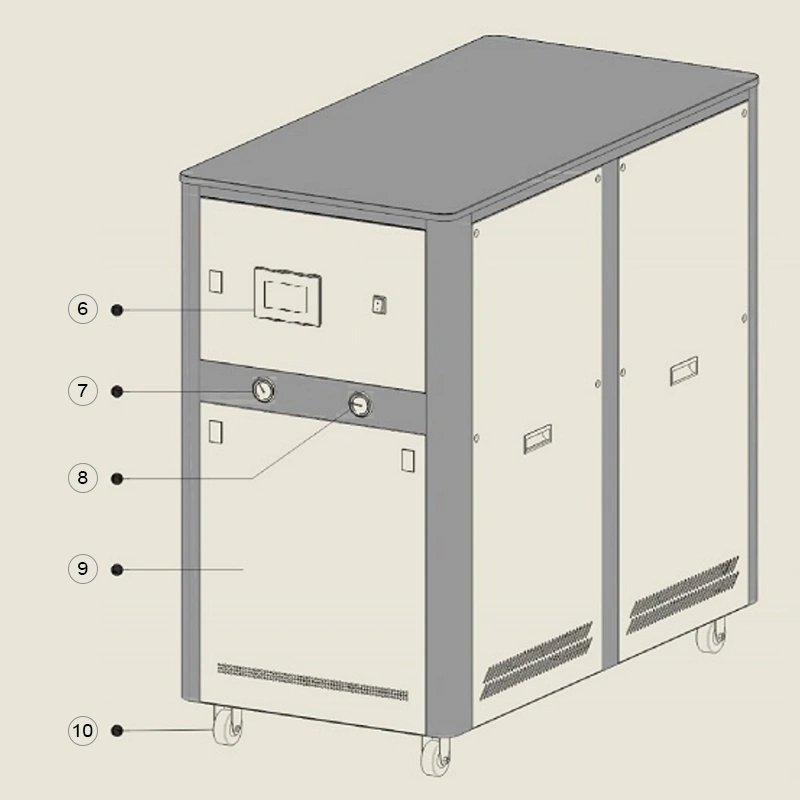

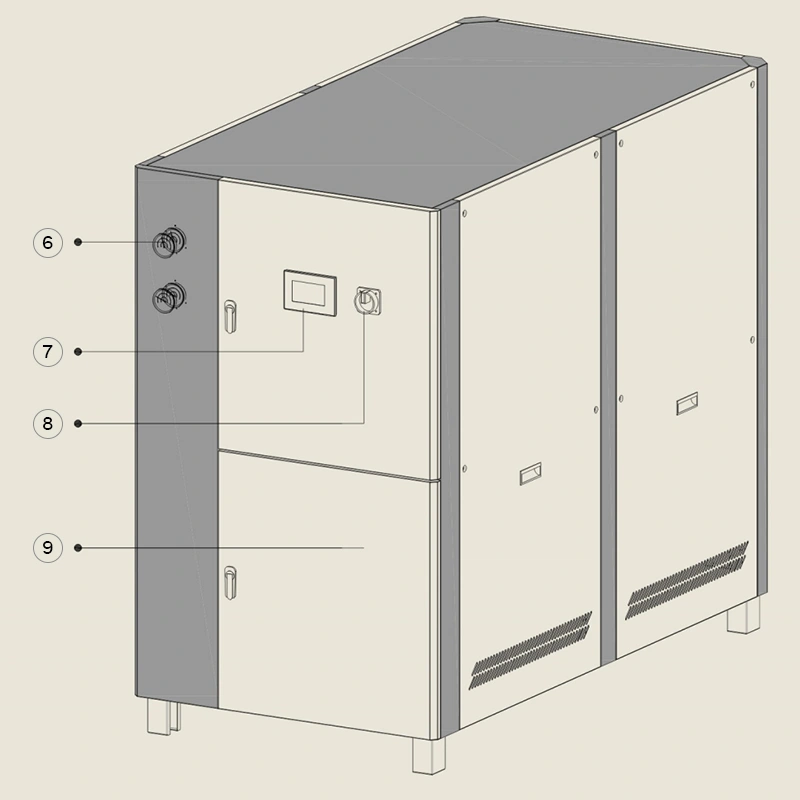

- Control panel
- High-pressure gauge
- Low-pressure gauge
- Service access door
- Caster wheels

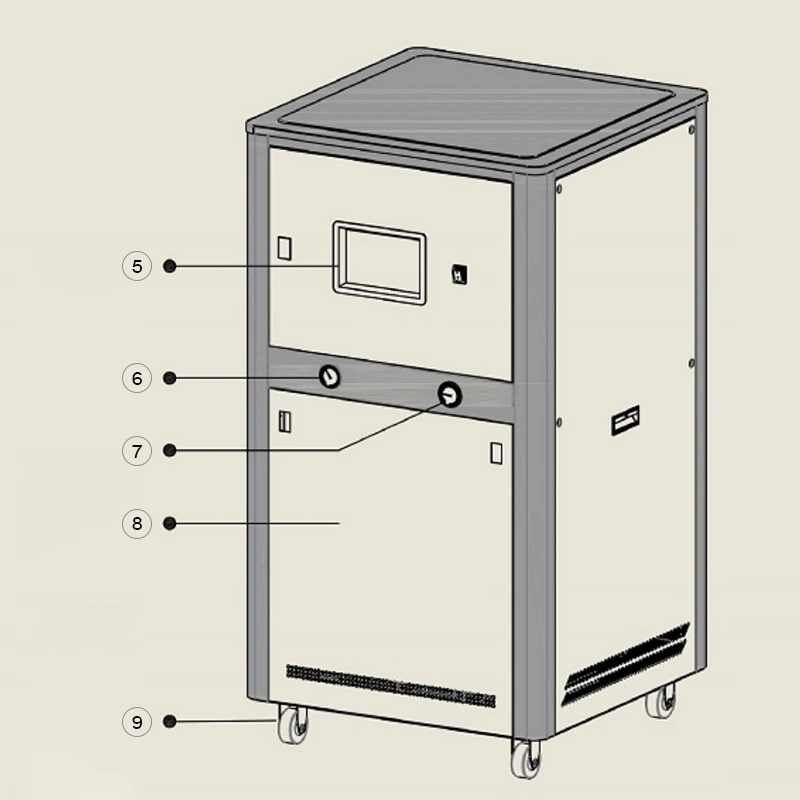

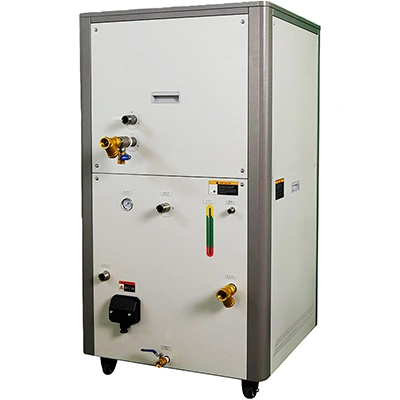

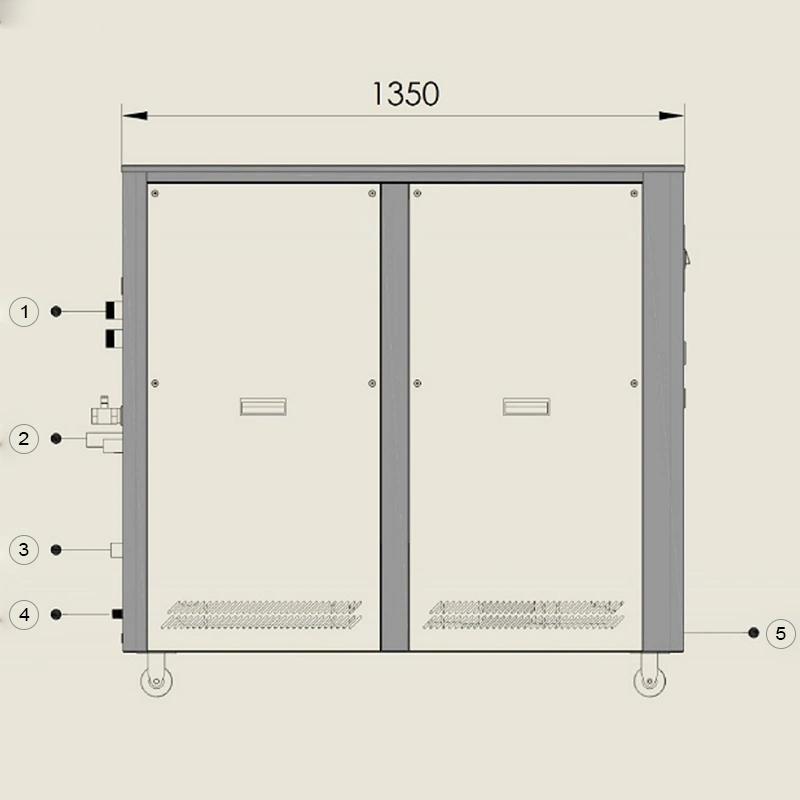

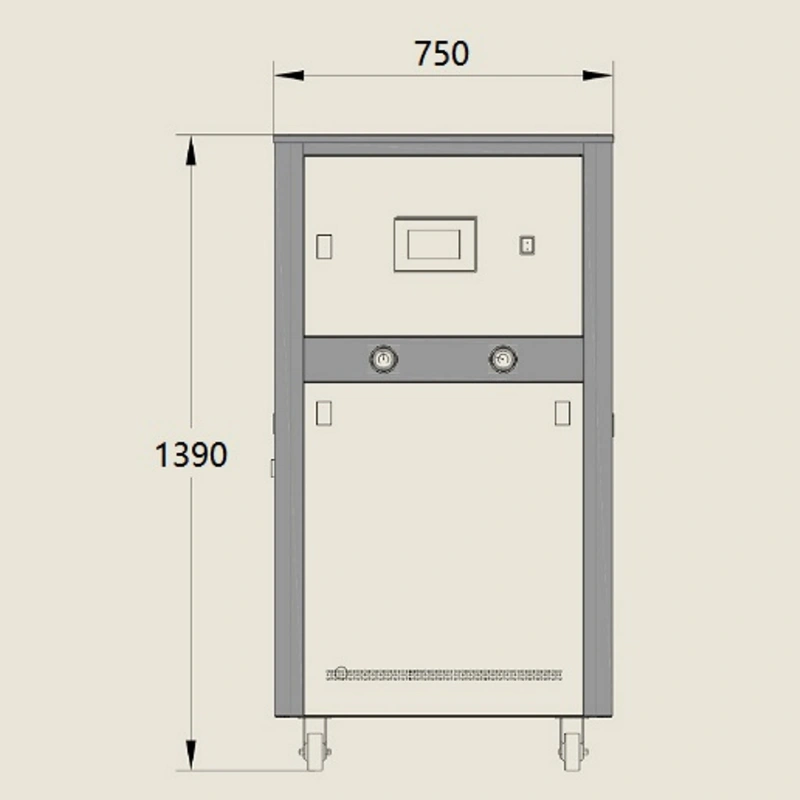

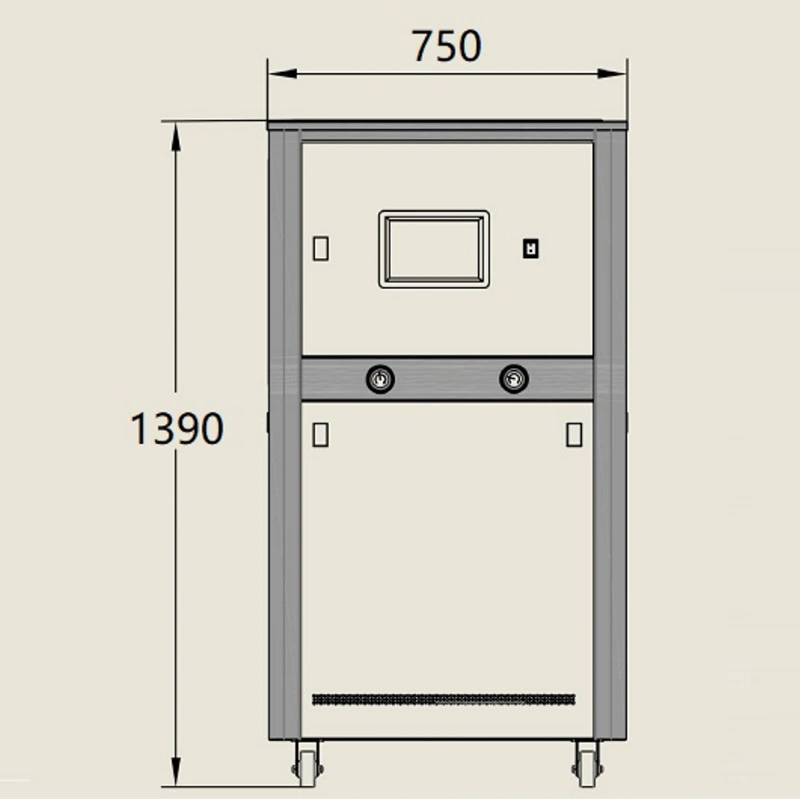

16.5kW Water-Cooled Industrial Chiller, ICW-5
- Cooling capacity: 16.5kW
- Total power input: 4.1kW
- Evaporator: shell-and-tube type (stainless steel shell + internal thread copper tubes)
- Pump head: 28m
- Water flow rate: 3.6m³/h
- Water tank capacity: 70L
- Pipe connection size: 25DN

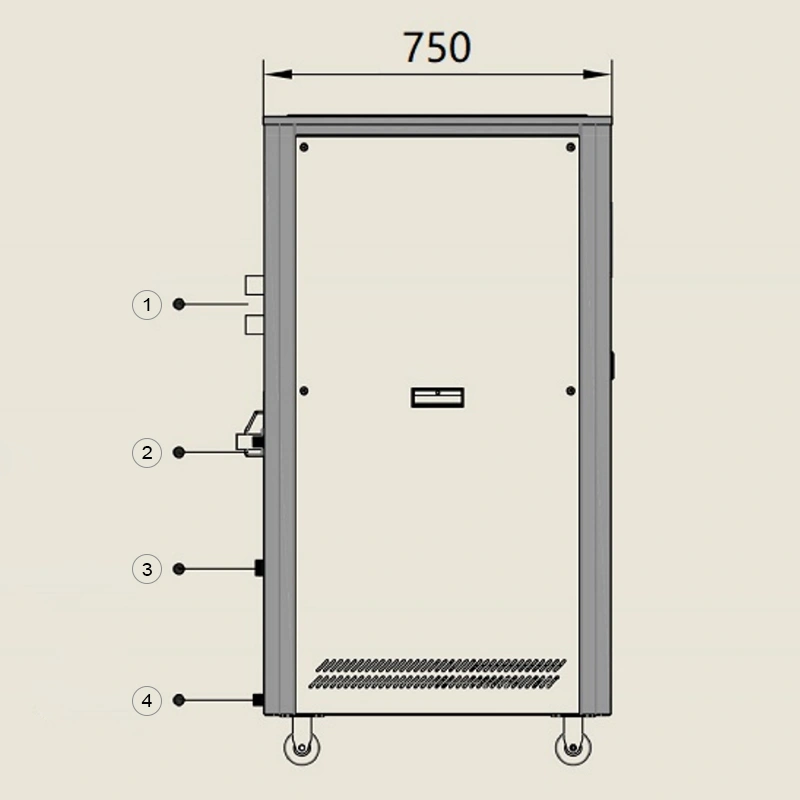

- Cooling water inlet/outlet
- Terminal box
- Chilled water inlet/outlet
- Drain port
- Control panel
- High-pressure gauge
- Low-pressure gauge
- Service access door
- Caster wheels
19.6kW Water-Cooled Industrial Chiller, ICW-6
- Cooling capacity: 19.6kW
- Total power input: 4.8kW
- Evaporator: shell-and-tube type (stainless steel shell + internal thread copper tubes)
- Pump head: 32m
- Water flow rate: 4.2m³/h
- Water tank capacity: 70L
- Pipe connection size: 25DN
- Cooling water inlet/outlet
- Terminal box
- Chilled water inlet/outlet
- Drain port
- Control panel
- High-pressure gauge
- Low-pressure gauge
- Service access door
- Caster wheels

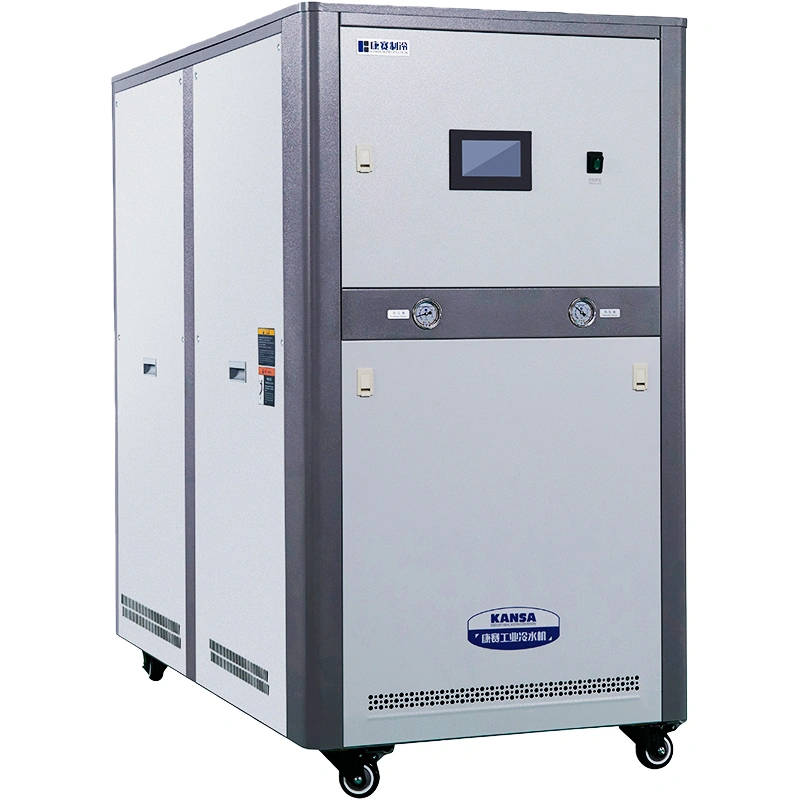

26.5kW Water-Cooled Industrial Chiller, ICW-8
- Cooling capacity: 26.5kW
- Total power input: 6.4kW
- Evaporator: shell-and-tube type (stainless steel shell + internal thread copper tubes)
- Pump head: 28m
- Water flow rate: 5.7m³/h
- Water tank capacity: 100L
- Pipe connection size: 25DN
- Cooling water inlet/outlet
- Water filling port
- Chilled water inlet/outlet
- Drain port
- Power connection port
- Control panel
- High-pressure gauge
- Low-pressure gauge
- Service access door
- Caster wheels
33.0kW Water-Cooled Industrial Chiller, ICW-10
- Cooling capacity: 33.0kW
- Total power input: 7.8kW
- Evaporator: shell-and-tube type (stainless steel shell + internal thread copper tubes)
- Pump head: 25m
- Water flow rate: 7.1m³/h
- Water tank capacity: 135L
- Pipe connection size: 25DN

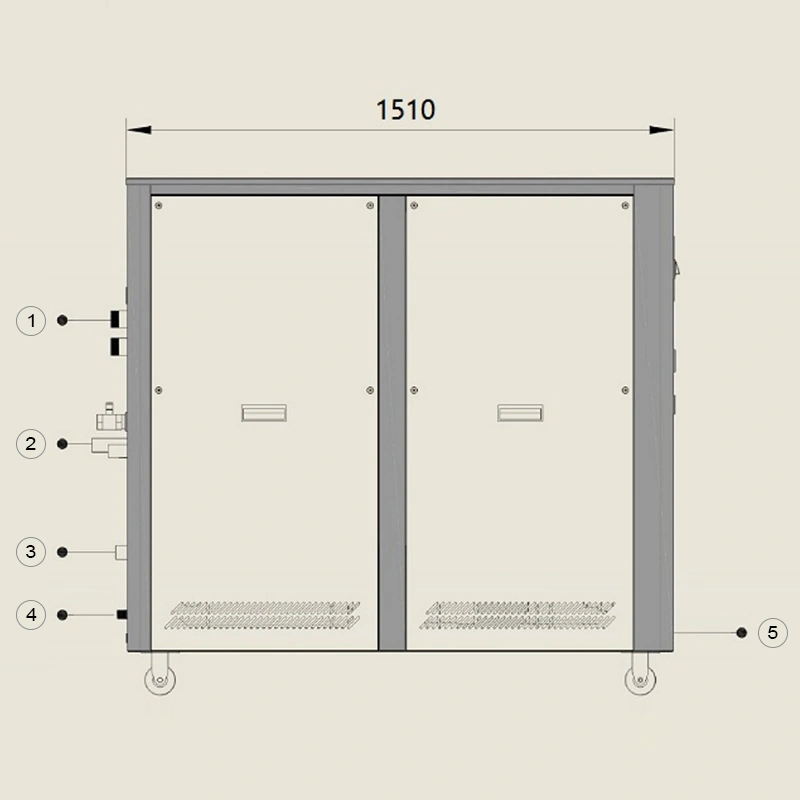

- Cooling water inlet/outlet
- Water filling port
- Chilled water inlet/outlet
- Drain port
- Power connection port
- Control panel
- High-pressure gauge
- Low-pressure gauge
- Service access door
- Caster wheels
38.5kW Water-Cooled Industrial Chiller, ICW-12
- Cooling capacity: 38.5kW
- Total power input: 9.4kW
- Evaporator: shell-and-tube type (stainless steel shell + internal thread copper tubes)
- Pump head: 29m
- Water flow rate: 8.3m³/h
- Water tank capacity: 135L
- Pipe connection size: 40DN
- Cooling water inlet/outlet
- Water filling port
- Chilled water inlet/outlet
- Drain port
- Power connection port
- Control panel
- High-pressure gauge
- Low-pressure gauge
- Service access door
- Caster wheels

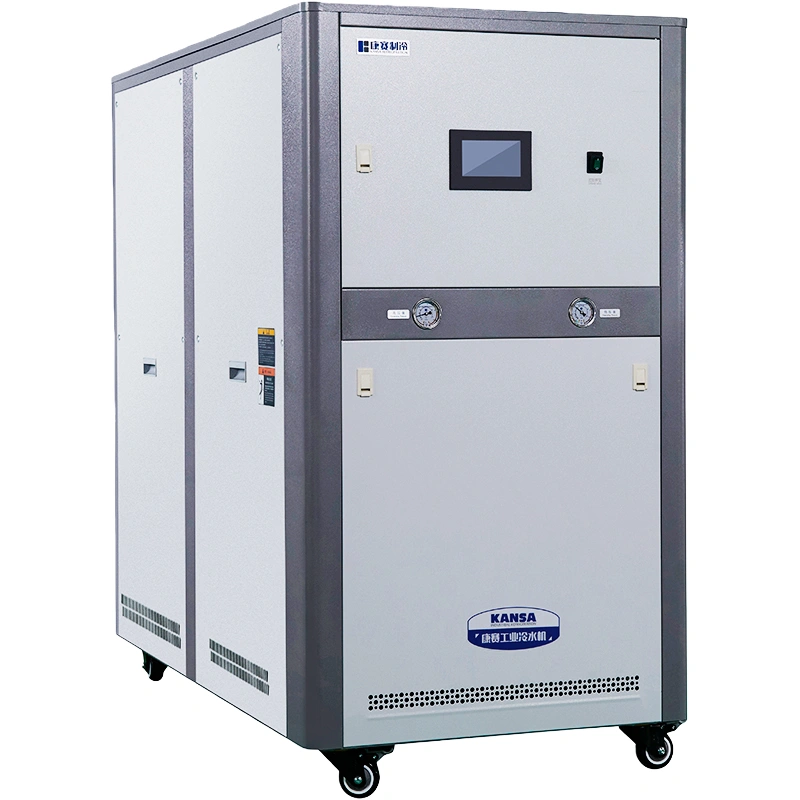

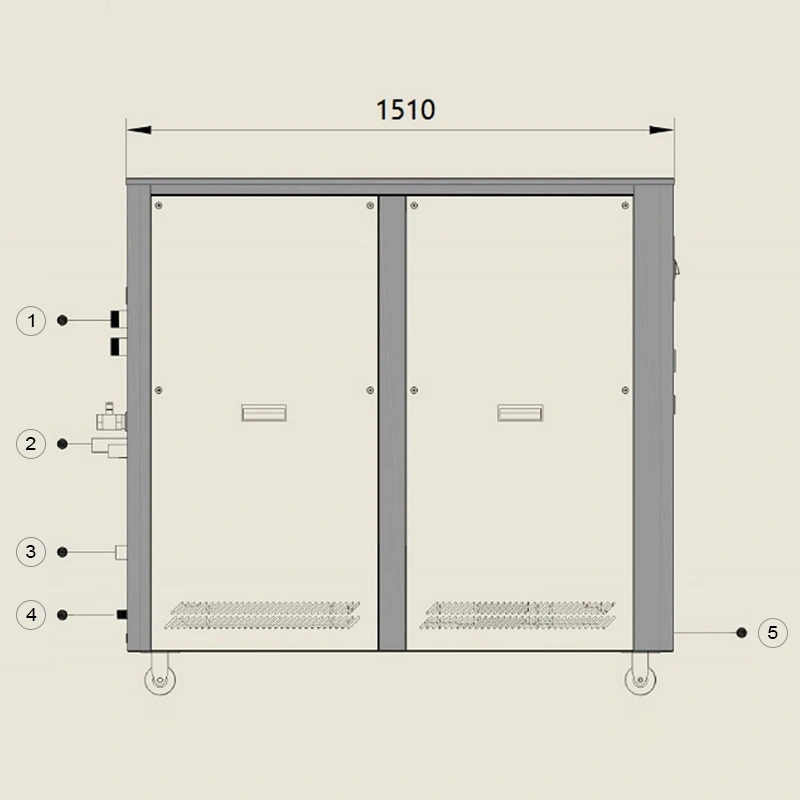

48.5kW Water-Cooled Industrial Chiller, ICW-15
- Cooling capacity: 48.5kW
- Total power input: 10.7kW
- Evaporator: shell-and-tube type (stainless steel shell + internal thread copper tubes)
- Pump head: 27m
- Water flow rate: 8.3m³/h
- Water tank capacity: 155L
- Pipe connection size: 40DN
- Cooling water inlet/outlet
- Water filling port
- Chilled water inlet/outlet
- Drain port
- Power connection port
- Control panel
- High-pressure gauge
- Low-pressure gauge
- Service access door
- Caster wheels

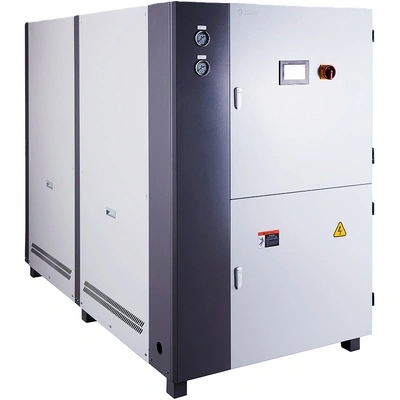

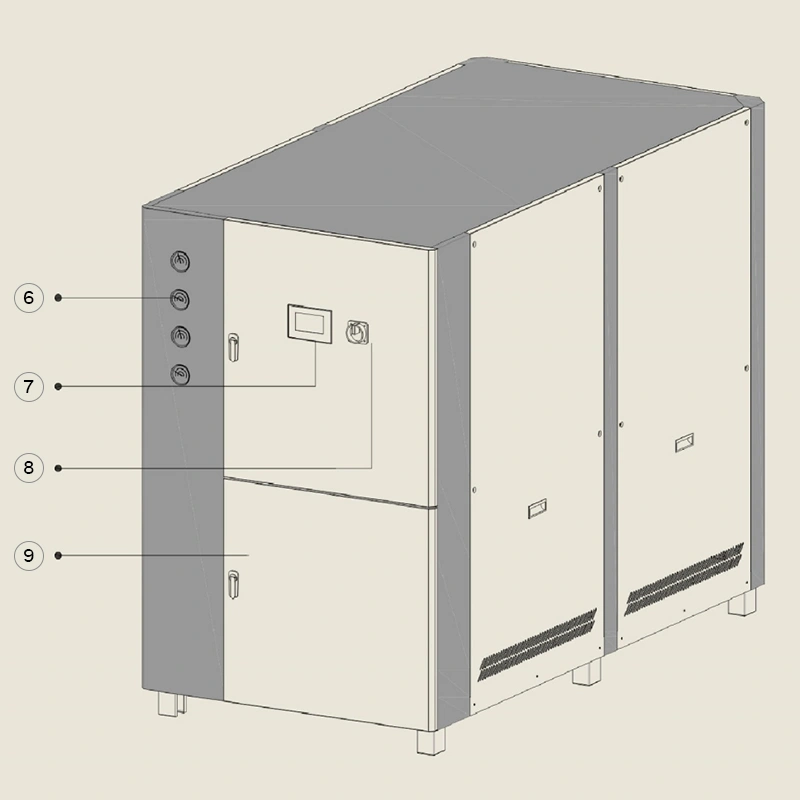

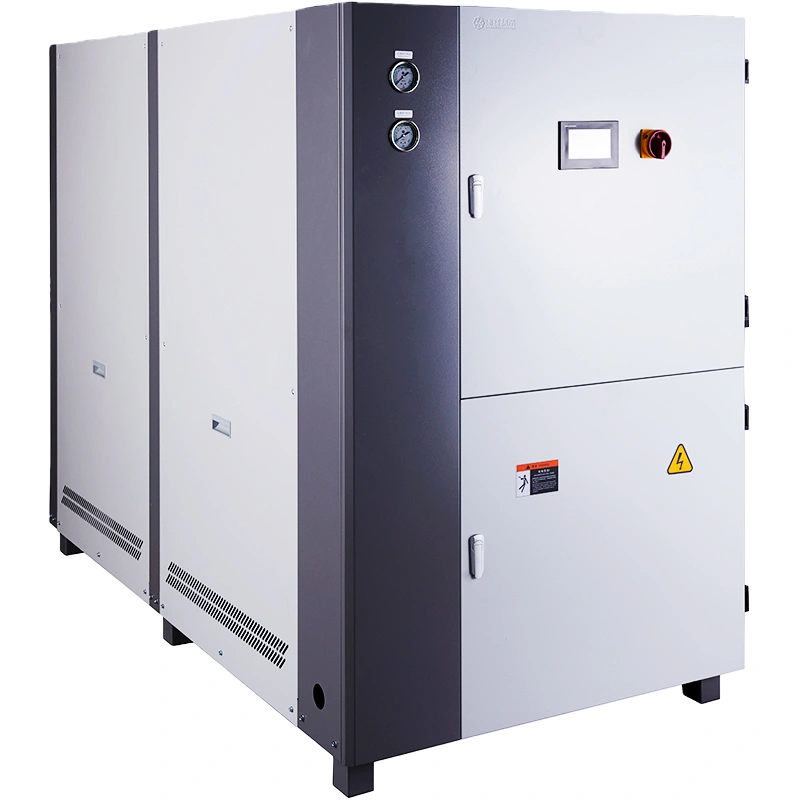

66.0kW Water-Cooled Industrial Chiller, ICW-20
- Cooling capacity: 66.0kW
- Total power input: 15.3kW
- Evaporator: shell-and-tube type (stainless steel shell + internal thread copper tubes)
- Pump head: 27m
- Water flow rate: 14.2m³/h
- Water tank capacity: 230L
- Pipe connection size: 50DN
- Cooling water inlet/outlet
- Water filling port
- Chilled water inlet/outlet
- Drain port
- Power connection port
- Pressure gauge
- Control panel
- Emergency stop switch
- Service access door

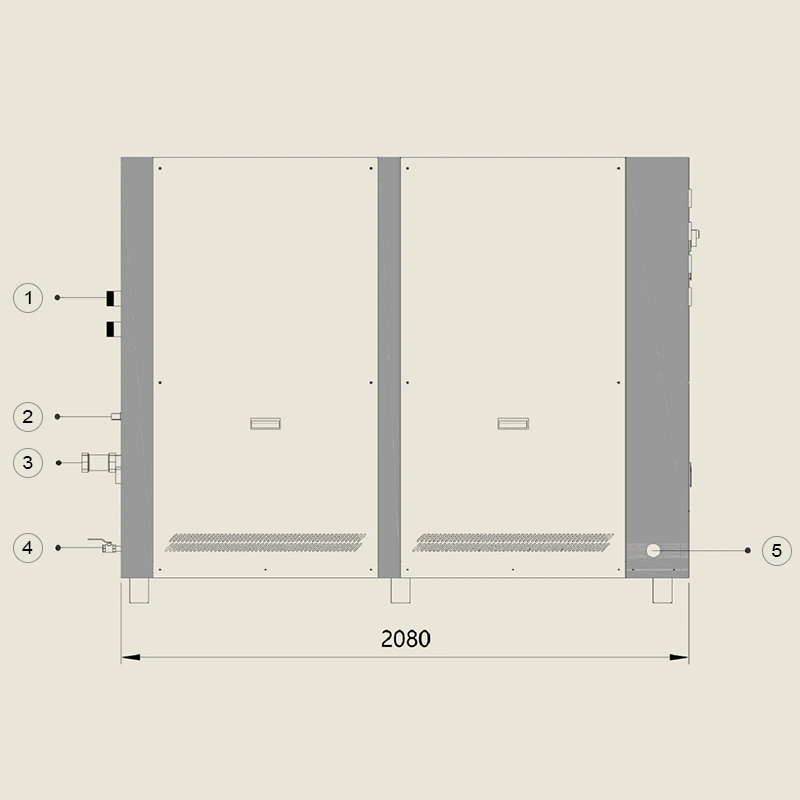

78.0kW Water-Cooled Industrial Chiller, ICW-25
- Cooling capacity: 78.0kW
- Total power input: 17.0kW
- Evaporator: shell-and-tube type (stainless steel shell + internal thread copper tubes)
- Pump head: 26m
- Water flow rate: 16.8m³/h
- Water tank capacity: 230L
- Pipe connection size: 50DN
- Cooling water inlet/outlet
- Water filling port
- Chilled water inlet/outlet
- Drain port
- Power connection port
- Pressure gauge
- Control panel
- Emergency stop switch
- Service access door

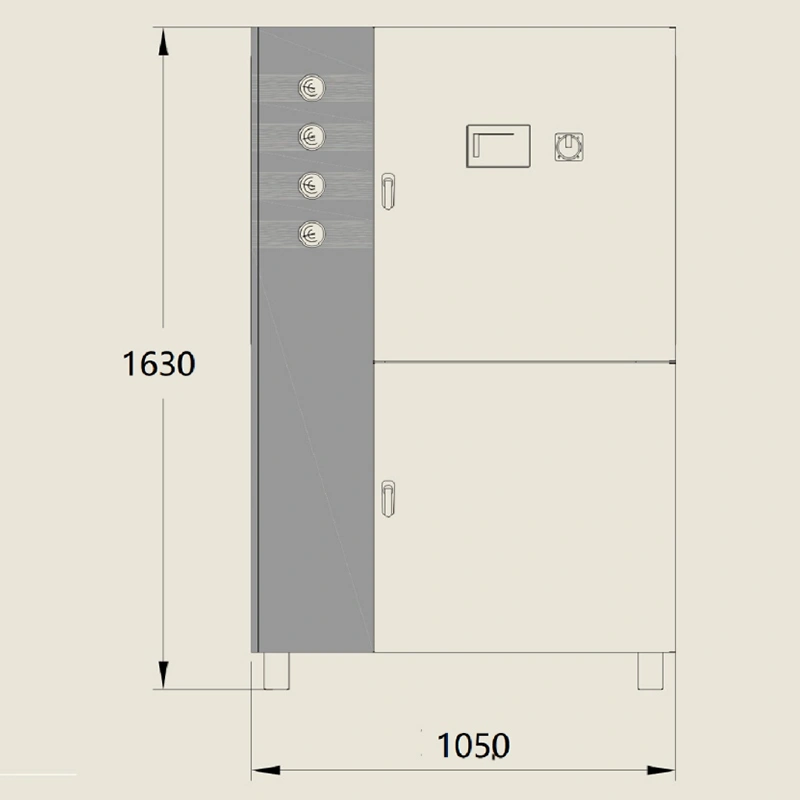

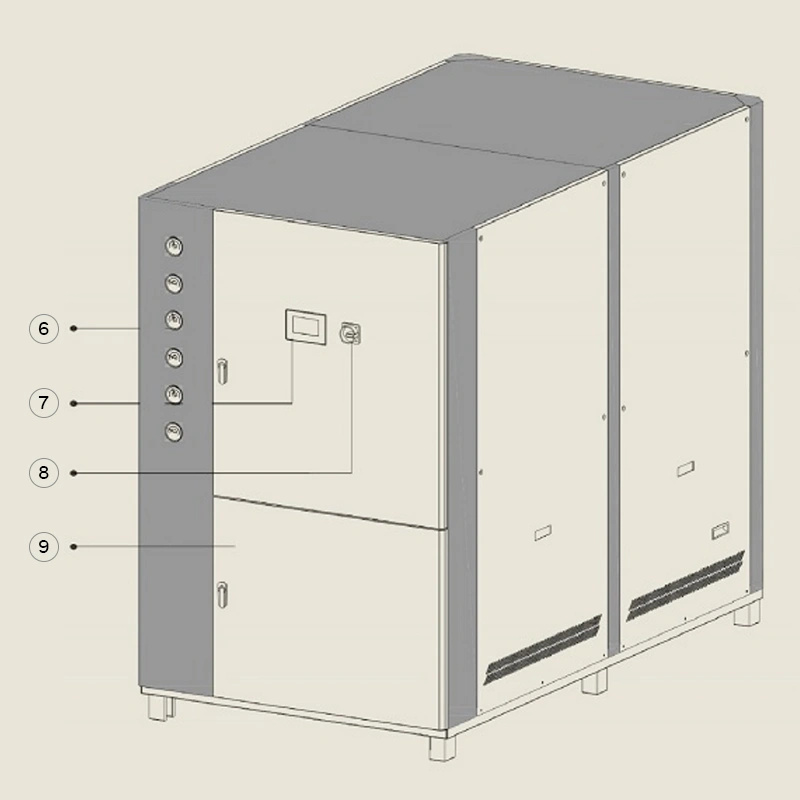

96.0kW Water-Cooled Industrial Chiller, ICW-30
- Cooling capacity: 96.0kW
- Total power input: 22.4kW
- Evaporator: shell-and-tube type (stainless steel shell + internal thread copper tubes)
- Pump head: 24m
- Water flow rate: 20.6m³/h
- Water tank capacity: 230L
- Pipe connection size: 50DN
- Cooling water inlet/outlet
- Water filling port
- Chilled water inlet/outlet
- Drain port
- Power connection port
- Pressure gauge
- Control panel
- Emergency stop switch
- Service access door

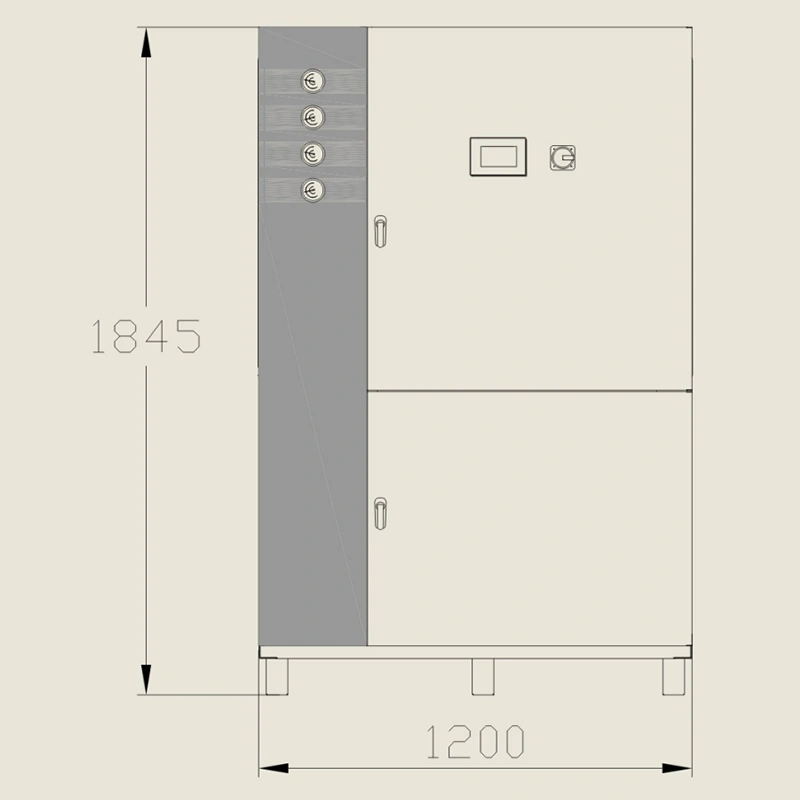

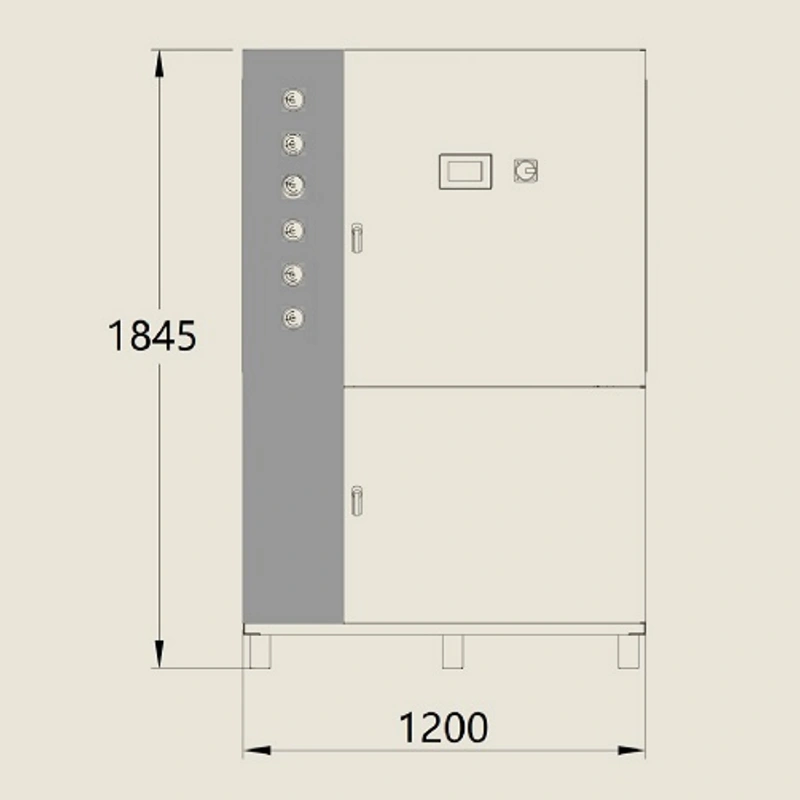

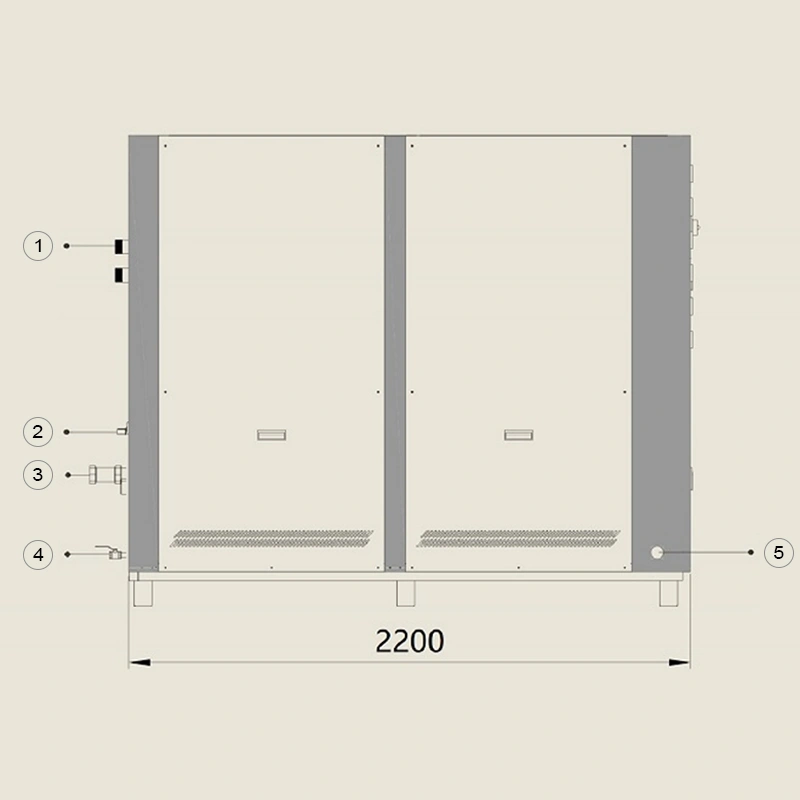

128.0kW Water-Cooled Industrial Chiller, ICW-40
- Cooling capacity: 128.0kW
- Total power input: 28.2kW
- Evaporator: shell-and-tube type (stainless steel shell + internal thread copper tubes)
- Pump head: 32m
- Water flow rate: 27.5m³/h
- Water tank capacity: 300L
- Pipe connection size: 50DN
- Cooling water inlet/outlet
- Water filling port
- Chilled water inlet/outlet
- Drain port
- Power connection port
- Pressure gauge
- Control panel
- Emergency stop switch
- Service access door

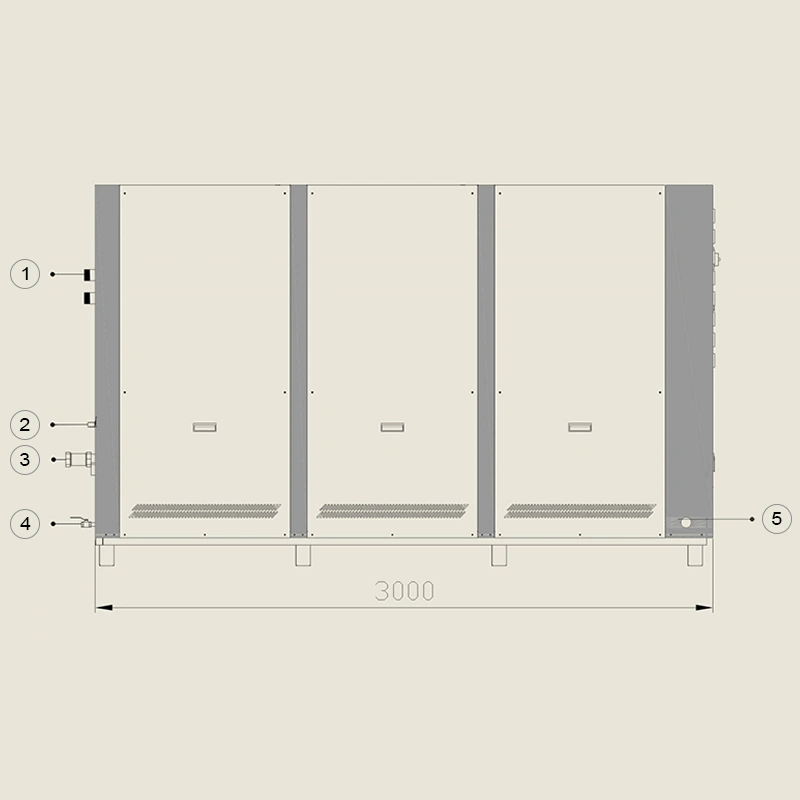

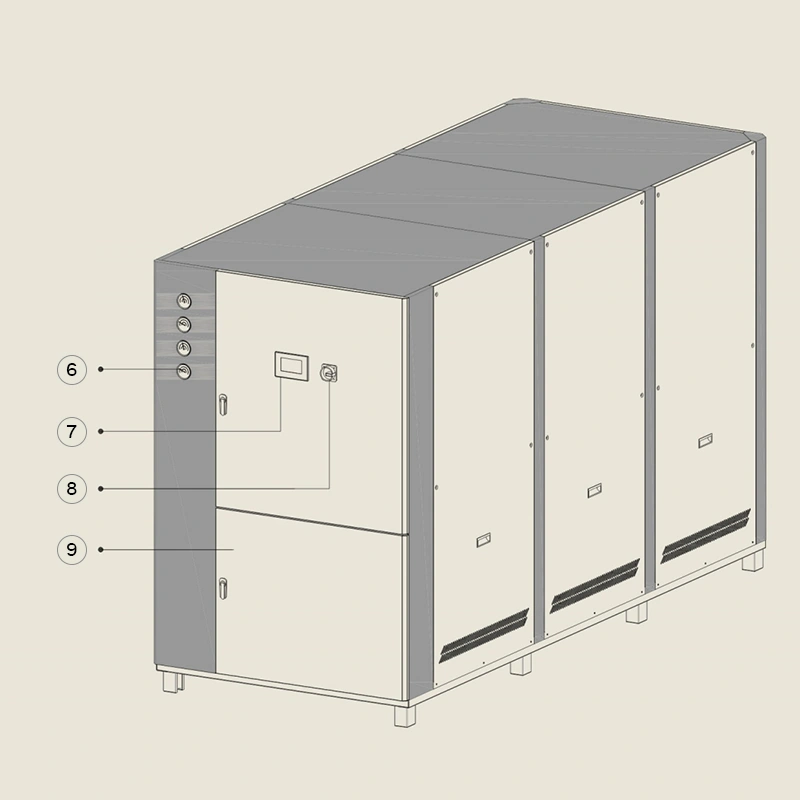

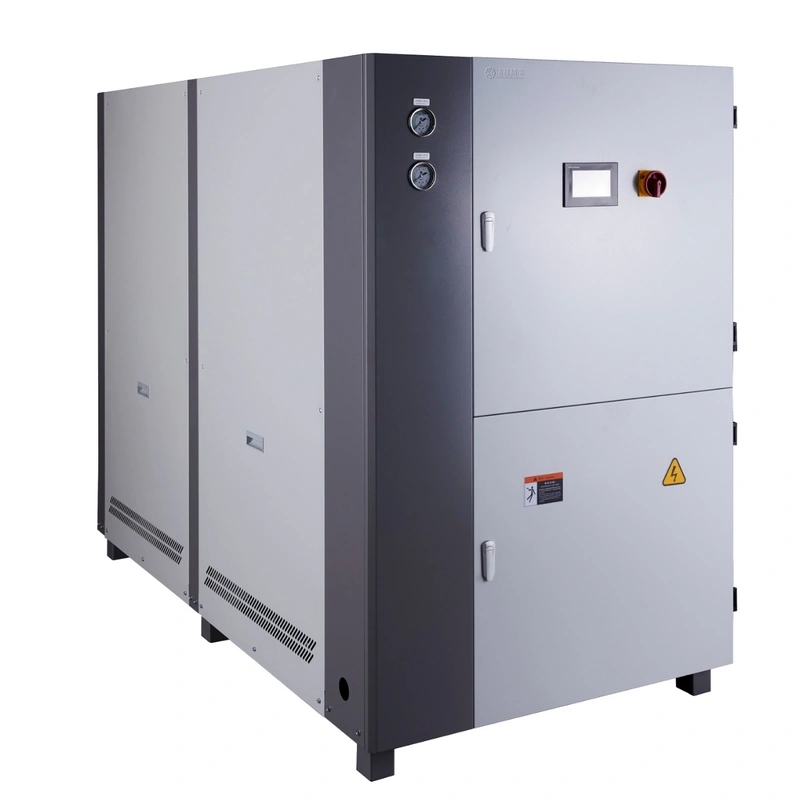

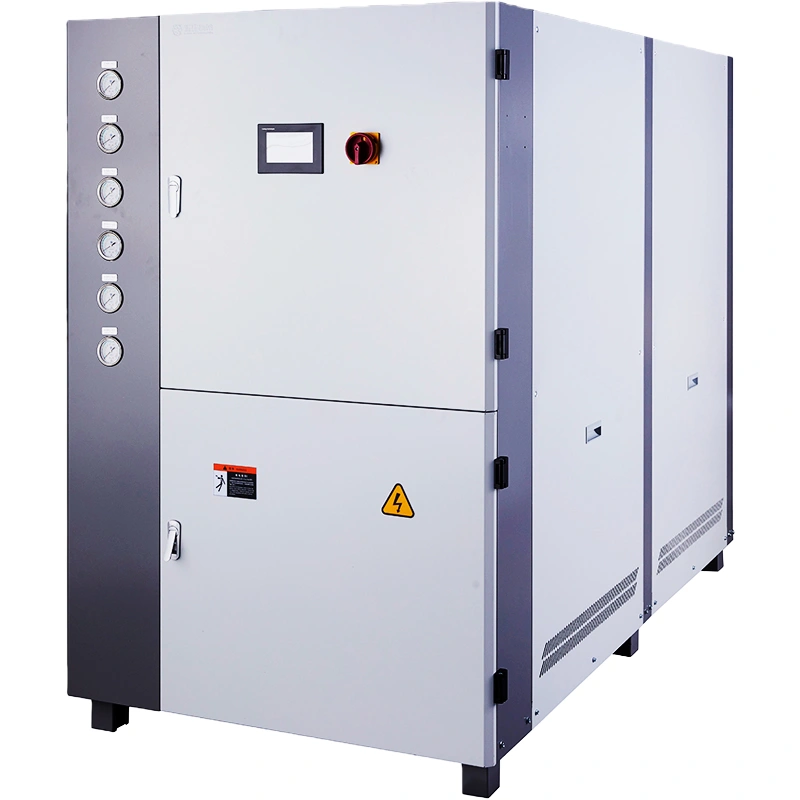

152.0kW Water-Cooled Industrial Chiller, ICW-50
- Cooling capacity: 152.0kW
- Total power input: 32.6kW
- Evaporator: shell-and-tube type (stainless steel shell + internal thread copper tubes)
- Pump head: 26m
- Water flow rate: 32.7m³/h
- Water tank capacity: 300L
- Pipe connection size: 65DN
- Cooling water inlet/outlet
- Water filling port
- Chilled water inlet/outlet
- Drain port
- Power connection port
- Pressure gauge
- Control panel
- Emergency stop switch
- Service access door

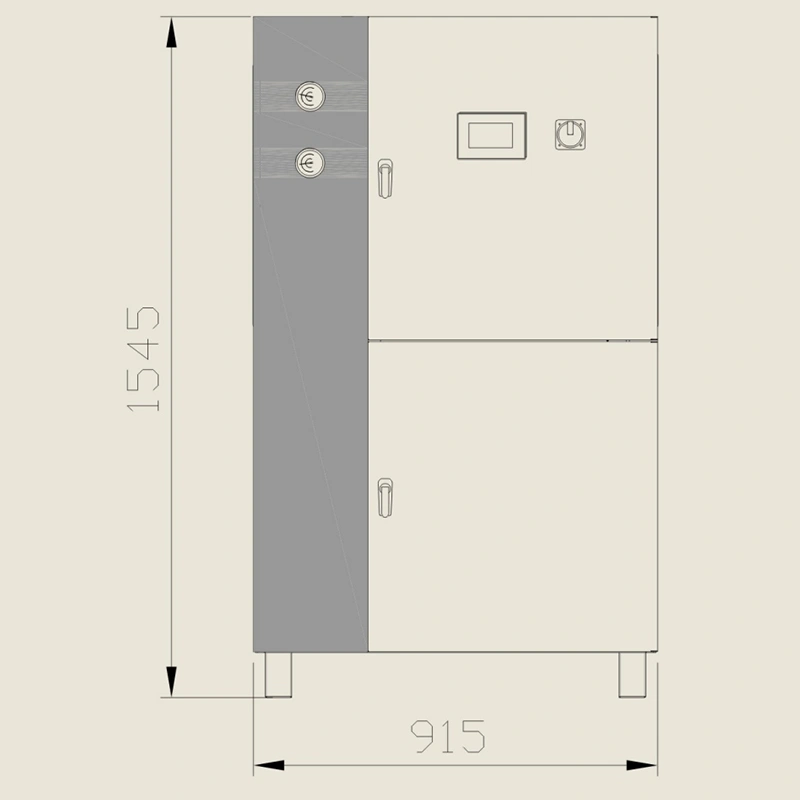

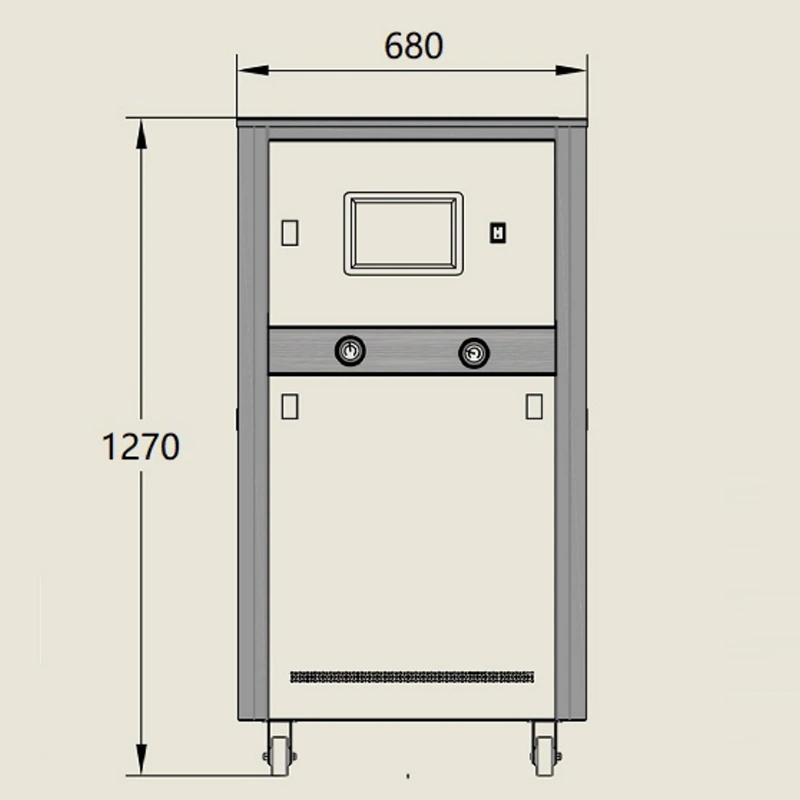

| Model |
|
|
|
|
|
|
|
||
| Cooling capacity | kW | 9.9 | 16.5 | 19.6 | 26.5 | 33 | 38.5 | 48.5 | |
| 10³ kcal/h | 8.5 | 14.2 | 16.8 | 22.8 | 28.4 | 33.1 | 41.7 | ||
| Power supply | V/Ph/Hz | 380/3/50 | |||||||
| Total power input | kW | 2.3 | 4 | 4.9 | 6.3 | 8 | 9.6 | 11.2 | |
| Rated current | A | 6.7 | 8 | 9.5 | 13 | 16.3 | 19 | 21 | |
| Compressor power | kW | 1.9 | 3.4 | 4.1 | 5.5 | 7.2 | 8.4 | 10 | |
| Water pump | Power | kW | 0.37 | 0.55 | 0.75 | 0.75 | 0.75 | 1.2 | 1.2 |
| Pump head | m | 24 | 28 | 32 | 28 | 25 | 29 | 27 | |
| Cooling water | Flow rate | m³/h | 2.1 | 3.6 | 4.2 | 5.7 | 7.1 | 8.3 | 10.4 |
| Pipe connection size | DN | 25 | 25 | 25 | 25 | 40 | 40 | 40 | |
| Chilled water | Flow rate | m³/h | 1.7 | 2.8 | 3.4 | 4.6 | 5.7 | 6.6 | 8.3 |
| Pipe connection size | DN | 25 | 25 | 25 | 25 | 40 | 40 | 40 | |
| Water tank capacity | L | 60 | 70 | 70 | 100 | 135 | 135 | 155 | |
| Noise level | dB(A) | 55 | 55 | 56 | 57 | 57 | 58 | 60 | |
| Weight | kg | 120 | 150 | 170 | 200 | 250 | 280 | 400 | |
| Dimensions | Length | mm | 680 | 750 | 750 | 1350 | 1510 | 1510 | 1785 |
| Width | mm | 680 | 750 | 750 | 680 | 750 | 750 | 915 | |
| Height | mm | 1270 | 1390 | 1390 | 1270 | 1390 | 1390 | 1545 | |
| Model |
|
|
|
|
|
|
|
||
| Cooling capacity | kW | 66 | 78 | 96 | 128 | 152 | 182 | 240 | |
| 10³ kcal/h | 56.8 | 67.1 | 82.6 | 110 | 130.7 | 156.5 | 206.4 | ||
| Power supply | V/Ph/Hz | 380/3/50 | |||||||
| Total power input | kW | 16.6 | 19 | 22.2 | 32 | 36.7 | 44 | 57.3 | |
| Rated current | A | 34 | 38 | 42 | 59 | 67 | 83 | 105 | |
| Compressor power | kW | 14.4 | 16.8 | 20 | 28.4 | 33.2 | 40 | 49.8 | |
| Water pump | Power | kW | 2.2 | 2.2 | 2.2 | 3.5 | 3.5 | 4 | 7.5 |
| Pump head | m | 27 | 26 | 24 | 32 | 26 | 22 | 20.5 | |
| Cooling water | Flow rate | m³/h | 14.2 | 16.8 | 20.6 | 27.5 | 32.7 | 39.1 | 51.6 |
| Pipe connection size | DN | 50 | 50 | 50 | 50 | 65 | 65 | 80 | |
| Chilled water | Flow rate | m³/h | 11.4 | 13.4 | 16.5 | 22 | 26.1 | 31.3 | 41.3 |
| Pipe connection size | DN | 50 | 50 | 50 | 50 | 65 | 65 | 80 | |
| Water tank capacity | L | 230 | 230 | 230 | 300 | 300 | 300 | 400 | |
| Noise level | dB(A) | 62 | 63 | 64 | 65 | 66 | 67 | 68 | |
| Weight | kg | 550 | 620 | 720 | 1030 | 1200 | 1330 | 1550 | |
| Dimensions | Length | mm | 2080 | 2080 | 2080 | 2200 | 3000 | 3000 | 3400 |
| Width | mm | 1050 | 1050 | 1050 | 1200 | 1200 | 1200 | 1200 | |
| Height | mm | 1630 | 1630 | 1630 | 1845 | 1845 | 1845 | 1845 | |
Customized specifications are available upon request. Please
- Energy Efficiency
- Innovation
- Safety Features
- Precision Manufacturing
- Various Applications
Energy Performance
-
25% Improve heat exchange efficiency by approximatelyInternally Threaded Copper Tubes -
20% Improve heat transfer efficiency by aboutWave-Shaped Fins -
6% Reduces total power consumption by aboutPID-Controlled Electronic Expansion Valve -
20% Improves distribution uniformity by approximatelyOptimized Refrigerant Distribution System -
10% Enhances air circulation by aboutOptimized Airflow Path Design -
20% Lowers fan power consumption by approximatelyAutomatic Air Volume Control
Innovation
-
Stainless Steel Evaporator -
V-Shaped Condenser -
Cylindrical Water Tank -
Low-Noise Fan -
Touch-Screen Controller -
Advanced Control System
Multiple Safety Features
-
Over-Temperature Protection -
Current Protection -
Self-Diagnosis -
Intelligent Antifreeze -
Water Flow Alarm -
Water Level Alarm -
Pressure Alarm -
Timer On/Off
Precision Manufacturing
-
Precision Sheet Metal Forming -
Stamped Flow Guide Rings -
Robotic Bending System (Bystronic, Switzerland) -
Laser Welding Technology -
Automated Insulation Material Cutting -
Automated Joint Welding
Application examples and practical considerations
With over 20 years of experience in the industrial cooling industry, KANSA designs and manufactures a variety of industrial chillers and process temperature control equipment in-house to ensure consistent quality, reliable operation and exceptional temperature stability of ±0.05°C. The company holds CE, ISO9001-2016, ISO45001 and other international certifications, serving more than 70,000 customers worldwide.
