1.2-35.6kW Air-Cooled Industrial Chiller (Low Temperature -35°C)

1.2-35.6kW Air-Cooled Industrial Chiller (Low Temperature -35°C)
    • Model

      Model: ICA-2U~ICA-50U

    • Cooling Capacity

      Cooling Capacity: 1.2-35.6kW

    • Temperature precision

      Temperature precision: ±0.1/±0.5/±1.5℃

    • High Efficiency & Energy Saving
      High Efficiency & Energy Saving
    • Intelligent Control
      Intelligent Control
    • Multiple Safety Features
      Multiple Safety Features
    • Durable Construction
      Durable Construction
    • Easy to Operate
      Easy to Operate
    • Simple Maintenance
      Simple Maintenance
    • CE Certification
      CE Certification
    • Certified Manufacturing Facility
      Certified Manufacturing Facility

The -35 °C low-temperature air-cooled industrial chiller is equipped with an efficient compressor, capable of delivering stable output of coolant media such as glycol solutions at temperatures down to -35 °C. The system offers refrigeration efficiency and reliability, designed specifically for extreme low-temperature processes.

The low-temperature air-cooled chiller is widely applied in cooling operations across petrochemical, biopharmaceutical, aerospace, and new material testing fields, serving as a key component in advanced industrial and research applications.

Request a Quote

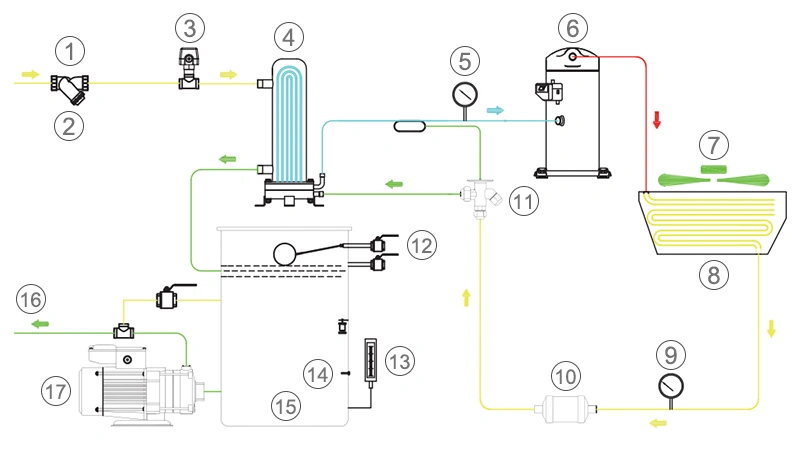

System Diagram
3.0-72.0kW Air-Cooled Industrial Chiller (Low Temperature -5°C)
  • Water filter
  • Chilled water inlet
  • Flow switch
  • Evaporator
  • Pressure gauge
  • Compressor
  • Cooling fan
  • Condenser
  • Pressure gauge
  • Dry filter
  • Expansion valve
  • Water supply
  • Water level
  • Sensor
  • Tank
  • Chilled water outlet
  • Pump
Specifications
Model ICA-2U ICA-3U ICA-5U ICA-8U ICA-10U ICA-12U
Cooling capacity kW 1.2 1.6 4.8 6.3 7.3 8.9
10³ kcal/h 1.03 1.4 4.1 5.4 6.3 7.7
Power supply V/Ph/Hz 380/3/50
Total power input kW 2.2 2.7 4.2 5.7 7.2 8.7
Rated current A 4.9 6 9.3 12.5 15.2 17.5
Compressor Type Flexible scroll type
Power kW 1.2 1.7 3 4.1 4.9 5.5
Water pump Power kW 0.75 0.75 0.75 1.3 1.3 2.2
Pump head m 42 44 41 45 42 40
Water flow rate m³/h 0.21 0.28 0.79 1.08 1.26 1.53
L/min 3.4 4.6 13.2 18 21 25.5
Water tank capacity L 40 50 70 100 155 155
Pipe connection size DN 20 25 25 25 40 40
Noise level dB(A) 62 63 65 68 68 69
Weight kg 110 162 188 210 260 310
Dimensions Length mm 600 680 750 1350 1510 1510
Width mm 600 680 750 680 750 750
Height mm 1160 1360 1480 1360 1480 1480
Model ICA-15U ICA-20U ICA-25U ICA-30U ICA-40U ICA-50U
Cooling capacity kW 10.9 15 17.8 21.8 30 35.6
10³ kcal/h 9.4 12.9 15.3 18.7 25.8 30.6
Power supply V/Ph/Hz 380/3/50
Total power input kW 10.2 15.3 16.5 20 26.6 30
Rated current A 22.5 33.7 36.3 45 58.5 66
Compressor Type Flexible scroll type
Power kW 6.7 9.8 11 13.4 19.6 22
Water pump Power kW 2.2 4 4 4 4 4
Pump head m 40 42 41 45 42 40
Water flow rate m³/h 1.88 2.58 3.06 3.75 5.16 6.12
L/min 31.3 43 51 62.5 86 102
Water tank capacity L 155 230 230 230 300 300
Pipe connection size DN 40 50 50 50 50 50
Noise level dB(A) 69 68 68 68 69 69
Weight kg 415 620 670 780 1100 1300
Dimensions Length mm 1785 2080 2080 2080 2200 3000
Width mm 915 1050 1050 1050 1200 1200
Height mm 1630 1720 1720 1910 2135 2120

Customized specifications are available upon request. Please Contact Us for details.

  • Energy Efficiency
  • Innovation
  • Safety Features
  • Precision Manufacturing
Energy Performance
    • Internally Threaded Copper Tubes
      25% Improve heat exchange efficiency by approximately
      Internally Threaded Copper Tubes
    • Wave-Shaped Fins
      20% Improve heat transfer efficiency by about
      Wave-Shaped Fins
    • PID-Controlled Electronic Expansion Valve
      6% Reduces total power consumption by about
      PID-Controlled Electronic Expansion Valve
    • Optimized Refrigerant Distribution System
      20% Improves distribution uniformity by approximately
      Optimized Refrigerant Distribution System
    • Optimized Airflow Path Design
      10% Enhances air circulation by about
      Optimized Airflow Path Design
    • Automatic Air Volume Control
      20% Lowers fan power consumption by approximately
      Automatic Air Volume Control
Innovation
    • Stainless Steel Evaporator
      Stainless Steel Evaporator
    • V-Shaped Condenser
      V-Shaped Condenser
    • Cylindrical Water Tank
      Cylindrical Water Tank
    • Low-Noise Fan
      Low-Noise Fan
    • Touch-Screen Controller
      Touch-Screen Controller
    • Advanced Control System
      Advanced Control System
Multiple Safety Features
    • Over-Temperature Protection
      Over-Temperature Protection
    • Current Protection
      Current Protection
    • Self-Diagnosis
      Self-Diagnosis
    • Intelligent Antifreeze
      Intelligent Antifreeze
    • Water Flow Alarm
      Water Flow Alarm
    • Water Level Alarm
      Water Level Alarm
    • Pressure Alarm
      Pressure Alarm
    • Timer On/Off
      Timer On/Off
Precision Manufacturing
    • Precision Sheet Metal Forming
      Precision Sheet Metal Forming
    • Stamped Flow Guide Rings
      Stamped Flow Guide Rings
    • Robotic Bending System (Bystronic, Switzerland)
      Robotic Bending System (Bystronic, Switzerland)
    • Laser Welding Technology
      Laser Welding Technology
    • Automated Insulation Material Cutting
      Automated Insulation Material Cutting
    • Automated Joint Welding
      Automated Joint Welding

With over 20 years of experience in the industrial cooling industry, KANSA designs and manufactures a variety of industrial chillers and process temperature control equipment in-house to ensure consistent quality, reliable operation and exceptional temperature stability of ±0.05°C. The company holds CE, ISO9001-2016, ISO45001 and other international certifications, serving more than 70,000 customers worldwide.
