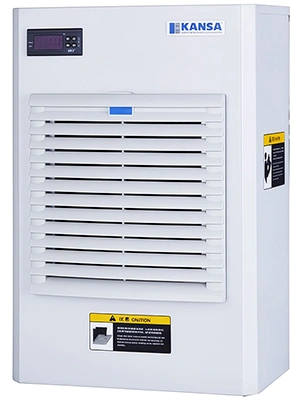

Cabinet Air Conditioner (Side Mount)

Side mounted enclosure cooling units for managing internal temperatures in electrical and electronic enclosures
Cabinet Air Conditioner (Side Mount)
  • Cabinet Air Conditioner (Side Mount)
  • Cabinet Air Conditioner (Side Mount)
  • Cabinet Air Conditioner (Side Mount)
  • Cabinet Air Conditioner (Side Mount)
    • Model

      Model: CAW-320~CAW-4500

    • Cooling Capacity

      Cooling Capacity: 320-4500W

    • Temperature precision

      Temperature precision: ±2°C

    • High Efficiency & Energy Saving
      High Efficiency & Energy Saving
    • Intelligent Control
      Intelligent Control
    • Multiple Safety Features
      Multiple Safety Features
    • Durable Construction
      Durable Construction
    • Easy to Operate
      Easy to Operate
    • Simple Maintenance
      Simple Maintenance
    • CE Certification
      CE Certification
    • Certified Manufacturing Facility
      Certified Manufacturing Facility

The cabinet air conditioner is specifically designed for electrical cabinets with limited installation space. Its compressor and condenser are integrated into the unit, allowing direct installation on the cabinet side wall without requiring additional space, saving footprint. The cabinet air conditioner delivers efficient and reliable cooling to maintain stable temperature and humidity inside the cabinet, effectively protecting sensitive electrical components such as PLCs and servo drives from heat and condensation, ensuring the stable operation of automated systems.

Request a Quote
Specifications
Model CAW-320 CAW-450 CAW-630 CAW-900 CAW-1200
Cooling capacity W 320 450 630 900 1200
Btu/Hr 1092 1536 2150 3072 4096
Cabinet internal temperature range ℃ 15-45
Ambient temperature range ℃ 15-55
System pressure resistance bar 26
Power supply V/Ph/Hz 220/1/50
Rated current A 1.2 1.4 1.6 2.6 3.5
Power input W 245 295 355 520 780
Internal air flow rate m³/h 170 240 330 490 560
External air flow rate m³/h 325 450 575 725 860
Refrigerant type R134a R134a R134a R407C/R22 R407C/R22
Internal protection grade IP54
External protection grade IP30
Noise level dB(A) 55 56 56 57 58
Weight kg 14 16 25 30 40
Dimensions Length mm 485 485 680 680 820
Width mm 350 325 325 325 400
Height mm 190 190 190 190 220
Model CAW-1600 CAW-2000 CAW-2500 CAW-3200 CAW-4500
Cooling capacity W 1600 2000 2500 3200 4500
Btu/Hr 5461 6826 8533 10922 15358
Cabinet internal temperature range ℃ 15-45
Ambient temperature range ℃ 15-55
System pressure resistance bar 26
Power supply V/Ph/Hz 220/1/50
Rated current A 4.2 5.3 5.9 6.5 8.9
Power input W 905 1150 1300 1450 1950
Internal air flow rate m³/h 580 880 950 1100 1300
External air flow rate m³/h 950 1250 1350 1450 1510
Refrigerant type R22/R407C
Internal protection grade IP54
External protection grade IP30
Noise level dB(A) 60 62 63 65 66
Weight kg 48 55 60 75 98
Dimensions Length mm 820 1080 1080 1080 1100
Width mm 400 450 450 450 555
Height mm 220 260 260 260 330
  • Energy Efficiency
  • Innovation
  • Safety Features
  • Precision Manufacturing
Energy Performance
    • Internally Threaded Copper Tubes
      25% Improve heat exchange efficiency by approximately
      Internally Threaded Copper Tubes
    • Wave-Shaped Fins
      20% Improve heat transfer efficiency by about
      Wave-Shaped Fins
    • PID-Controlled Electronic Expansion Valve
      6% Reduces total power consumption by about
      PID-Controlled Electronic Expansion Valve
    • Optimized Refrigerant Distribution System
      20% Improves distribution uniformity by approximately
      Optimized Refrigerant Distribution System
    • Optimized Airflow Path Design
      10% Enhances air circulation by about
      Optimized Airflow Path Design
    • Automatic Air Volume Control
      20% Lowers fan power consumption by approximately
      Automatic Air Volume Control
Innovation
    • Stainless Steel Evaporator
      Stainless Steel Evaporator
    • V-Shaped Condenser
      V-Shaped Condenser
    • Cylindrical Water Tank
      Cylindrical Water Tank
    • Low-Noise Fan
      Low-Noise Fan
    • Touch-Screen Controller
      Touch-Screen Controller
    • Advanced Control System
      Advanced Control System
Multiple Safety Features
    • Over-Temperature Protection
      Over-Temperature Protection
    • Current Protection
      Current Protection
    • Self-Diagnosis
      Self-Diagnosis
    • Intelligent Antifreeze
      Intelligent Antifreeze
    • Water Flow Alarm
      Water Flow Alarm
    • Water Level Alarm
      Water Level Alarm
    • Pressure Alarm
      Pressure Alarm
    • Timer On/Off
      Timer On/Off
Precision Manufacturing
    • Precision Sheet Metal Forming
      Precision Sheet Metal Forming
    • Stamped Flow Guide Rings
      Stamped Flow Guide Rings
    • Robotic Bending System (Bystronic, Switzerland)
      Robotic Bending System (Bystronic, Switzerland)
    • Laser Welding Technology
      Laser Welding Technology
    • Automated Insulation Material Cutting
      Automated Insulation Material Cutting
    • Automated Joint Welding
      Automated Joint Welding

With over 20 years of experience in the industrial cooling industry, KANSA designs and manufactures a variety of industrial chillers and process temperature control equipment in-house to ensure consistent quality, reliable operation and exceptional temperature stability of ±0.05°C. The company holds CE, ISO9001-2016, ISO45001 and other international certifications, serving more than 70,000 customers worldwide.
