66.0-480.0kW Water-Cooled Scroll Chiller

66.0-480.0kW Water-Cooled Scroll Chiller
    • Model

      Model: ICS-20W~ICS-150W

    • Cooling Capacity

      Cooling Capacity: 66.0-480.0kW

    • Temperature precision

      Temperature precision: ±1.5°C

    • Noise level

      Noise level: 64-70dB(A)

    • High Efficiency & Energy Saving
      High Efficiency & Energy Saving
    • Intelligent Control
      Intelligent Control
    • Multiple Safety Features
      Multiple Safety Features
    • Durable Construction
      Durable Construction
    • Easy to Operate
      Easy to Operate
    • Simple Maintenance
      Simple Maintenance
    • CE Certification
      CE Certification
    • Certified Manufacturing Facility
      Certified Manufacturing Facility

The water-cooled scroll chiller uses an efficient scroll compressor and relies on cooling water for heat dissipation through condensation. Its coefficient of performance (COP) is significantly higher than that of air-cooled models. Featuring stable operation, low noise, and a compact structure, it offers a broad cooling capacity range. While it does not require an outdoor unit, it must be equipped with a cooling water system. This model is an energy-efficient solution ideal for hotels, hospitals, data centers, and medium to large-scale industrial cooling applications.

Request a Quote

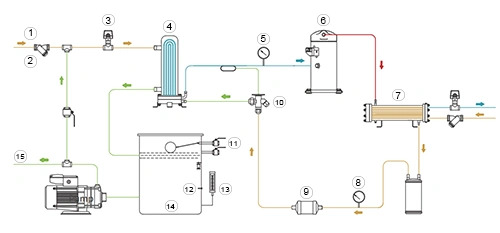

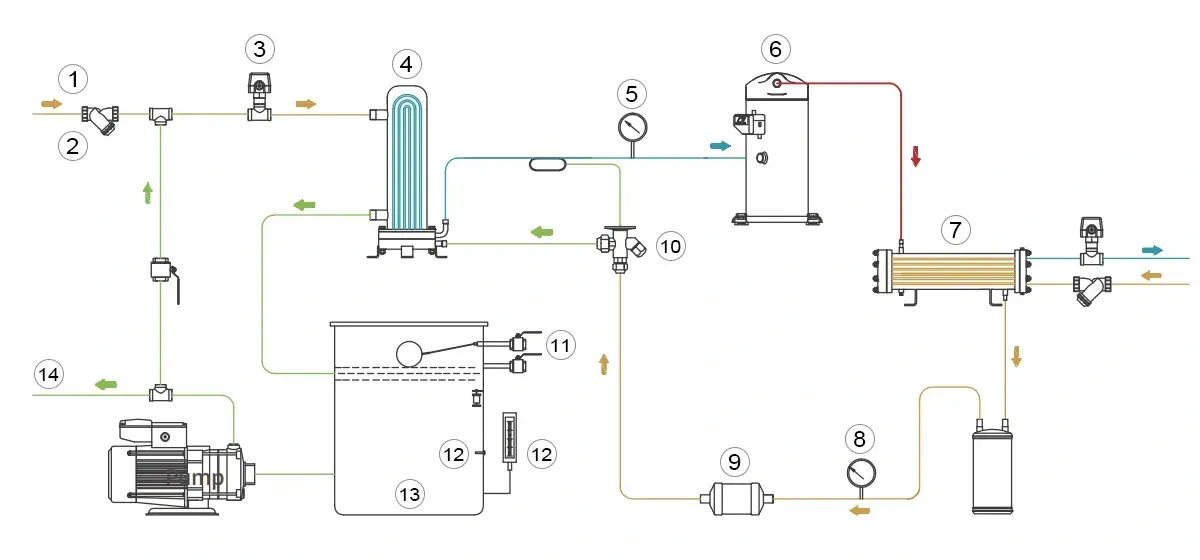

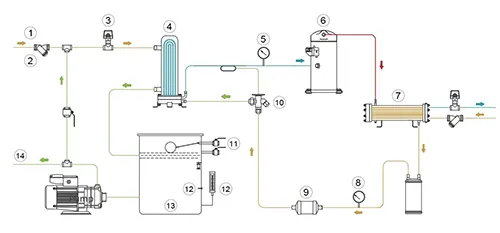

System Diagram
66.0-480.0kW Water-Cooled Scroll Chiller
  • Water filter
  • Chilled water inlet
  • Flow switch
  • Evaporator
  • Pressure gauge
  • Compressor
  • Condenser
  • Pressure gauge
  • Dry filter
  • Expansion valve
  • Water supply
  • Water level
  • Sensor
  • Tank
  • Chilled water outlet
Specifications
Model ICS-20W ICS-25W ICS-30W ICS-40W ICS-50W
Cooling capacity kW 66 88 98 128 160
10³ kcal/h 56.8 68.8 84.3 110 137.6
Power supply V/Ph/Hz 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50
Compressor Quantity pc 2 2 3 3 4
Power kW 14.4 16.8 20 28.4 33.2
Current A 28.8 33 37.2 51.4 59.6
Condenser Type Shell-and-tube type
Water flow rate m³/h 14.2 18 21.1 27.5 34.4
Pipe connection size DN 50 50 50 65 65
Evaporator Type Shell-and-tube type
Water flow rate m³/h 11.4 13.8 16.9 22.1 27.5
Pipe connection size DN 50 50 50 65 65
Noise level dB(A) 64 65 66 67 67
Weight kg 360 400 465 530 760
Dimensions Length mm 1800 1900 2000 2200 2400
Width mm 800 800 800 800 800
Height mm 1400 1400 1400 1400 1500
Model ICS-60W ICS-75W ICS-100W ICS-125W ICS-150W
Cooling capacity kW 196 240 320 400 480
10³ kcal/h 168.6 206.4 275.2 344 412.8
Power supply V/Ph/Hz 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50
Compressor Quantity pc 3 3 4 5 6
Power kW 42.6 49.8 66.4 83 99.6
Current A 77 89.5 120 150 180
Condenser Type Shell-and-tube type
Water flow rate m³/h 42 51.6 68.8 86 103.2
Pipe connection size DN 65 80 80 100 100
Evaporator Type Shell-and-tube type
Water flow rate m³/h 33.7 41.3 55 68.8 82.6
Pipe connection size DN 65 80 80 100 100
Noise level dB(A) 67 67 68 69 70
Weight kg 870 980 1460 1580 1890
Dimensions Length mm 2500 2600 3000 3000 3200
Width mm 800 800 900 950 950
Height mm 1500

Customized specifications are available upon request. Please Contact Us for details.
  • Energy Efficiency
  • Innovation
  • Safety Features
  • Precision Manufacturing
Energy Performance
    • Internally Threaded Copper Tubes
      25% Improve heat exchange efficiency by approximately
      Internally Threaded Copper Tubes
    • Wave-Shaped Fins
      20% Improve heat transfer efficiency by about
      Wave-Shaped Fins
    • PID-Controlled Electronic Expansion Valve
      6% Reduces total power consumption by about
      PID-Controlled Electronic Expansion Valve
    • Optimized Refrigerant Distribution System
      20% Improves distribution uniformity by approximately
      Optimized Refrigerant Distribution System
    • Optimized Airflow Path Design
      10% Enhances air circulation by about
      Optimized Airflow Path Design
    • Automatic Air Volume Control
      20% Lowers fan power consumption by approximately
      Automatic Air Volume Control
Innovation
    • Stainless Steel Evaporator
      Stainless Steel Evaporator
    • V-Shaped Condenser
      V-Shaped Condenser
    • Cylindrical Water Tank
      Cylindrical Water Tank
    • Low-Noise Fan
      Low-Noise Fan
    • Touch-Screen Controller
      Touch-Screen Controller
    • Advanced Control System
      Advanced Control System
Multiple Safety Features
    • Over-Temperature Protection
      Over-Temperature Protection
    • Current Protection
      Current Protection
    • Self-Diagnosis
      Self-Diagnosis
    • Intelligent Antifreeze
      Intelligent Antifreeze
    • Water Flow Alarm
      Water Flow Alarm
    • Water Level Alarm
      Water Level Alarm
    • Pressure Alarm
      Pressure Alarm
    • Timer On/Off
      Timer On/Off
Precision Manufacturing
    • Precision Sheet Metal Forming
      Precision Sheet Metal Forming
    • Stamped Flow Guide Rings
      Stamped Flow Guide Rings
    • Robotic Bending System (Bystronic, Switzerland)
      Robotic Bending System (Bystronic, Switzerland)
    • Laser Welding Technology
      Laser Welding Technology
    • Automated Insulation Material Cutting
      Automated Insulation Material Cutting
    • Automated Joint Welding
      Automated Joint Welding

With over 20 years of experience in the industrial cooling industry, KANSA designs and manufactures a variety of industrial chillers and process temperature control equipment in-house to ensure consistent quality, reliable operation and exceptional temperature stability of ±0.05°C. The company holds CE, ISO9001-2016, ISO45001 and other international certifications, serving more than 70,000 customers worldwide.
